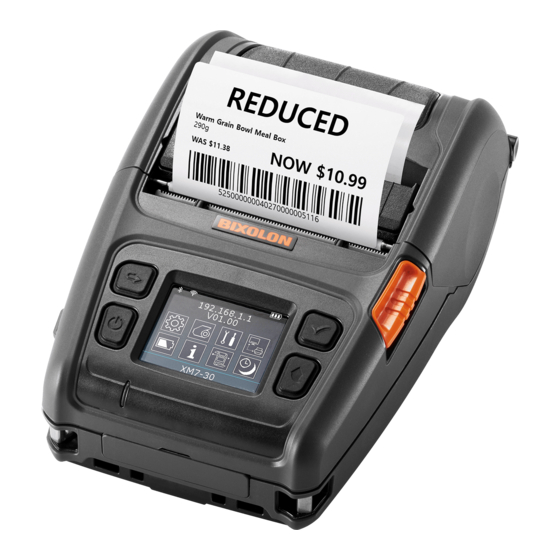

BIXOLON XM7-30 Connection Manual

Hide thumbs Also See for XM7-30:

Advertisement

Quick Links

Download this manual
Wi-Fi Connection Manual
XM7-30
Ver. 1.00
http://www.bixolon.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the XM7-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON XM7-30

Summary of Contents for BIXOLON XM7-30

  • Page 1 Wi-Fi Connection Manual XM7-30 Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    Wi-Fi Connection Manual Table of Contents Copyright ........................3 1. Manual Information ....................4 2. Precautions ....................... 4 3. How to Connect ......................5 3-1 Android Soft AP mode (default) .................. 8 3-2 iOS Soft AP mode (default) ..................9 3-2 How to change infrastructure mode ................10 4.

  • Page 3: Copyright

    This user manual and all property of the product are protected under copyright law. It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd.

  • Page 4: Manual Information

    Wi-Fi Connection Manual 1. Manual Information This WLAN manual provides information on the connection of wireless network with the mobile printer. 2. Precautions 1) The printer has to be within 100m(Out door) from AP(Access point) to connect WLAN. Although 35m is able to communicate in door, WLAN could be affected by environment to be shorten.

  • Page 5: How To Connect

    Wi-Fi Connection Manual 3. How to Connect WLAN can be configured through the printer’s WLAN interface. Likewise, WLAN can also be configured though the printer’s Serial/USB interfaces. (1) Connecting Printer 1) Serial / USB cable Connect Serial/USB cable to Printer, PC device. When Serial cable use, baudrate between Device and printer should be the same.
  • Page 6 Wi-Fi Connection Manual In order to configure the network between the wireless host device and the printer, set the printer to Soft AP Mode. Soft AP mode Ver.1.00 - 6 -...
  • Page 7 Wi-Fi Connection Manual (2) Checking Network Setting Self-test Power FEED While the printer is turned off, turn on the printer while pressing the feed button. The printer setting values will then be printed. Ver.1.00 - 7 -...

  • Page 8: Android Soft Ap Mode (Default)

    Wi-Fi Connection Manual 3-1 Android Soft AP mode (default) 1) Select “Wi-Fi”. 2) Select the printer to connect 3) Select “CONNECT”. 4) Wi-Fi communication is available Ver.1.00 - 8 -...

  • Page 9: Ios Soft Ap Mode (Default)

    Wi-Fi Connection Manual 3-2 iOS Soft AP mode (default) 1) Select “Wi-Fi”. 2) Wi-Fi ON and Select the printer to connect 3) Wi-Fi communication is available Ver.1.00 - 9 -...

  • Page 10: How To Change Infrastructure Mode

    Wi-Fi Connection Manual 3-2 How to change infrastructure mode 1) Enter the IP address of the printer in the address bar, and the following login window will pop up. Enter the ID and Password set for the printer, and then click [LOG IN] (Default User Name: admin, Password: password) 2) Select “Wireless”...
  • Page 11 Wi-Fi Connection Manual 3) Select “infrastructure”, and set SSID, WLAN Security Type. 4) Reboot the Printer. Ver.1.00 - 11 -...

  • Page 12: Factory Reset

    Wi-Fi Connection Manual 4. Factory Reset This function changes the WLAN settings of the printer to the initial factory settings. Method Select the wireless interface on the printer's LCD screen. WLAN Factory reset is available in Interface > WLAN > WLAN Factory Reset When the printer is turned off, the wireless LAN setting is applied as the factory default Factory Reset Values Printer Name...
  • Page 13 Wi-Fi Connection Manual Specification Feature Implementation Operation Mode Infrastructure, Soft AP, Ad-hoc, Wi-Fi Direct Wireless Standard IEEE 802.11a/b/g/n Range Up to 100m free space (Outdoor) WEP64/128 WPA1/2 – PSK Security WPA 1/2 – Enterprise (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST) Management WLAN Configuration tool, HTTP, Smart connection APP Ver.1.00 - 13 -...
  • Page 14 Wi-Fi Connection Manual Revision History Rev. Date Description 1.00 2023-01-09 Ver.1.00 - 14 -...
