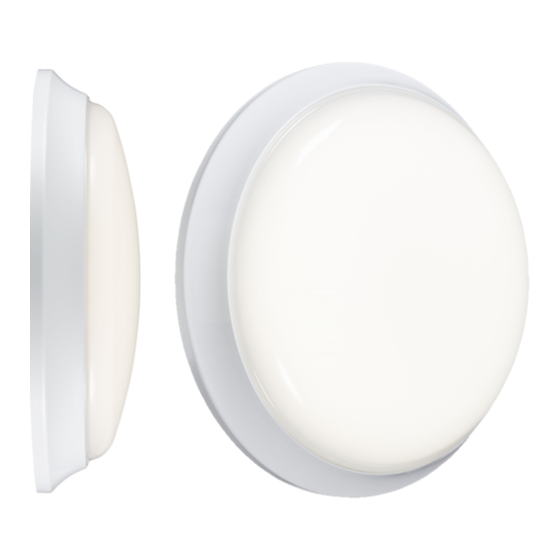

- Page 1 INSTALLATION & MAINTENANCE MANUAL BL12ALEDEM / BL20ALEDEM...
- Page 2 These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: BL12ALEDEM / BL20ALEDEM SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 INSTALLATION Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with the manufacturer of the sensors that they are compatible with LED luminaires. • Provide power to the required point of installation (refer to BS7671 for correct cabling methods).
- Page 4 • Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas/water pipes or electrical cables • Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate to the surface •...
- Page 5 WARNING This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing. Irreparable damage will occur if this instruction is not followed. GENERAL This product contains a light source of energy efficiency class E to Regulation (EU) No. 2019/2015 and (UK) 2021 No.
- Page 6 WARRANTY This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this product in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement.
- Page 7 TEST RECORD SHEET SIGNED DATE INITIAL COMMISSIONING 3 HOUR TEST FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR MONTH TEST SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL...
- Page 8 Supplied By: (UK) Manufacturer ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road, Dunstable LU5 4LT, www.mlaccessories.co.uk (EU) Authorised Representative nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547 Düsseldorf, Germany Email: eprel@nnuks.com °C AKAPR22_V1...
