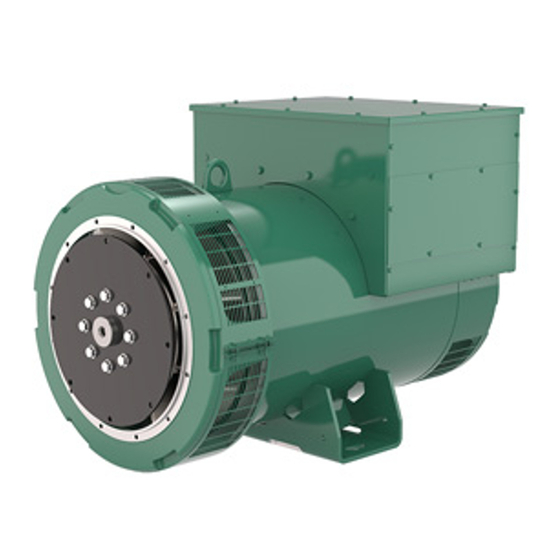

Leroy-Somer LSA 47.2 Installation And Maintenance Manual
4 poles alternators
Hide thumbs
Also See for LSA 47.2:
- Installation and maintenance manual (24 pages) ,
- Installation and maintenance manual (20 pages)
Related Manuals for Leroy-Somer LSA 47.2
Summary of Contents for Leroy-Somer LSA 47.2
- Page 1 Users guide and maintenance manual Leroy Somer Alternators LSA 47.2 – 4 POLES SHUNT - AREP - PMG Réf. constructeur : Réf. GPAO : 33522060501 ind1 3742en-04.2003/a...
- Page 2 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS Installation and maintenance...
- Page 3 Warning symbol for general danger to personnel. Warning symbol for electrical danger to personnel. Note: LEROY-SOMER reserves the right to modify the Copyright 2003: LEROY-SOMER characteristics of its products at any time in order to This document is the property of: incorporate the latest technological developments.
-
Page 4: Table Of Contents
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS CONTENTS 1 - RECEIPT 5 - SPARE PARTS 1.1 - Standards and safety measures ..... 4 5.1 - First maintenance parts ......... 24 1.2 - Inspection ............4 5.2 - Technical support service ...... -
Page 5: Receipt
The machine name is defined according to various criteria, for - the recommendations of the example: LSA 47.2 M7 C6/4 - International Electrotechnical Commission • LSA: name used in the PARTNER range IEC 34-1, (EN 60034). -
Page 6: Technical Characteristics
- Steel frame 2.1 - Electrical characteristics - Cast iron end shields The LSA 47.2 alternator is a machine without sliprings or - Protected ball bearings, greased for life revolving armature brushes, wound as “2/3 pitch”, 6 or - Mounting arrangements:... -
Page 7: Shunt Excitation System
60 Hz 2.3.3 - Additional functions with the R 448 As an option, the LSA 47.2 SHUNT alternator can work with 2.3.1 - R 230 AVR the R 448 AVR in order to obtain the following functions: - Parallel operation between alternators with C.T. -
Page 8: Arep/Pmg Excitation System
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS TECHNICAL CHARACTERISTICS 2.4 - AREP/PMG excitation system adjustable via potentiometer P4 - max. excitation current adjustment via P5: 4 to 10A For both AREP & PMG excitation systems, the alternator - 50/60 Hz selection via ST3 jumper voltage regulator is the R 448. - Page 9 LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS TECHNICAL CHARACTERISTICS PMG excitation Voltage R448 Transient voltage drop (U/f) 2.4.3 - Frequency compared with voltage (without LAM) Frequency Voltage Bend Max. speed drop 57.5 Hz...
-
Page 10: Installation
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION 3 - INSTALLATION 3.1.3 - Location Ensure that the ambient temperature in the room where the 3.1 - Assembly alternator is placed cannot exceed 40°C for standard power ratings (for temperatures >... -
Page 11: Terminal Connection Diagrams
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION 3.3 - Terminal connection diagrams To modify the connection, change the position of the stator cables on the terminals. The winding code is specified on the nameplate. - Page 12 LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION 3.3.2 - Terminal connection: 6 wire (not possible with the R 230) Connection codes Voltage L.L Factory connection L1(U) 50 Hz 60 Hz...
-
Page 13: Commissioning
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION Current transformer connection D connection D & A connection - PH 1 In/2 - Secondary 1 A In/2 (D conn.) - Secondary 1 A... -
Page 14: Setting Up
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION 3.5 - Setting up 3.5.2 - R 448 settings SHUNT, AREP or PMG excitation system WARNING ARNING Before any intervention on the AVR, make sure that the... - Page 15 LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION f) Turn the stability potentiometer P3 anti-clockwise to 2 3.5.3 - Max. excitation setting (excitation marks away from the central position. ceiling) g) Start the engine and set its speed to a frequency of 48 Hz Max.
- Page 16 LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS INSTALLATION 3.5.4 - Special type of use - Field weakening AREP / PMG The exciter is switched off by disconnecting the AVR power supply (1 wire on each auxiliary winding); contact rating: 16 A - 250V A.C.
-
Page 17: Servicing - Maintenance
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS SERVICING - MAINTENANCE 4 - SERVICING - MAINTENANCE 4.2.4 - Electrical servicing Cleaning product for the windings 4.1 - Safety measures WARNING ARNING Do not use: trichlorethylene, perchlorethylene, Servicing or troubleshooting must be carried out trichloroethane or any alkaline products. -
Page 18: Fault Detection
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS SERVICING - MAINTENANCE 4.3 - Fault detection If, when commissioned, the alternator does not work normally, the source of the malfunction must be identified. -
Page 19: Electrical Faults
LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS SERVICING - MAINTENANCE 4.5 - Electrical faults Fault Action Effect Check/Cause The alternator builds up and its voltage is still correct when the - Lack of residual magnetism battery is removed. - Page 20 LEROY-SOMER INSTALLATION AND MAINTENANCE 3742 en - 04.2003 / a LSA 47.2 - 4 POLES ALTERNATORS SERVICING - MAINTENANCE 4.5.1 - Checking the winding Assembly A: Connect a 12 V battery in series with a rheostat of approximately 50 ohms - 300 W and a diode on both exciter You can check the winding insulation by performing a high field wires (5+) and (6-).
