the percentage of network time used for the commands from each station plus the percentage
of network time used by responses to those commands, to identify the stations creating the
most network traffic

the amount of network time used by each station in sending responses to other stations, to
identify heavily loaded stations
Refer to page 44 for details.
You use the web interface to send various configuration files to the AN-X and to retrieve them, and to
update the AN-X firmware.
A jabber inhibit timer is implemented in the module's hardware. If the network transmitter is on
longer than 150% of the longest network frame time, the transmitter is forced off and the module is
placed into a safe fatal failure state.

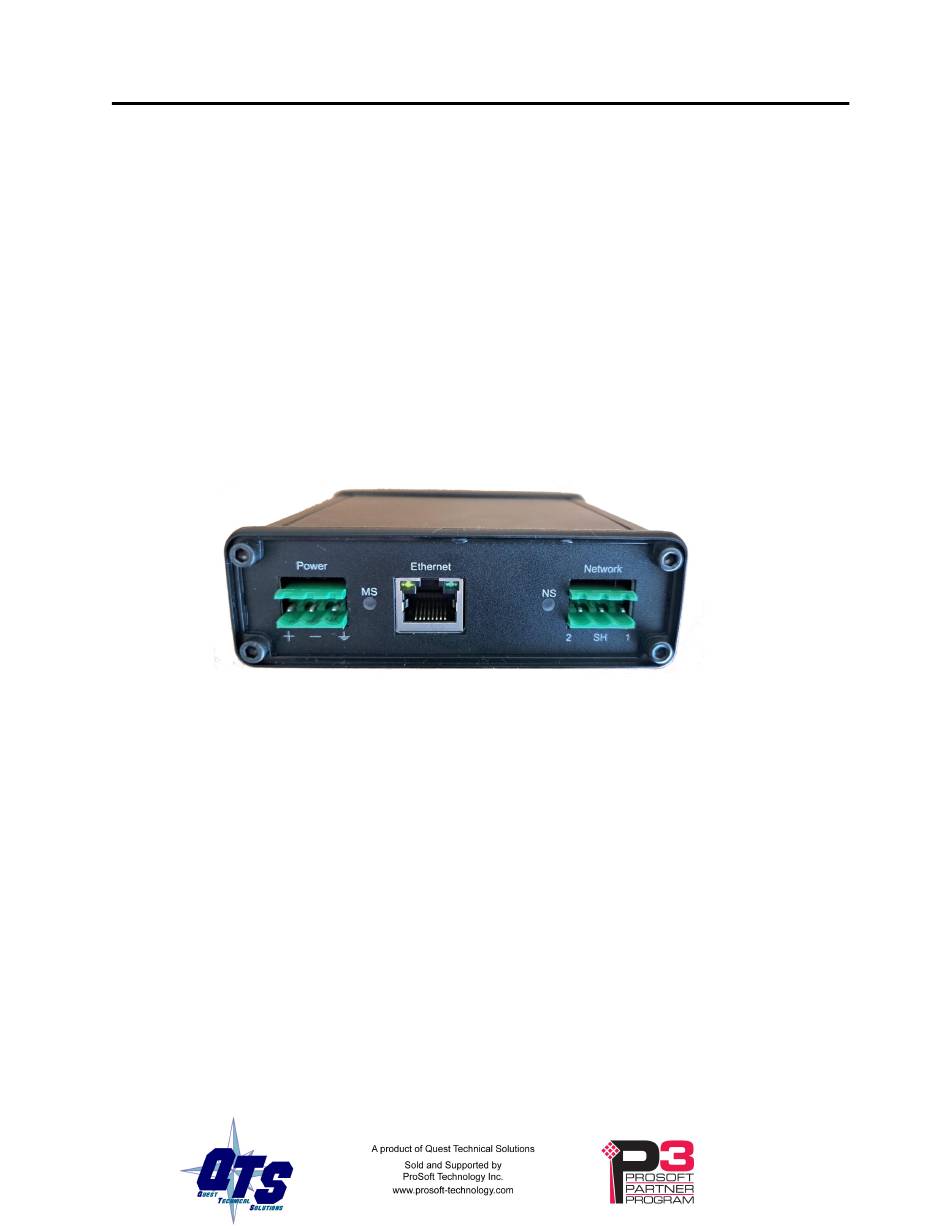

Hardware Features

The module has:
•
LEDs to indicate the status of the connection to the Ethernet, its own internal state, and the
state of the connection to the Data Highway Plus network
• an Ethernet connector
• a 3-pin Phoenix connector to connect to the Data Highway Plus network
• a power connector
• a microSD card for storage of configuration data and firmware
The pinouts on the power and the Data Highway Plus connectors match those on the AN-X2.
Cables for the AN-X2 can be connected to the AN-X4 without change, though they may need to
be rotated 180 degrees.
AN-X4-AB-DHRIO (DH+)
