Using The Web Interface; Data Highway Plus Configuration - ProSoft Technology AN-X4-AB-DHRIO User Manual

The AN-X module contains a webserver capable of communicating with standard web browsers.
Use the web interface to:
•
set the Data Highway Plus station number, baud rate, and token bytes
• monitor Data Highway Plus diagnostic counters and the active station list
•
view AN-X logs, including the Data Highway Plus traffic logs
• configure the Ethernet settings
•
upload, select and remove firmware files on the AN-X
• configure aliases and routing
•
archive the AN-X configuration
• update the AN-X firmware
•
reboot the AN-X
It also contains contact information for support.

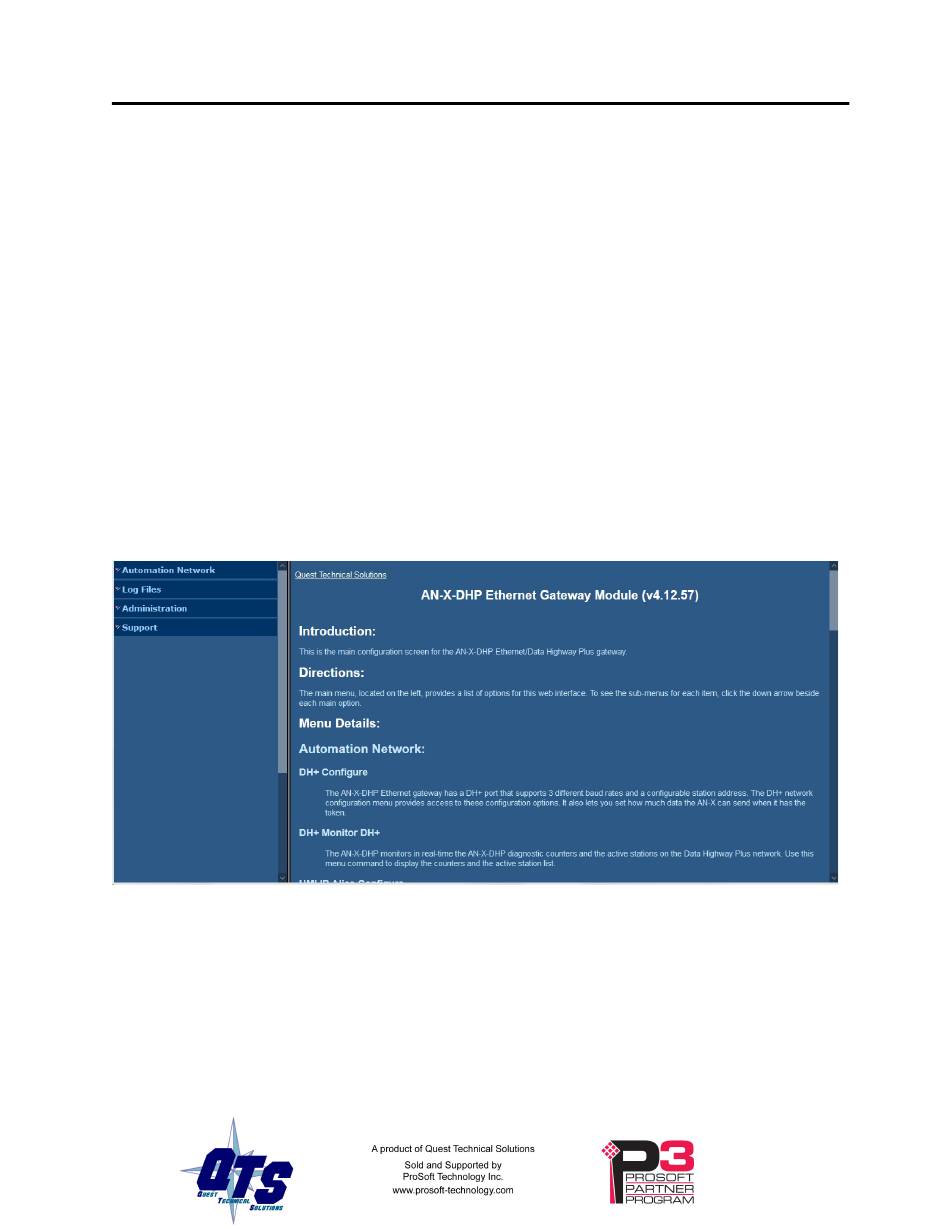

To access the web interface, start your web browser and type the AN-X IP address where you
normally enter web addresses in the browser.
The left pane contains commands. Click on the arrows at the left of the main headings to expand
or contract the sections.
The contents of the right pane depend on the current command being executed.

Data Highway Plus Configuration

Refer to page 16 for detailed information on Data Highway Plus configuration.
To configure the AN-X on Data Highway Plus:
