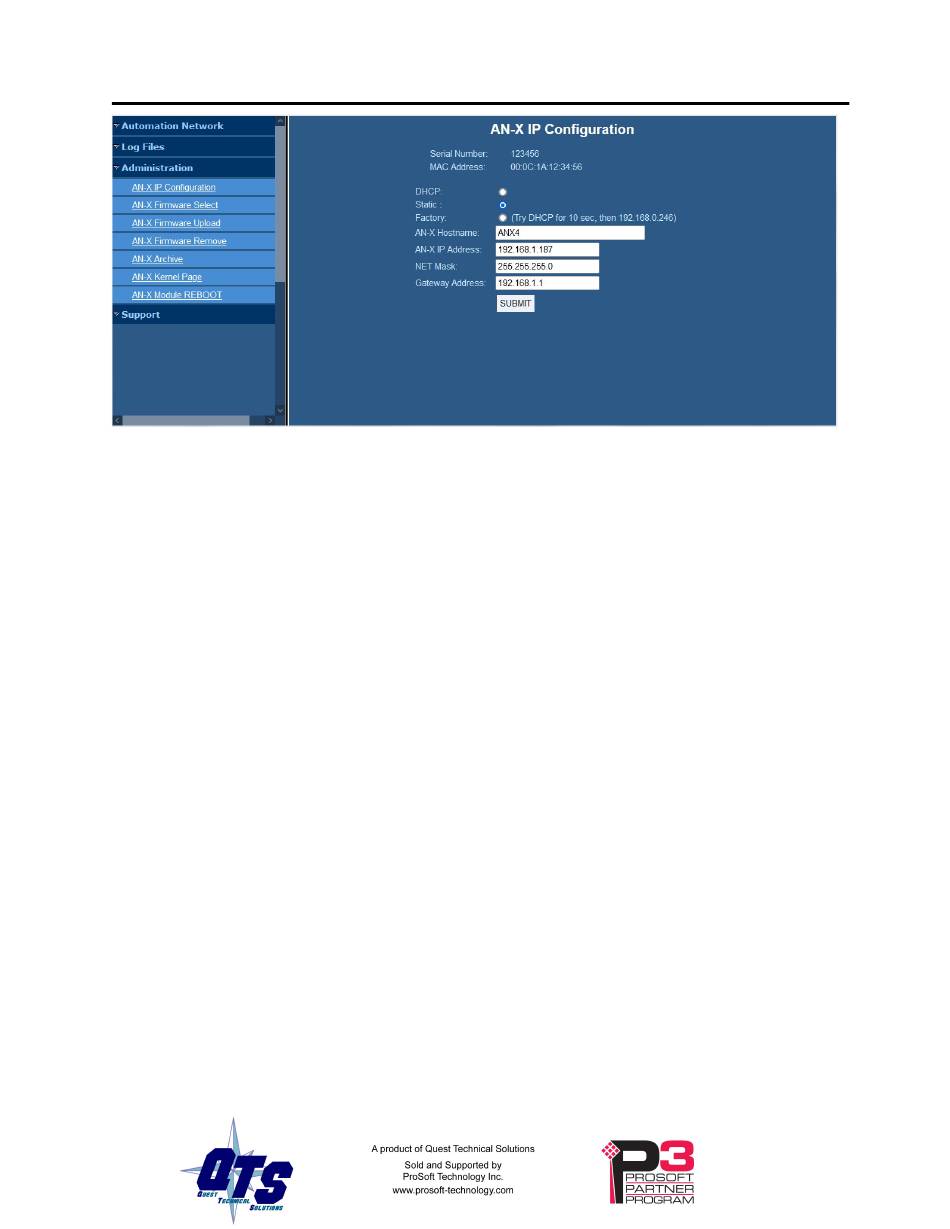

At the top the screen shows the serial number and MAC address of the AN-X being configured.
Check either DHCP or Static.

DHCP

If the AN-X4 finds a DHCP server on the network, it obtains an IP address and other network
parameters (netmask and default gateway) from the DHCP server.
To find the address assigned, look at the DHCP server or use a network tool that displays devices on
the network.
If the AN-X has been configured for DHCP and it does not find a DHCP server, it waits forever for a
DHCP server and repeatedly flashes the MS LED yellow 2 times followed by a pause. The NS LED
will be solid red.

Static IP Address

If you select static IP address, enter:
•
the IP address for the AN-X.
• the netmask for the AN-X
•
the default gateway for your network.
You must enter a valid default gateway address even if there is no device at the gateway address on
the network.

Factory Default Setting

The AN-X is shipped with a factory default setting that looks for a DHCP server for 10 seconds, then
reverts to an IP address of 192.168.0.246. Note that if the AN-X is later able to obtain an IP address
from a DHCP server, it will take the DHCP assigned address.

Hostname

Enter a Hostname for the AN-X4. This name is used internally by AN-X and may be used to identify
the AN-X if you have a DNS server on your network. The name can be from 1 to 30 characters long.
