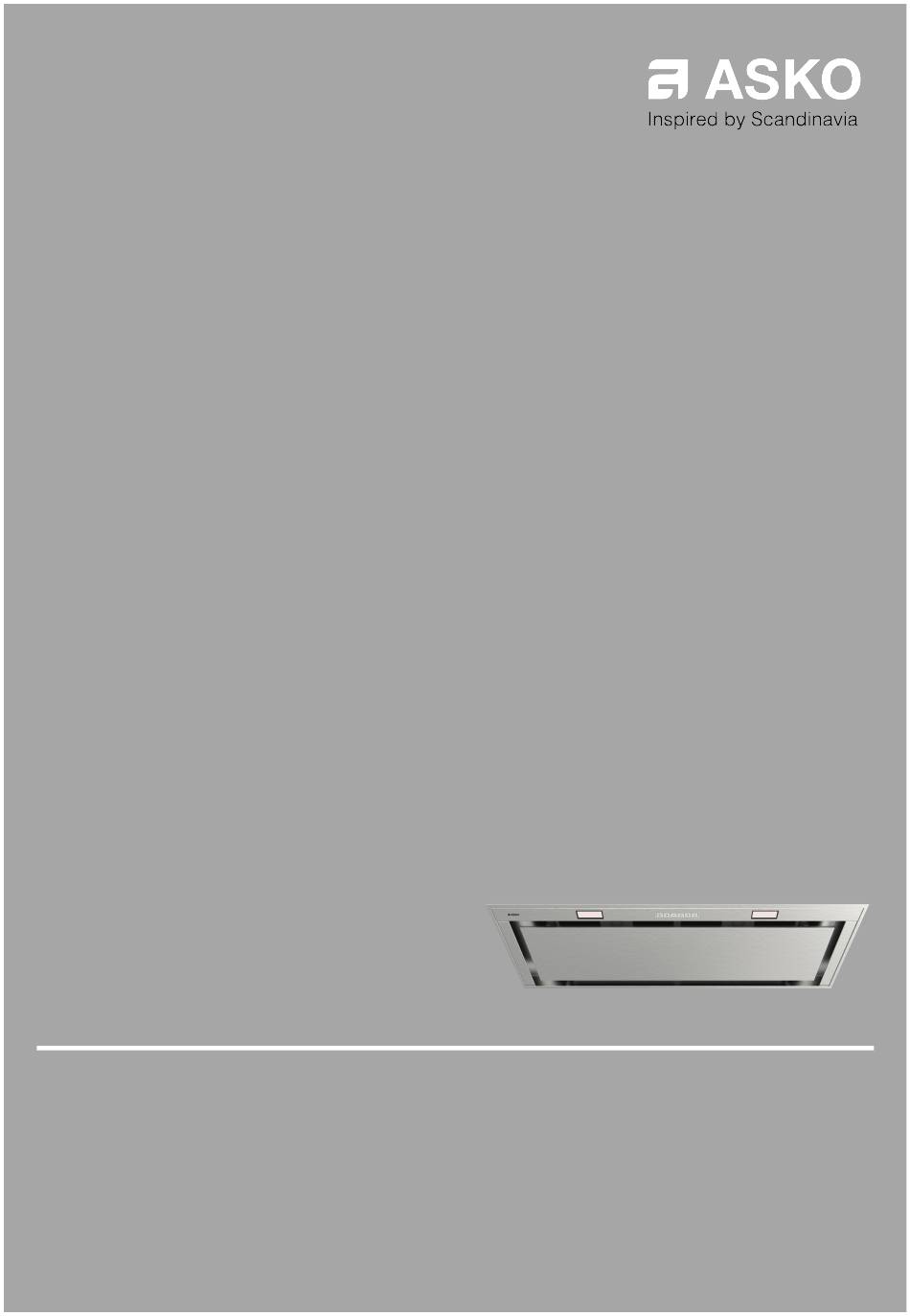

INSTRUCTIONS FOR USE
Cooker hood
EN
CBB761S
CBB861S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBB861S and is the answer not in the manual?

Questions and answers

Related Manuals for Asko CBB861S

Summary of Contents for Asko CBB861S

  • Page 1 INSTRUCTIONS FOR USE CBB761S Cooker hood CBB861S...

  • Page 2: Table Of Contents

    Contents Use .............. Switching on the timer ......... Introduction ..........Switching on recirculation mode ....Description hood ......... Switching off recirculation mode ....Description button control ......Clean Air function ........Operation ............ Switching the light on and off ...... Switching extraction on and off ....

  • Page 3: Use

    -5.2 dBm EIRP average (calculated) Maximum antenna gain -7 dBi Hereby, ASKO Appliances AB declares that the radio equipment type Cooker hood (Ceiling unit) is in compliance with Directive 2014/53/EU. The following symbols are used throughout the manual and they have the following meanings:...

  • Page 4: Description Hood

    Description hood 1. Button Control 2. LED spot 3. Edge extraction panel 4. Grease filter 5. Magnet Description button control 1. Filter reset button, signals when filters require cleaning 2. Filter indicator 3. Lighting button, switches on/off and dims the lighting 4.

  • Page 5: Operation

    Operation Switching extraction on and off 1. Press the ‘+ button. The cooker hood will switch on at the lowest setting. 2. Press the ‘+ button again for a higher fan setting. Press and hold the ‘+ button for 1 second to select the highest setting (boost).

  • Page 6: Switching On Recirculation Mode

    Operation TIP! The cooker hood can be used in extraction mode or recirculation mode. The air extraction capacity is adapted to the selected mode. The hood will start up in the default extraction mode. Is has to be reset for recirculation mode. With an RMS kit (recirculation modification set) the air will first be cleaned by the grease filters and then odours will be filtered by the charcoal filter.

  • Page 7: Switching The Light On And Off

    Operation Switching the light on and off 1. Quickly press and release the light button. The light switches on at maximum strength. 2. Press and hold the lighting button to set the lighting strength. 3. To turn off the light, quickly press and release the light button while the light is on. The lighting changes from maximum to minimum strength and vice versa.

  • Page 8: Remote Control

    Remote control Description remote control NOTE! The remote control is available as an accessory for this cooker hood and is not included with this appliance. 1. Timer function 2. Increase light intensity 3. Colder light temperature 4. Decrease light intensity 5.

  • Page 9: Switching Extraction On And Off

    Remote control Switching extraction on and off 1. Press and hold the ‘Fan key on the remote for 1 second. The cooker hood will switch on at the lowest setting. 2. Press the ‘+ key again for a higher fan setting. Press and hold the ‘+ key for 1 second to select the highest setting (boost).

  • Page 10: Switching On Recirculation Mode

    Remote control TIP! The cooker hood can be used in extraction mode or recirculation mode. The air extraction capacity is adapted to the selected mode. The hood will start up in the default extraction mode. Is has to be reset for recirculation mode. With an RMS kit (Recirculation modification set) the air will first be cleaned by the grease filters and then odours will be filtered by the charcoal filter.

  • Page 11: Switching The Light On And Off

    Remote control Switching the light on and off 1. Press and hold the light key for 1 second. The light switches on at maximum strength. 2. Press and hold the ‘increase light or ‘decrease light key to set the lighting intensity. 3.

  • Page 12: Maintenance

    Maintenance Cleaning WARNING! Important! For all maintenance, first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least as often as the grease filter). Do not use abrasive cleaning products.
  • Page 13 Maintenance Removing cassette filter 1. Switch off the motor and lighting. 2. Pull the edge extraction panel carefully out of the magnetic seal. Tilt the edge extraction panel downwards. 3. Open the filter s access latch. Support the filter with your hand. 4.

  • Page 14: Filter Indicator

    Maintenance Active carbon filters The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine). Do not use washing detergent. Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 40 minutes at a maximum temperature of 70 °C.

  • Page 15: Battery Of The Remote

    Maintenance Battery of the remote TIP! When the batteries are replaced the pairing connection will remain. Replace the batteries in time, as the receiving distance will be shortened if the voltage of the battery is too low. Don t forget to remove the batteries if you don t use the remote for a long time. Don t leave the remote lying upside down on a conductive surface.

  • Page 16: Technical Data

    Technical data EU Product Sheet Data determined according to: Standard EN61591 and Commission Regulations (EU) no. 65/2014 and (EU) no. 66/2014. CBB761S CBB861S Trademark ASKO ASKO Type of model BU70BA-ADC01 BU90BA-ADC01 Annual Energy Consumption (AEC ) [kWh/a] 36.1 36.8 hood...

  • Page 17: Eu Product Fiche

    Technical data EU Product Fiche CBB761S CBB861S Time increase factor (f) Energy Efficiency Index (EEI hood Measured air flow rate at best efficiency point ) [m Measured air pressure at best efficiency point Measured electric power input at best efficiency...

  • Page 18: Environmental Aspects

    Environmental aspects Tips for energy-efficient cooking with hoods • Use a low extractor setting and use the highest setting (boost) if necessary. • A well-ventilated kitchen makes the range hood more efficient. • Clean filters regularly and replace filters when needed to keep the filter efficiency high, as a saturated filter cannot perform and leads to longer usage times.
  • Page 19 843799 We reserve the right to make changes.
