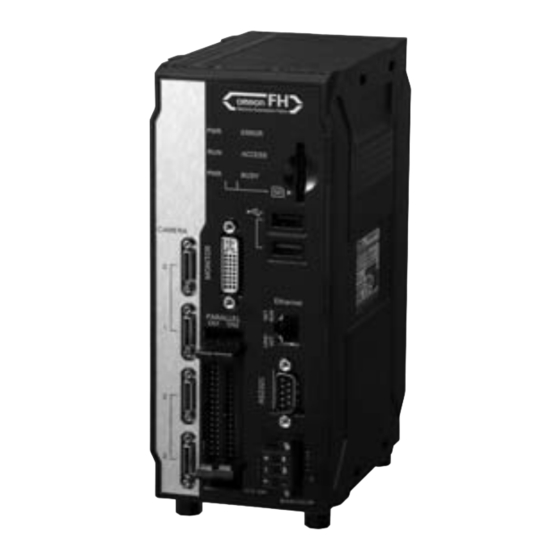

Omron FH-L550 Series Manual
  1. Manuals
  2. Brands
  3. Omron Manuals
  4. Machine Vision Systems
  5. FH-L550
  6. Manual

Omron FH-L550 Series Manual

Hide thumbs Also See for FH-L550 Series:
Table of Contents

Advertisement

Quick Links

Vision System
FH-L550 Series
Lite Controller
• Software for flexible automation
• Design interface for quick setup
System configuration
PLC for I/O control
Ethernet Cables *
(4)
Lights
Lighting Controllers
External Lightings
(2)
Cameras
* To use STP (shielded twisted-pair) cable of category 5 or higher for Ethernet and RJ45 connector.
Personal
computer
Industrial Switching Hubs for
EtherNet/IP and Ethernet
(1)
Vision System
FH Sensor Controllers
special cable for I/O
(3)
special cable for cameras
special cable for Touch Panel Monitor
cable tor Touch Panel interface
(5)
Touch Panel Monitor
Trigger input
PLC for I/O control
sensor
FH-MT12
Lighting Controllers
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FH-L550 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Omron FH-L550 Series

Summary of Contents for Omron FH-L550 Series

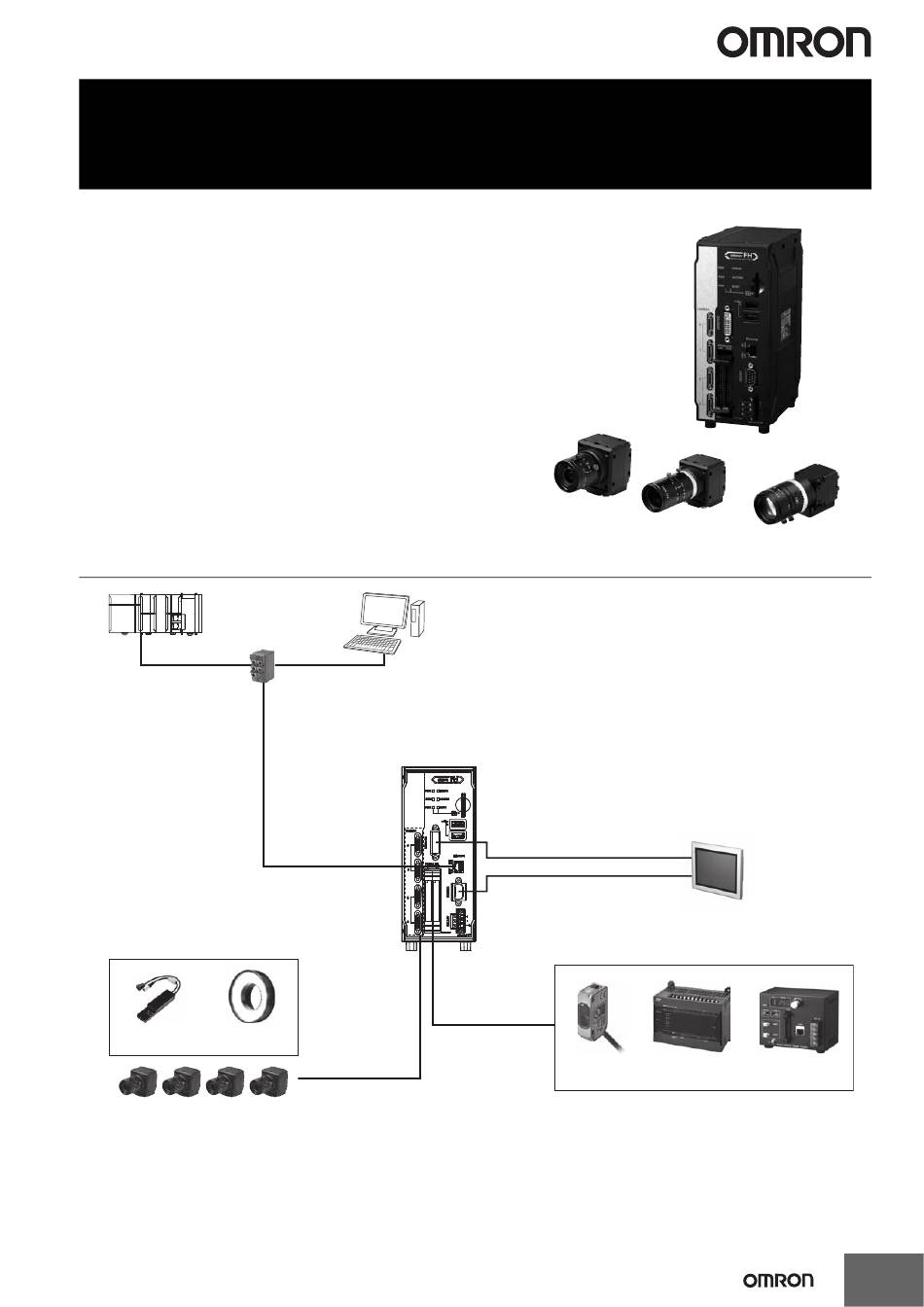

  • Page 1 Vision System FH-L550 Series Lite Controller • Software for flexible automation • Design interface for quick setup System configuration PLC for I/O control Personal computer Industrial Switching Hubs for EtherNet/IP and Ethernet Vision System Ethernet Cables * FH Sensor Controllers...

  • Page 2: Ordering Information

    FH-L550 Series Ordering Information FH Series Sensor Controllers AI function No. of Item Output Model AI Scratch cameras AI FineMatching Detect Filter NPN/PNP FH-L550 Intel ® Atom ® Box-type controllers Not available Not available processor 2 cores NPN/PNP FH-L550-10 Cameras...
  • Page 3 FH-L550 Series Model SM02 SC02 SM04 SC04 SM12 SC12 SMX05 SCX05 SMX12 SCX12 High Speed 4.6 ms 8.5 ms 25.7 ms 10.3 ms 24.9 ms Mode *6 2 Cables Standard Image 9.7 ms 17.9 ms 51.3 ms 22.1 ms 53.5 ms...
  • Page 4 FH-L550 Series Cameras / Cables Connection Table High-speed Digital CMOS cameras 300,000-pixel 2 million-pixel 4 million-pixel 12 million-pixel Cable FH-SM/SC FH-SM02/SC02 FH-SM04/SC04 FH-SM12/SC12 Camera Cables Model length High speed mode Standard mode High speed mode Standard mode High speed mode...
  • Page 5 FH-L550 Series Small digital CCD cameras Intelligent Compact Pen type / flat type Digital CMOS Camera Cable Camera Cables Model length FZ-SF/SFC FZ-SQ@ FZ-SP/SPC Camera Cables FZ-VS3 Right-angle FZ-VSL3 camera cables 10 m Bend resistant camera cables FZ-VSB3 Bend resistant...

  • Page 6: Connection Configuration

    Cable length: 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m XW2Z-@@@EE *3 Connector-Terminal Block Conversion Units can be connected (Terminal Blocks Recommended Products: OMRON XW2K-34G-T) Ultra-Compact Interface Wiring System (General-Purpose) XW2K-34G-T *4 Encoder Cable for line-driver FH-VR 1.5M...
  • Page 7 *2 The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use. Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards. *3 Cables colors are available in yellow, green, and blue. *4 For details, contact your OMRON representative.

  • Page 8: Development Environment

    FH-L550 Series Cables / Connectors Item Recommended manufacturer Model Products for EtherNet/IP Hitachi Metals, Ltd. NETSTAR-C5E SAB 0.5 x 4P CP *1 Cable (1000BASE-T/100BASE-TX) KETH-SB *1 Kuramo Electric Co. Wire gauge and number of pairs: MPS588-C *1 RJ45 Connector Panduit Corporation...
  • Page 9 FH-L550 Series Accessories Item Descriptions Model 2 GB FZ-MEM2G USB Memory 16 GB FZ-MEM16G Display/USB Switcher FZ-DU Mouse Recommended Products Driverless wired mouse (A mouse that requires the mouse driver to be installed is not supported.) Industrial Switching Hubs Current consumption:...
  • Page 10 FH-L550 Series Lenses Refer to the Vision Accessory Catalog (Cat. No. Q198) for details. Recommended lens Resolution Camera Model Size of image element Vibrations and Shocks Standard Lens Telecentric Lens Resistant Lens FZ-SF/SFC FZ-LES Series FZ-SP/SPC 300,000-pixel 1/3” equivalent FZ-S/SC...
  • Page 11 FH-L550 Series Ratings and Specifications (FH Sensor Controllers) Lite Controllers Sensor Controller Series FH-L550 Series Sensor Controller Model FH-L550 FH-L550-10 Parallel IO NPN/PNP (common) Memory, Storage 4 GB RAM, 4 GB ROM Standard Double Speed Multi-input Non-stop adjustment Operation Mode...
  • Page 12 FH-L550 Series Maximum Number of Loading Images during Multi-input Max. Number of Loading Images Camera Model during Multi-input *1 Intelligent Compact Digital FZ-SQ010F/-SQ050F/-SQ100F/-SQ100N CMOS Cameras *2 0.3 million pixels FZ-S/-SC/-SF/SFC/-SH/-SHC/-SP/-SPC CCD/CMOS Cameras FH-SM/-SC 0.4 million pixels FH-SMX/-SCX CMOS Cameras 2 million pixels...
  • Page 13 FH-L550 Series Ratings and Specifications (Cameras) High-speed Digital CMOS cameras Model FH-SM FH-SC FH-SM02 FH-SC02 FH-SM04 FH-SC04 FH-SM12 FH-SC12 CMOS image elements CMOS image elements CMOS image elements CMOS image elements Image elements (1/3-inch equivalent) (2/3-inch equivalent) *1 (1-inch equivalent) (1.76-inch equivalent)
  • Page 14 FH-L550 Series Digital CCD Cameras Model FZ-S FZ-SC FZ-S2M FZ-SC2M Interline transfer reading all pixels, Interline transfer reading all pixels, Image elements CCD image elements (1/3-inch equivalent) CCD image elements (1/1.8-inch equivalent) Color/Monochrome Monochrome Color Monochrome Color 640 (H) × 480 (V) 1600 (H) ×...
  • Page 15 FH-L550 Series Intelligent Compact Digital CMOS Cameras Model FZ-SQ010F FZ-SQ050F FZ-SQ100F FZ-SQ100N Image elements CMOS color image elements (1/3-inch equivalent) Color/Monochrome Color Effective pixels 752 (H) × 480 (V) 6.0 (μm) × 6.0 (μm) Pixel size Shutter function 1/250 to 1/32,258...
  • Page 16 FH-L550 Series Ratings and Specifications (Cable, Monitor) Camera Cables Model FZ-VS3 (5 m) FZ-VSB3 (5 m) FZ-VSBX (5 m) FZ-VSL3 (5 m) FZ-VSLB3 (5 m) Bend resistant Type Standard Bend resistant Super-bend-resistant Right-angle Right-angle Shock resistiveness (durability) 10 to 150 Hz single amplitude 0.15 mm 3 directions, 8 strokes, 4 times Ambient temperature range Operation and storage: 0 to 65 °C (with no icing or condensation)

  • Page 17: Lcd Monitor

    FH-L550 Series Touch Panel Monitor Model FH-MT12 Display area 12.1 inch Resolution 1024 (V) × 768 (H) Number of color 16,700,000 colors (8 bit/color) Brightness 500cd/m (Typ) Major Function Contrast Ratio 600:1 (Typ) Viewing angle Left and right: each 80°, upward: 80°, downward: 60°...

  • Page 18: Components And Functions

    FH-L550 Series Components and Functions Lite Controllers (4-camera type) LED name Description PWR LED Lit while power is ON. ERROR LED Lit when an error has occurred. RUN LED Lit while the layout turned on output setting is displayed. ACCESS LED Blinks while the internal nonvolatile memory is accessed.
  • Page 19 FH-L550 Series Processing Items Group Icon Processing Item Group Icon Processing Item To input images from cameras. And set up the condi- Used to identify the shapes and calculate the position Camera Image Search of measurement objects. tions to input images from cameras. (For FH Sensor...
  • Page 20 FH-L550 Series Group Icon Processing Item Group Icon Processing Item Used for displaying the information about results on Conditional Used where more than two kinds of products on the Trend Monitor the monitor, facilitating to avoid NG and analyze caus- Branch production line need to detected separately.
  • Page 21 FH-L550 Series Dimensions (Unit: mm) Sensor Controllers Lite Controllers FH-L550/-L550-10 62.8 60.6 36.3 10.5 Four, M4 mounting holes with a depth of 6.5 mm 18.5 17.2 32.8 Four, M4 mounting holes with a depth of 6.5 mm 61.6...
  • Page 22 FH-L550 Series Cameras High-speed Digital CMOS Camera/Digital CMOS Camera 300,000-pixel camera 400,000-pixel camera 2 million-pixel camera 4 million-pixel camera FH-SC FH-SCX FH-SC02 FH-SC04 FH-SM02 FH-SM04 FH-SM FH-SMX 14.5 22.7 12 22.7 14.5 Four, M4 mounting holes Three, M2 mounting Four, M4 mounting with a depth of 4.0 mm...
  • Page 23 FH-L550 Series Digital CCD/CMOS Cameras 300,000-pixel camera 2 million-pixel camera FZ-S FZ-S2M FZ-SC2M FZ-SC 14.5 29 14.5 22 Three, M2 mounting holes with a depth of 3.0 mm Three, M2 mounting Three, M2 mounting holes with a depth (7.3) 46.5 holes with a depth of of 3.0 mm...
  • Page 24 FH-L550 Series Cables Camera Cable Camera Cable Bend resistant Camera Cable FZ-VS3 FZ-VSB3 (30) L (*1) (30) L (*1) (40) (40) (100) (100) 26-pin 26-pin (11) (11) rectangular connector (*2) (*2) rectangular connector Super Bend resistant Camera Cable FZ-VSBX (48)
  • Page 25 FH-L550 Series Touch Panel Monitor FH-MT12 306.52 7.74 7.74 8-M4 EFFECTIVE SCREW LENGTH6 Panel cutout dimensions (19) MOUNTING PLATE THICKNESS 1.6-4.8 37.5 Note: 1. Panel thickness: 1.6 to 4.8 mm 2. No burr allowed DVI-Analog Conversion Cable for Touch Panel Monitor/LCD Monitor...

  • Page 26: Optical Chart

    FH-L550 Series Optical Chart Meaning of Optical Chart The X axis of the optical chart Camera shows the field of vision (mm) (*1), and the Y axis of the optical chart shows the camera Extension Tube thickness: t @ (mm) installation distance (mm) (*2).
  • Page 27 FH-L550 Series High-speed Digital CMOS Camera High-speed Digital CMOS Camera 3Z4S-LE FH-S@02 FH-S@04 3Z4S-LE 2 million-pixel 4 million-pixel (Using 3Z4S-LE SV-H/VS-H1 Series) SV-10028H (Using 3Z4S-LE SV-H/VS-H1 Series) SV-10028H SV-7525H SV-7525H VS-5018H1 VS-5018H1 VS-3514H1 VS-3514H1 VS-2514H1 VS-2514H1 VS-1614H1N VS-1614H1N VS-1214H1 VS-1214H1...
  • Page 28 FH-L550 Series High-speed Digital CMOS Camera High-speed Digital CMOS Camera FH-S@X12 FH-S@X12 12 million-pixel 12 million-pixel (Using 3Z4S-LE VS-LLD Series) (Using 3Z4S-LE VS-HVA Series) 3Z4S-LE Note:The 3Z4S-LE VS-LDD Series cannot be used with an extension tube. VS-LLD50 VS-HVA1226 VS-LLD35 VS-HVA1626...
  • Page 29 FH-L550 Series Vibrations and Shocks Resistant Lenses/Telecentric Lenses High-speed Digital CMOS Camera High-speed Digital CMOS Camera FH-S@, FH-S@X Digital CCD Camera 400,000-pixel FZ-S@ (Using 3Z4S-LE VS-MCA Series) 3Z4S-LE 3Z4S-LE 300,000-pixel (Using 3Z4S-LE VS-MCA Series) VS-MCA75 VS-MCA75 VS-MCA50 VS-MCA50 VS-MCA35 VS-MCA35...
  • Page 30 FH-L550 Series High-speed Digital CMOS Camera Digital CMOS Camera FH-S@04 FH-S@05R 3Z4S-LE 4 million-pixel 5 million-pixel 3Z4S-LE (Using 3Z4S-LE VS-MCH1 Series) (Using 3Z4S-LE VS-MCA Series) VS-MCA75 VS-MCA50 VS-MC50H1 VS-MCA35 VS-MC35H1 VS-MCA30 VS-MCA25 VS-MC25H1 VS-MCA20 VS-MC16H1 VS-MCA15 VS-MCA10 VS-MC12H1 VS-MCA6.5 VS-MC08H1...

  • Page 31: Related Manuals

    FH Application Software FH-UMAI Version Update Tool Operating Manual • Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products. • Think&See is a trademark or registered trademark of OMRON Corporation in Japan and other countries.
  • Page 32 MEMO...

  • Page 33: Terms And Conditions Agreement

    Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments.
  • Page 34 Hoffman Estates, IL 60169 U.S.A. Tel: (31) 2356-81-300 Fax: (31) 2356-81-388 Tel: (1) 847-843-7900 Fax: (1) 847-843-7787 ©OMRON Corporation 2023 All Rights Reserved. OMRON ASIA PACIFIC PTE. LTD. OMRON (CHINA) CO., LTD. In the interest of product improvement, 438B Alexandra Road, #08-01/02 Alexandra Room 2211, Bank of China Tower, specifications are subject to change without notice.
