Mounting the Module

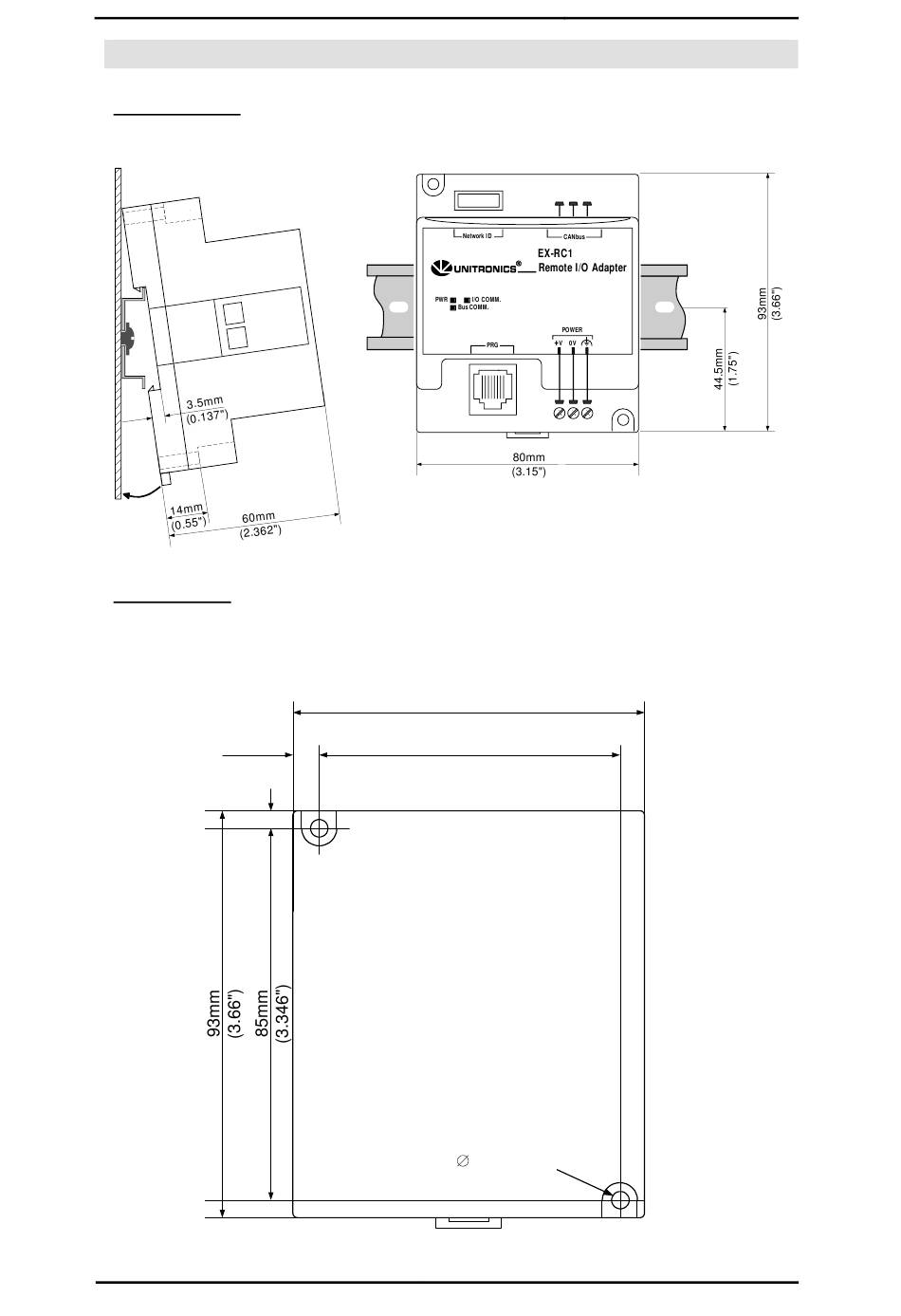

DIN-rail mounting
Snap the device onto the DIN rail as shown below; the module will be squarely situated on the DIN rail.
Screw-Mounting
The figure below is not drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
5.8mm
(0.228")
4mm
(0.16")
4
80mm
(3.15")
68.4mm
(2.693")
4mm (x2)
(0.16")
