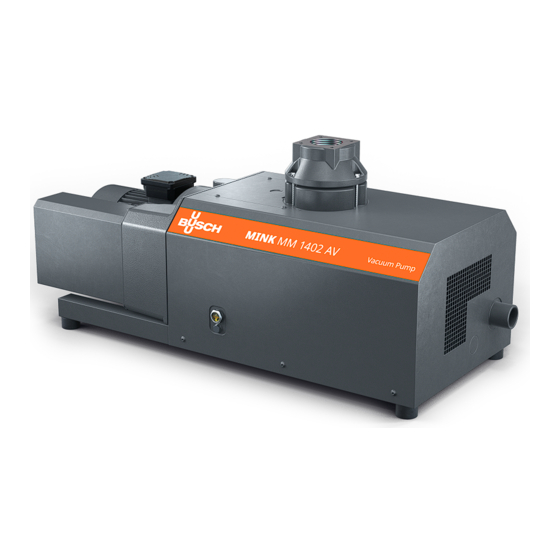

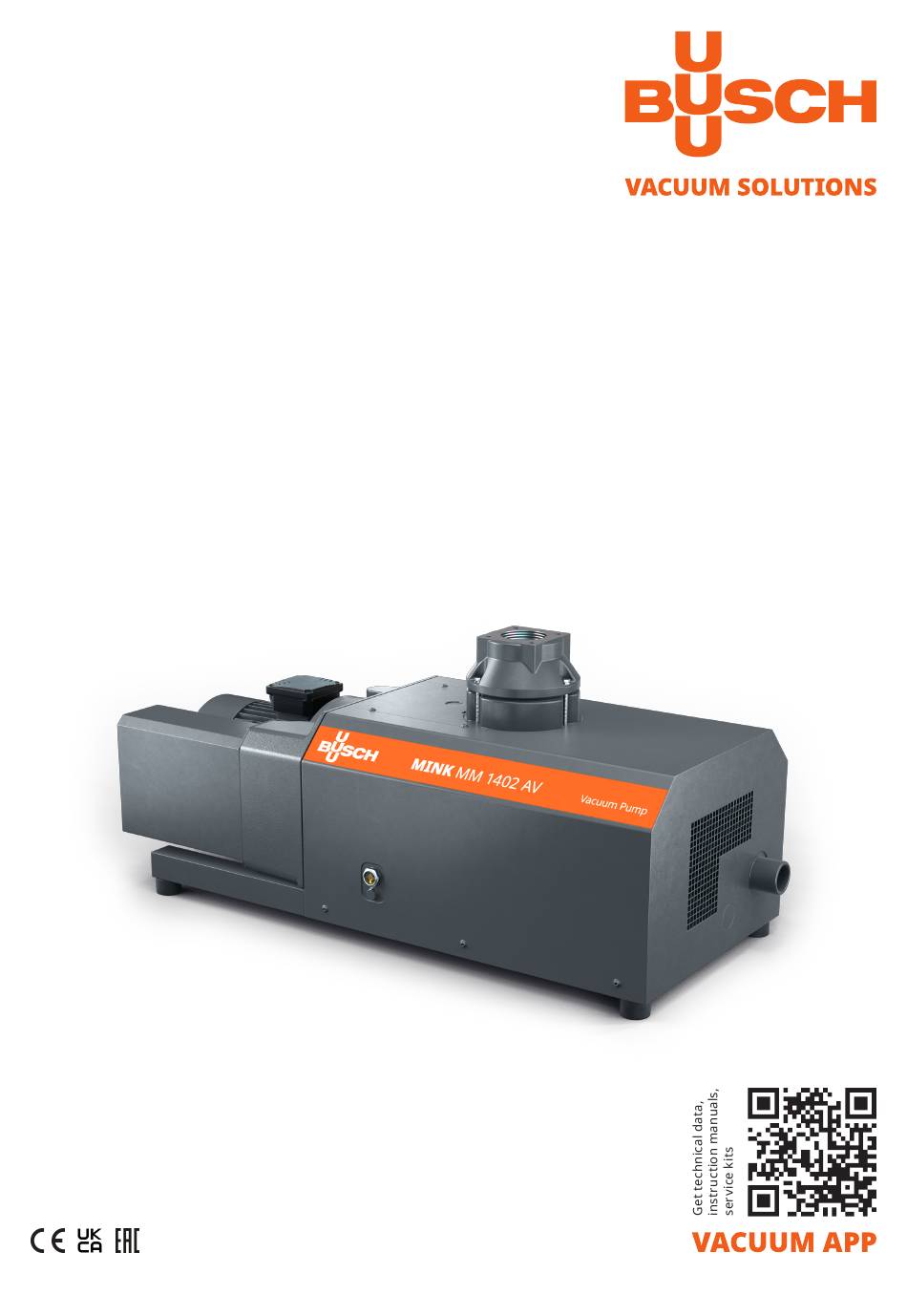

- Page 1 MINK Claw Vacuum Pumps MM 1402 AV, MM 1502 AV Instruction Manual 0870156906 | B0005_en-US | Original instructions 1/16/2023...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Intended Use ............................... Design Options ..............................2.3.1 Gas Tight Version ..........................2.3.2 Aqua Version............................Start Controls ............................... Standard Features............................... 2.5.1 Vacuum Relief Valve..........................Optional Accessories............................2.6.1 Inlet Filter ............................... 2.6.2 Condensate Drain .......................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description Description Aqua version Gas tight version Suction connection Discharge connection Oil sight glass Oil drain plug Cooling air inlet Cooling air outlet Motor terminal box Non-return valve (integrated) Eye bolt Condensate drain (optional) Pressure relief line Directional arrow Nameplate NOTE... -
Page 5: Operating Principle
Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch rep- resentative in order to take specific precautions. -
Page 6: Design Options
2 | Product Description If the machine needs to be maintained after shutdown: ● Provide an additional manual or automatic operated non-return valve in the suction line. Permitted environmental conditions, see Technical Data [➔ 29]. Design Options The design options described in the following chapters might be combined. Please refer to the nameplate (NP) to identify the corresponding design option of your machine. -
Page 7: Aqua Version
Product Description | 2 2.3.2 Aqua Version The Aqua version is a design option for conveying condensable vapors (water). This machine is specifically equipped with: – corrosion protection coating – optional condensate drain (CD) in the internal silencer. Start Controls The machine comes without start controls. -
Page 8: Transport
3 | Transport Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! ● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. ●... -
Page 9: Storage
Storage | 4 Storage ● Seal all apertures with adhesive tape or reuse provided caps. If the machine is to be stored for more than 3 months: ● Wrap the machine in a corrosion inhibiting film. ● Store the machine indoors, dry, dust free and if possible in original packaging preferably at temperatures between 0 ... -
Page 10: Installation
5 | Installation Installation Installation Conditions WARNING Gas tight version: The machine is not absolutely gas tight, possible leakages of dangerous media. Risk of poisoning! Risk of infection! ● Make sure that the ambient atmosphere of the machine is sufficiently ventilated. Closed air cooling systems are not suitable and therefore prohibited. -
Page 11: Connecting Lines / Pipes
● Busch recommends the use of the optional horizontal inlet filter and the water separator to col- lect the condensate and prevent it from flowing into the pump. -
Page 12: Suction Connection
5 | Installation 5.2.1 Suction Connection NOTICE Ingress of foreign objects or liquids. Risk of damage to the machine! If the inlet gas contains dust or other foreign solid particles: ● Install a suitable filter (5 micron or less) upstream from the machine. Connection size(s): –... -
Page 13: Filling Oil
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 29] and Oil [➔ 30]. Description 4 mm hex key The oil level should stay constant over the lifetime of the oil. -
Page 14: Electrical Connection
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 15: Wiring Diagram Three-Phase Motor
Electrical Connection | 6 NOTICE Incorrect connection. Risk of damage to the motor! ● The wiring diagrams given below are typical. Check the inside of the terminal box for motor con- nection instructions/diagrams. Wiring Diagram Three-Phase Motor NOTICE Incorrect direction of rotation. Risk of damage to the machine! ●... - Page 16 6 | Electrical Connection Delta connection, multi-voltage motor with 12 pins (middle voltage): 16 | 36 Instruction Manual MINK MM 1402-1502 AV_EN_en...
-
Page 17: Commissioning
The Aqua version is a design option for conveying condensable vapors (water). Water vapor within the gas flow is tolerated within certain limits. The conveyance of other vapors shall be agreed upon with Busch. If condensable vapors are to be conveyed: Before process: ●... -
Page 18: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 19: Maintenance Schedule
5000 operating hours. Other oils may reduce the change interval. Every 6 years ● Have a major overhaul on the machine (contact Busch). Oil Level Inspection ● Shut down the machine. ● When the machine is stopped, wait 1 minute before checking the oil level. -
Page 20: Cleaning From Dust And Dirt
(IS) Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 20 | 36 Instruction Manual MINK MM 1402-1502 AV_EN_en... - Page 21 Maintenance | 8 Description Cleaning cloth Drain pan For oil type and oil capacity see Technical Data [➔ 29] and Oil [➔ 30]. Description 4 mm hex key The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair.
-
Page 22: Pressure Relief Lines Maintenance (Gas Tight Version Only)
8 | Maintenance Pressure Relief Lines Maintenance (Gas Tight Version Only) WARNING Media potentially dangerous. Risk of poisoning! Risk of infection! ● Wear appropriate personal protective equipment in case of high concentration of the medium in the ambient atmosphere of the machine. ●... - Page 23 Maintenance | 8 ● Remove the clogging or have the machine repaired (contact Busch). Description Unscrew plugs Connect pressurized air to the pressure relief lines Air pressure max. 0.2 bar (g) Tighten plugs Description Tighten nuts Instruction Manual MINK MM 1402-1502 AV_EN_en...
-
Page 24: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 25: Decommissioning
Decommissioning | 10 Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 26: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no. -
Page 27: Troubleshooting
Troubleshooting | 12 Troubleshooting DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. Description Inlet screen Coupling... - Page 28 Tech- nical Data [➔ 29]. Oil level too low. ● Top up oil. For resolution of problems not listed in the troubleshooting table, please contact your Busch repre- sentative. 28 | 36 Instruction Manual MINK MM 1402-1502 AV_EN_en...
-
Page 29: Technical Data
Atmospheric pressure Oil capacity Weight approx. (50Hz / 60Hz) ~ 290 / 320 ~ 325 - / ~705 ~716 * In case of higher or lower temperatures, please consult your Busch representative. Instruction Manual MINK MM 1402-1502 AV_EN_en 29 | 36... -
Page 30: Oil
14 | Oil VS 150 VSB 100 ISO-VG Part number 1 L packaging 0831 164 883 0831 168 351 Part number 5 L packaging 0831 164 884 0831 168 352 Remark 1 = Single-phase motor; 2 = Three-phase motor; 3 = Standard oil for non-demanding applications; 4 = Food applications (H1); 5 = Anti-corrosion; 6 = Suitable for continuous operation;... -
Page 31: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 32: Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 33 Notes Instruction Manual MINK MM 1402-1502 AV_EN_en 33 | 36...
- Page 34 34 | 36 Instruction Manual MINK MM 1402-1502 AV_EN_en...
- Page 35 Instruction Manual MINK MM 1402-1502 AV_EN_en 35 | 36...
- Page 36 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
