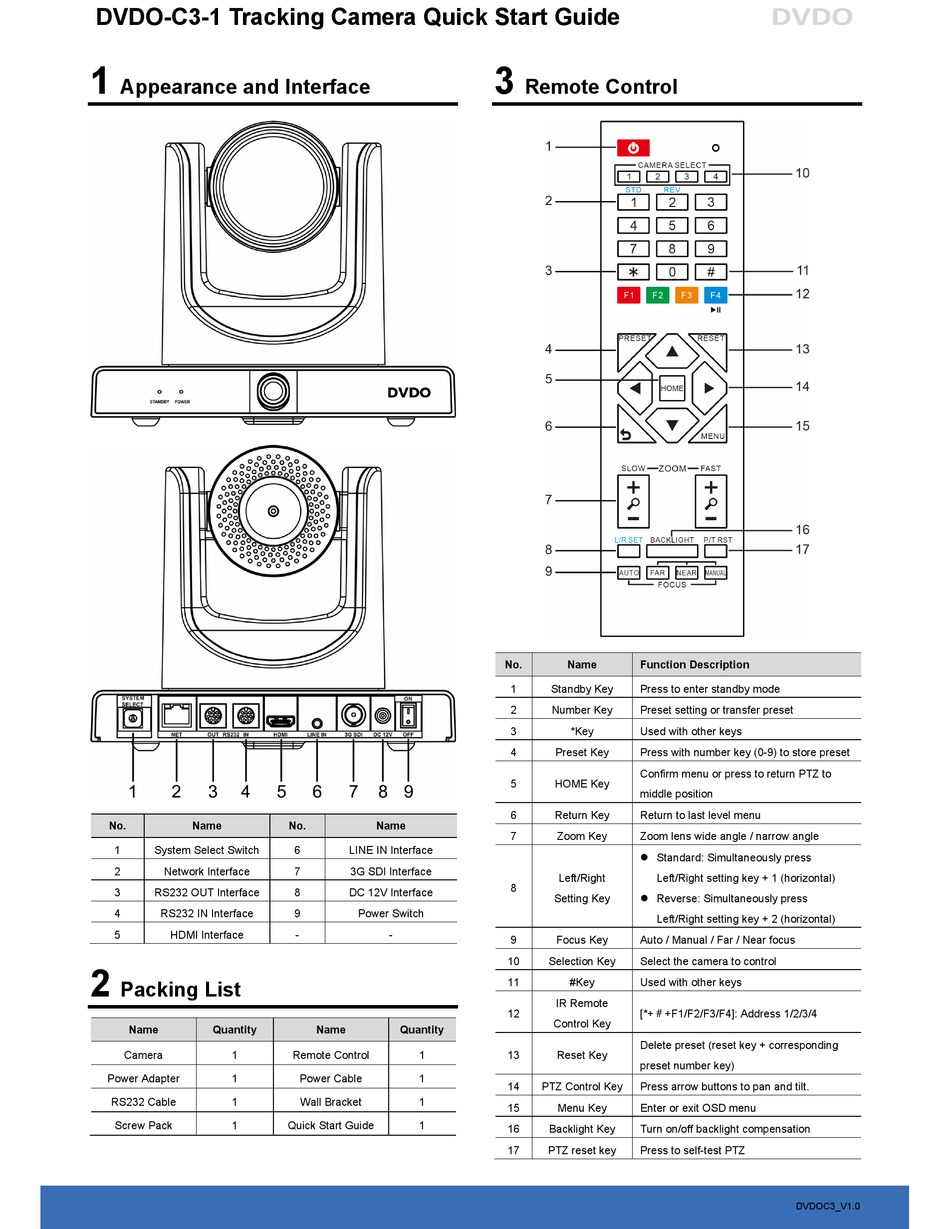

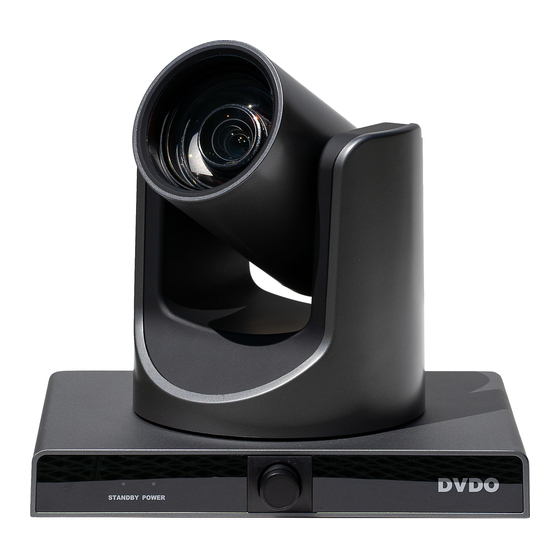

DVDO-C3-1 Tracking Camera Quick Start Guide
1
Appearance and Interface
No. Name
1 System Select Switch
2 Network Interface
3 RS232 OUT Interface
4 RS232 IN Interface
5 HDMI Interface
2
Packing List
Name Quantity
Camera 1
Power Adapter 1
RS232 Cable 1
Screw Pack 1
No. Name
6 LINE IN Interface
7 3G SDI Interface
8 DC 12V Interface
9 Power Switch
- -
Name Quantity
Remote Control 1
Power Cable 1
Wall Bracket 1
Quick Start Guide 1
3
Remote Control
No. Name Function Description
1 Standby Key Press to enter standby mode
2 Number Key Preset setting or transfer preset
3 *Key Used with other keys
4 Preset Key Press with number key (0-9) to store preset
Confirm menu or press to return PTZ to
5 HOME Key
middle position
6 Return Key Return to last level menu
7 Zoom Key Zoom lens wide angle / narrow angle
 Standard: Simultaneously press
Left/Right Left/Right setting key + 1 (horizontal)
8
Setting Key  Reverse: Simultaneously press
Left/Right setting key + 2 (horizontal)
9 Focus Key Auto / Manual / Far / Near focus
10 Selection Key Select the camera to control
11 #Key Used with other keys
IR Remote
12 [*+＃+F1/F2/F3/F4]: Address 1/2/3/4
Control Key
Delete preset (reset key + corresponding
13 Reset Key
preset number key)
14 PTZ Control Key Press arrow buttons to pan and tilt.
15 Menu Key Enter or exit OSD menu
16 Backlight Key Turn on/off backlight compensation
17 PTZ reset key Press to self-test PTZ
DVDO
DVDOC3_V1.0
