StarTech.com USB3004EXT2 Quick Start Manual

4 Port USB 3.2 Gen 1 (5Gbps) Extender over Cat6a/Cat7 - Up to 330 ft (100m)
Product ID
USB3004EXT2

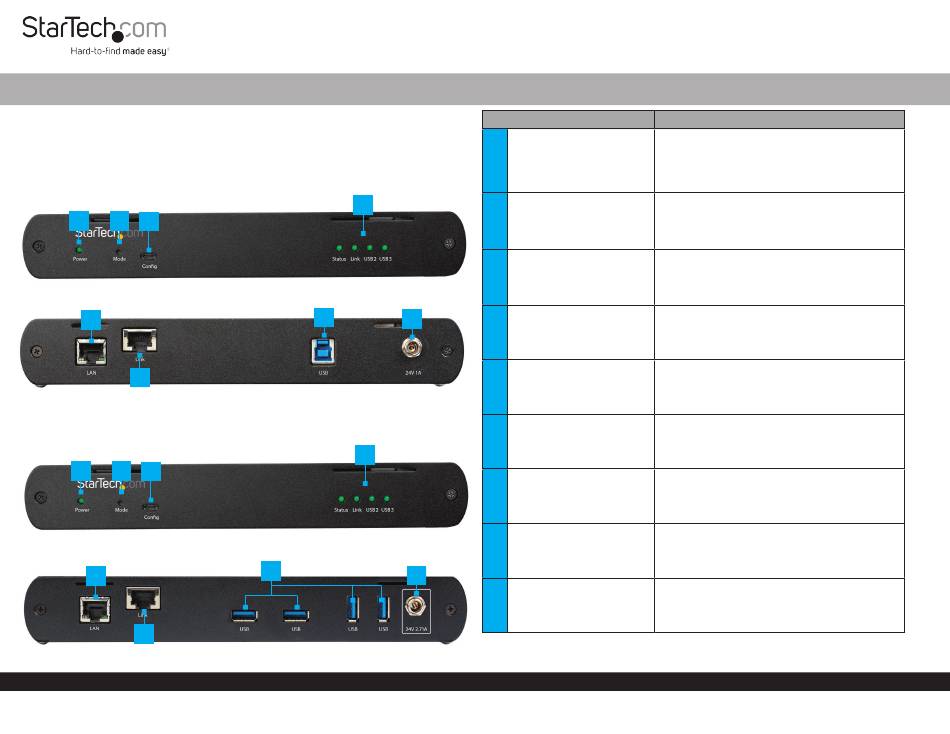

Product Diagram

Transmitter
Side A
1 2
3
Side B
5
6
Receiver
Side A
1 2
3
Side B
5
6
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
1 2
8
7
4
9
7
Component
Power LED
1
(Transmitter & Receiver)
Mode Button
2
(Transmitter & Receiver)
3
*NOT IN USE
Config Service Port
3
(Transmitter & Receiver)
*NOT IN USE
Link/Status/Mode LED
4
(Transmitter & Receiver)
LAN (Local Area Network)
Port
5
(Transmitter & Receiver)
Link Port
6
(Transmitter & Receiver)
DC 24V Port
7
(Transmitter & Receiver)
USB-B Host Port
8
(Transmitter)
USB-A Peripheral Port
9
(Receiver)
Quick-Start Guide
Function
Indicates if the Transmitter and/or Receiver
•
are Receiving Power
Solid Green = Receiving Power
•
Off = Not Receiving Power
•
For Manufacturer Use Only
•
For Manufacturer Use Only
•
Indicates the Operational Status of the
•
Transmitter & Receiver
Extends Gigabit Ethernet
•
Connect the Transmitter to the Receiver
•
using a Cat5e/Cat6 Cable
Used to connect the Transmitter & Receiver
•
to a Power Source.
Connect to a USB-A Port on a Host
•
Computer
USB 3.0 (5 Gbps)
•
Connect Remote USB-A Peripherals
•
USB 3.0 (5 Gbps)
•
Supports up to 5 V/0.9 A (4.5 W) Power
•
Manual Revision: July 25, 2022 11:39 AM
