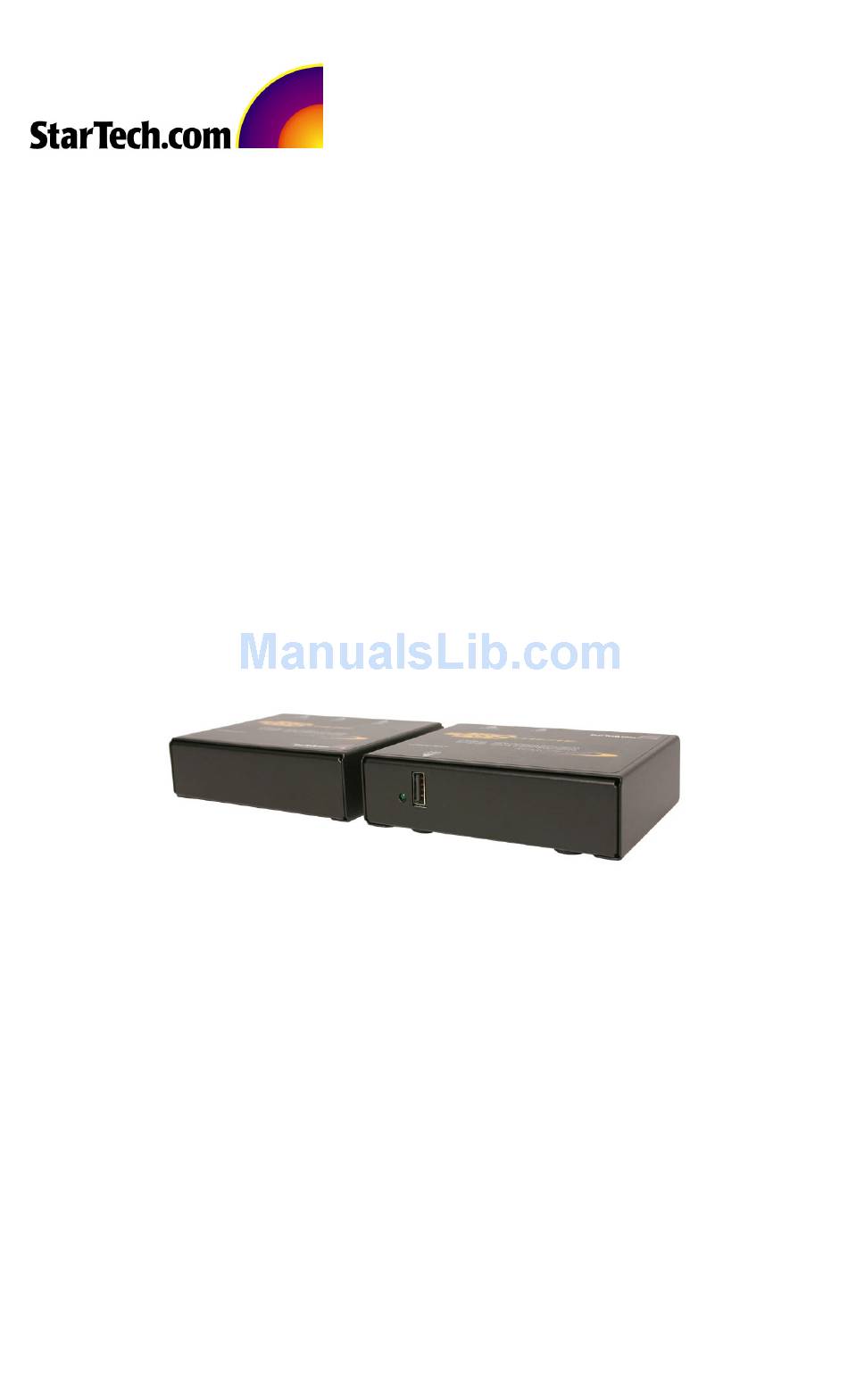

- Page 1 USBthere 1 Port 165 ft. (50m) Multi- Speed USB 2.0 Extender Instruction Manual USB221EXT...
- Page 2 FCC Radio Frequency Interference Statement Warning The USB221EXT has been tested and found compliant with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when installed and operated in a commercial environment.
-
Page 3: Table Of Contents
Introduction……………………………………………………………… Contents………………………………………………………………….. About the USB221EXT………………………………………………….. Before You Begin………………………………………………………... Installation……………………………………………………………….. Troubleshooting………………………………………………………….. Specifications……………………………………………………………. Technical Support………………………………………………………... Warranty Information……………………………………………………. -
Page 5: Introduction
USB devices. : Notes give additional information that could make installation NOTE easier. USB221EXT Product Contents When you open your USB221EXT for the first time you should find the following items: USB221EXT User Guide Local unit Remote unit... -
Page 6: About The Usb221Ext
USB peripheral devices and allows users to enjoy the benefits of USB technology beyond the desktop. With the USB221EXT, USB devices can be located up to 165 feet (50 meters) from the host computer. -
Page 7: The Remote Unit
The Remote unit The Remote unit connects to the USB device using a conventional USB cable. Depending on your needs, it also connects to a power outlet through an AC power adapter. The Remote unit allows you to connect one USB device. Front View Rear... -
Page 8: Usb Cables
The Type B connector is used to attach the USB cable to a USB device. USB Type A USB Type A port connector Compatibility The USB221EXT complies with USB 2.0 specifications governing the design of high-speed USB devices. However, StarTech.com does not Local Category 5 cable AC power adapters USB Type B... - Page 9 USB221EXT Instruction Manual guarantee that all high-speed USB devices are compatible with the USB221EXT.
-
Page 10: Before You Begin
Before You Begin Before you can install the USB221EXT, you need to prepare your site. 1. Determine where the host computer is to be located and set up the computer. 2. Determine where you want to locate the USB device(s). -
Page 11: With Surface Cabling
4. On the host PC, open the Device Manager applet. Expand the entry for Universal Serial Bus controllers by clicking the + sign. If the USB221EXT has been installed correctly you should find it listed as a Generic USB Hub. -
Page 12: Connecting A Usb Device
USB221EXT Instruction Manual Connecting a USB Device 1. Install any software required to operate the USB device(s). Refer to the documentation for the device(s), as required. 2. Connect the USB device to the Device port on the Remote unit. 3. Check that the Device LED on the Remote unit is on. -
Page 13: Troubleshooting
4. Reconnect the Local unit to the computer. 5. In the Universal Serial Bus controllers section of Device Manager, check that the USB221EXT is recognised as a “Generic USB Hub”. 6. If the USB221EXT is not recognised, contact technical support for assistance (see page 12). - Page 14 The USB221EXT is malfunctioning. Remedy 1. Disconnect the USB221EXT from the computer. 2. Connect the USB device directly to the USB port on the computer. 3. If the device does not operate properly, consult the user documentation for the device.
-
Page 15: Specifications
Full speed devices (12 Mb/s) Low speed devices (1.5 Mb/s) Any single chain can include four USB hubs and one USB221EXT, in any order. Input: 110/240 V AC, 50 – 60 Hz Output: 5 V DC, 2 A 1 x 500 mA 2 meters (6.6 ft) -
Page 16: Technical Support
Warranty Information This product is backed by a one year warranty. In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion.
