Page 1: User Guide

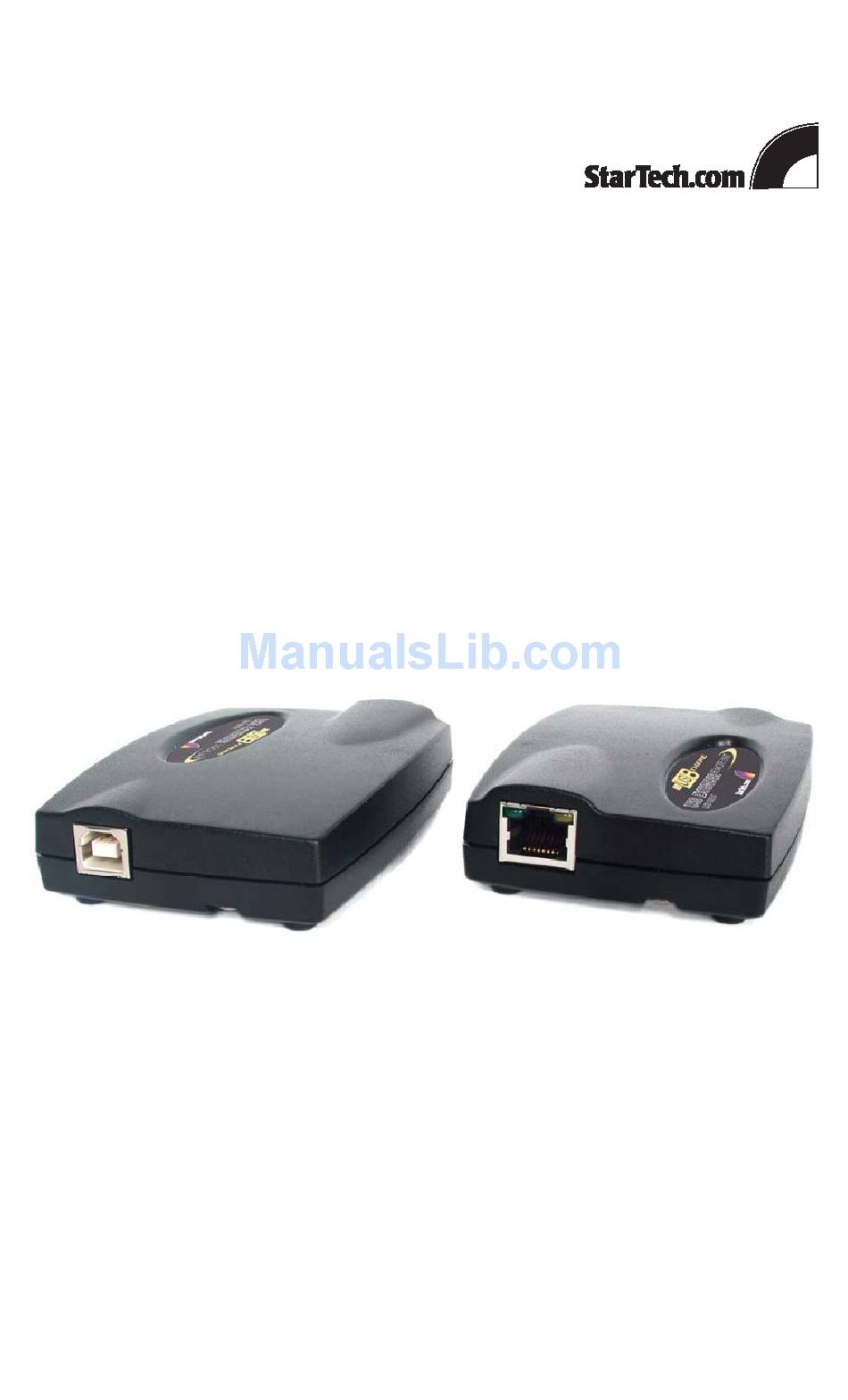

THERE User Guide USB110EXT USB120EXT USB110 EXT shown Extending the Range of USB... - Page 2 CE Statement We, StarTech.com, declare under our sole responsibility that the USBthere, to which this declaration relates, is in conformity with European Standard EN 55022/A1 Class B, and EN 55024.
-
Page 3: Table Of Contents
User Guide Contents Introduction... 1 Product Contents ... 1 About the USBthere ... 2 Before You Begin ... 5 Installing the Local Unit ... 5 Installing the Remote Unit ... 5 Connecting the Local Unit to the Remote Unit... 5 Checking the Installation... - Page 4 USBthere USB110EXT/USB120EXT Notes...
-
Page 5: Introduction
Introduction This manual is intended to assist IT professionals install the USBthere USB110EXT/USB120EXT. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. : Notes give additional information that could make installation NOTE easier. -
Page 6: About The Usbthere
USBthere USB110EXT/USB120EXT About the USBthere The USBthere breaks the five-meter distance barrier for the connection of USB peripheral devices and allows users to enjoy the benefits of USB technology beyond the desktop. With the USBthere, USB devices can be located up to 50 meters from the host computer. In addition, the USBthere can supply power to remote low-power and some high-power USB devices. -
Page 7: The Remote Unit
The Remote Unit The Remote Unit connects to the USB device using a conventional USB cable. The USBthere USB110EXT allows you to connect one full-speed or low-speed USB device. The USBthere USB120EXT allows you to connect two full-speed or low-speed USB devices. -
Page 8: Power Handling
USB perspective and are thereby compatible with the USBthere. Compatibility The USBthere complies with USB 1.1 specifications governing the design of full-speed and low-speed USB devices. However, StarTech.com does not guarantee that the USBthere. USB Type B USB Type B... -
Page 9: Before You Begin
Before You Begin Before you can install the USBthere, you need to prepare your site. 1. Determine where the host computer is to be located and set up the computer. 2. Determine where you want to locate the USB device. 3. -
Page 10: With Premise Cabling
USBthere USB110EXT/USB120EXT With Premise Cabling 1. Plug one end of a Category 5 patch cord (not included) into the Link port on the Local Unit. 2. Plug the other end of the patch cord into the Category 5 information outlet near the host computer. -
Page 11: Troubleshooting
Troubleshooting The following table provides troubleshooting help. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact technical support for further assistance (see page 10). Symptoms/Cause All LEDs on Local Unit are off. - Page 12 USBthere USB110EXT/USB120EXT Symptoms/Cause Link LED on Local Unit is on; Host LED on Local Unit is on. Link LED on Remote Unit is on; Device LED on Remote Unit is off. Cause: a) The USB device is not connected to the Remote Unit.
-
Page 13: Specifications
1 x USB Type B 1 x RJ-45 1 x RJ-45 USBthere USB110EXT: 1 x USB Type A USBthere USB120EXT: 2 x USB Type A 100 mm x 70 mm x 30 mm (4.0” x 2.8” x 1.2”) 0.1 kg (0.2 lb) 100 mm x 70 mm x 30 mm (4.0”... -
Page 14: Technical Support
Limitation of Liability • In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise),... - Page 15 User Guide Notes...
