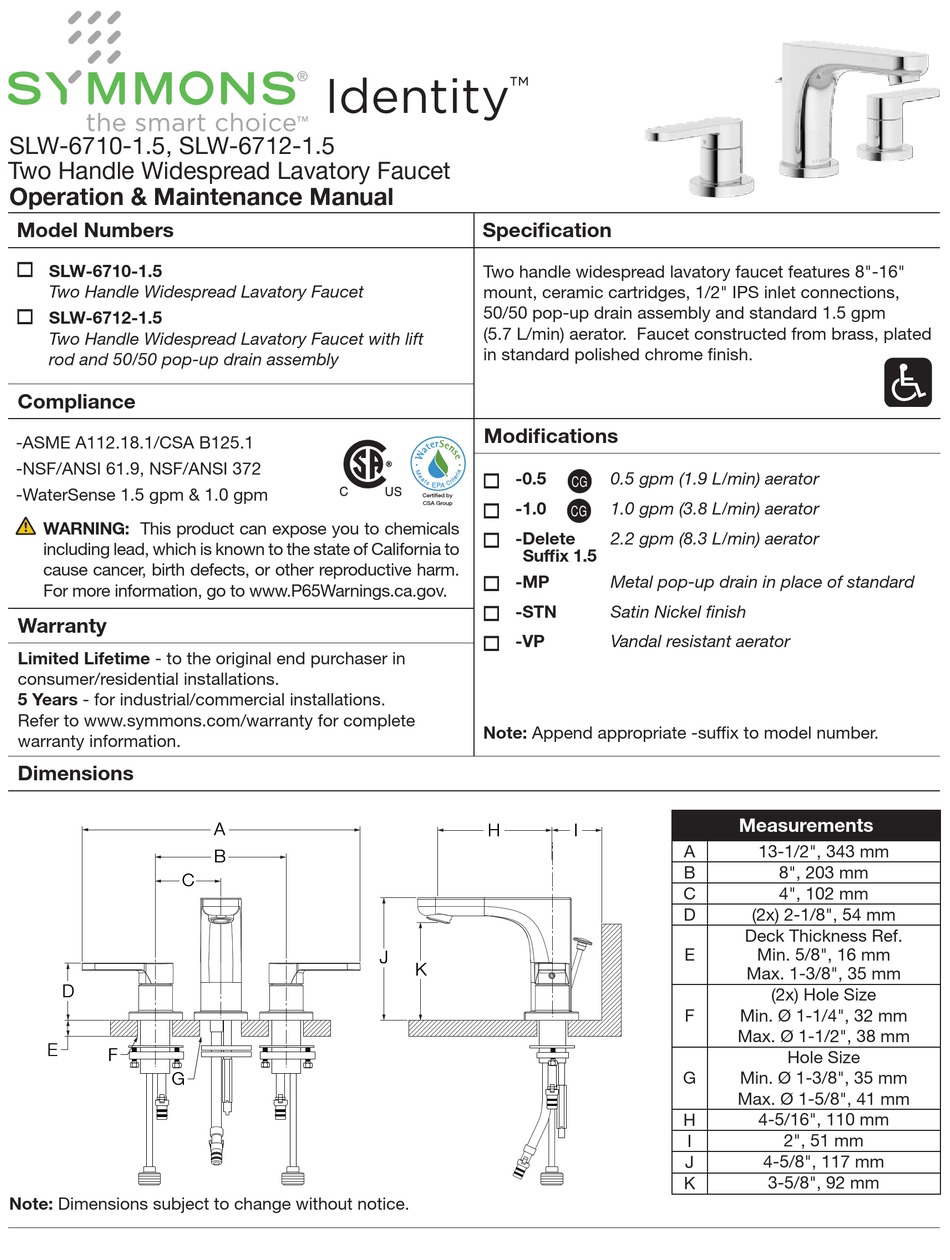

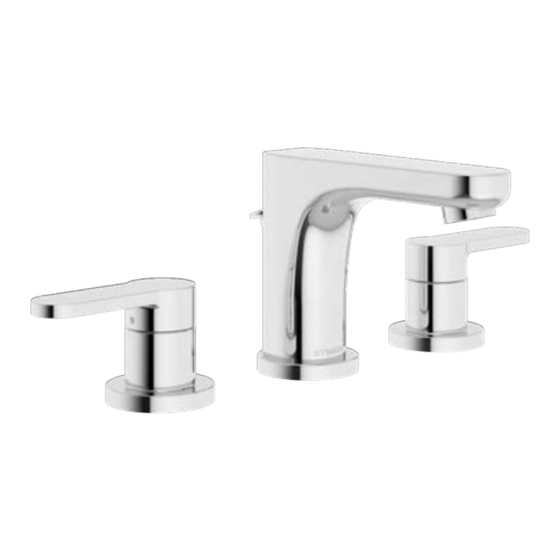

Symmons Identity SLW-6710-1.5 Operation & Maintenance Manual

SLW-6710-1.5, SLW-6712-1.5
Two Handle Widespread Lavatory Faucet
Operation & Maintenance Manual
Model Numbers

SLW-6710-1.5
Two Handle Widespread Lavatory Faucet

SLW-6712-1.5
Two Handle Widespread Lavatory Faucet with lift
rod and 50/50 pop-up drain assembly
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
-WaterSense 1.5 gpm & 1.0 gpm
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
C C
D D
E E
F F
G G
Note: Dimensions subject to change without notice.
Identity
A A
B B
J J
™
Specification
Two handle widespread lavatory faucet features 8"-16"
mount, ceramic cartridges, 1/2" IPS inlet connections,
50/50 pop-up drain assembly and standard 1.5 gpm
(5.7 L/min) aerator. Faucet constructed from brass, plated
in standard polished chrome finish.
Modifications
-0.5
 CG
Certi ed by
-1.0
CSA Group  CG
-Delete

Suffix 1.5
-MP

-STN

-VP

Note: Append appropriate -suffix to model number.
H H I I
K K
0.5 gpm (1.9 L/min) aerator
1.0 gpm (3.8 L/min) aerator
2.2 gpm (8.3 L/min) aerator
Metal pop-up drain in place of standard
Satin Nickel finish
Vandal resistant aerator
Measurements
A 13-1/2", 343 mm
B 8", 203 mm
C 4", 102 mm
D (2x) 2-1/8", 54 mm
Deck Thickness Ref.
E Min. 5/8", 16 mm
Max. 1-3/8", 35 mm
(2x) Hole Size
F Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
Hole Size
G Min. Ø 1-3/8", 35 mm
Max. Ø 1-5/8", 41 mm
H 4-5/16", 110 mm
I 2", 51 mm
4-5/8", 117 mm
J
3-5/8", 92 mm
K
