P2001-5K-M0_122018

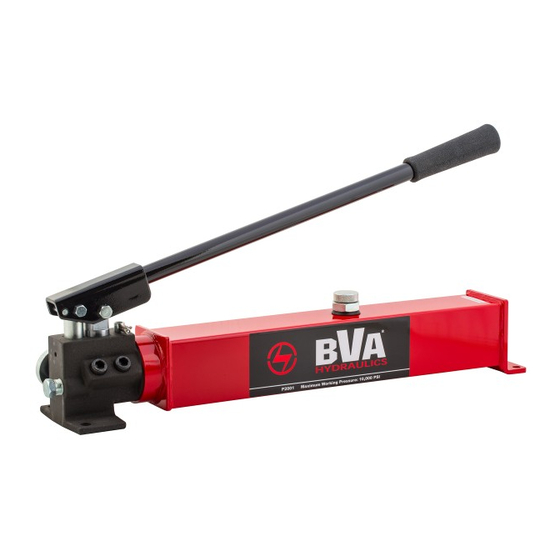

Hand Pump
Instruction Manual
MODELS: P2001-5K
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
*
Fax: 816-448-2142
E-mail: sales@bvahydraulics.com
Website: www.bvahydraulics.com
Maximum Operating Pressure 5,000 PSI
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics P2001-5K
Summary of Contents for BVA Hydraulics P2001-5K
- Page 1 P2001-5K-M0_122018 Hand Pump Instruction Manual MODELS: P2001-5K SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Maximum Operating Pressure 5,000 PSI This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
Number Cylinder Force (lbs) (in) Port (lbs) Stage Stage Stage Stage Single 3/8- P2001-5K 122.0 5,000 0.81 0.25 0.82 24.2 Speed Acting 18NPTF Oil Outlet Port 3/8ʺ -18NPTF Handle Release Knob Vent Screw Reservoir Figure 2 - Model P2001-5K Components... - Page 3 WARNING • Never attempt to disconnect hydraulic connections under • Study, understand, and follow all pressure. Release all line pressure before disconnecting hoses. instructions provided with and on this • Use only approved accessories and approved hydraulic fluid. device before use. •...
-
Page 4: Before Use
Inspect before each use. Do not use if bent, broken, leaking or damaged components are noted. 3. Replace worn or damaged parts and assemblies with BVA Hydraulics Authorized Replacement Parts only (See Figure 3 - Pull spring loaded lock pin, pivot toward Replacement Parts Section). Lubricate as instructed in rear to unlock pump handle. -
Page 5: Maintenance
2. Dispose of fluid in accordance with local regulations. 1. Inspect hoses and connections daily. Replace damaged 3. Fill with a good quality hydraulic jack oil as recommended above. components immediately with BVA Hydraulics Replacement Reinstall vented oil filler plug/screw. Parts only. 2. Tighten connections as needed. Use pipe thread sealing Lubrication compound when servicing connections. - Page 6 Parts Illustration Model No. H2818 Approved By: Checked By: Drawn By: 羅乙盛 Date: 2018.04.09 File name:H2818EXP_1804EXP Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 7 Hand Pump Service Parts MODEL: P2001-5K SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 8 Model No. H28-4-1618-108 Parts Illustration Checked By: Approved By: Drawn By: 陳神佑 File name: H28-4-1618-108_1505EXP Date: 2015.05.28 Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
- Page 9 Hand Pump Service Parts MODEL: H28-4-1618-108 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
-
Page 10: Limited Lifetime Warranty
This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed by BVA Hydraulics or one of its authorized personnel), improper fluid use, or use of the product in any manner for which the product was not intended or the use of which is not in accordance with the instructions or warnings provided with the product. - Page 11 Note Page Contact: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(888)332-6419 Fax:(816) 448-2142 E-Mail:sales@bvahydraulics.com BVA Website: http://www.bvahydraulics.com...
