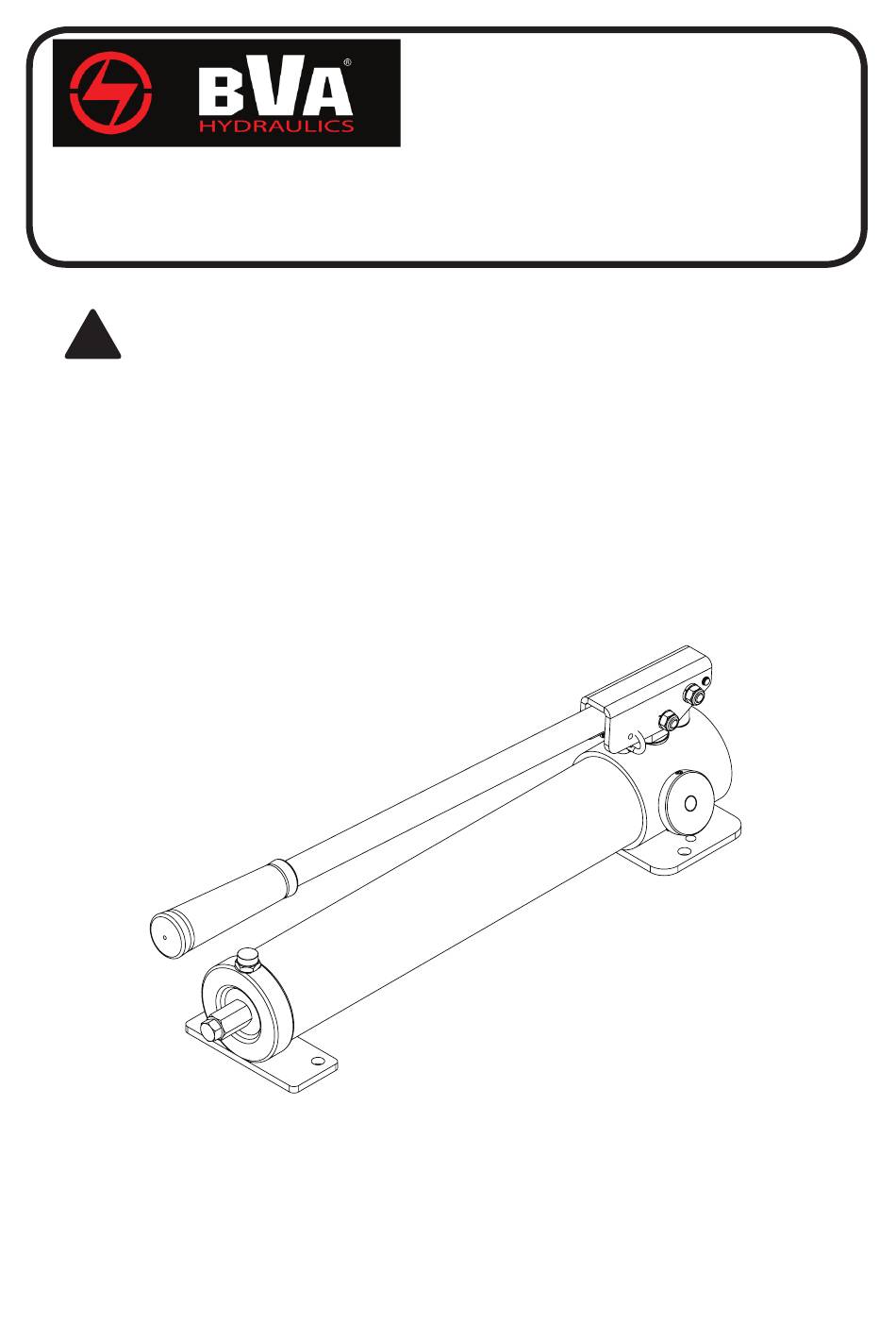

P1000RP-M0_072019 Hand Pump, Instruction Manual MODEL: P1000RP SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

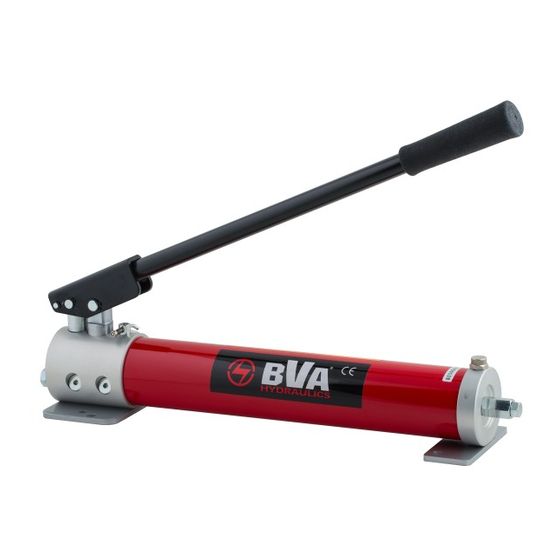

PRODUCT DESCRIPTION BVA Hydraulic Hand Pump model P1000RP supplies compressed hydraulic fluid to compatible applications i.e. rams, presses, spreaders, compactors and crimping machines, anywhere that 5000 PSI of fluid pressure is needed.
Page 3
• Never attempt to disconnect hydraulic connections under PERSONAL INJURY AS WELL AS PROPERTY DAMAGE. pressure. Release all line pressure before disconnecting hoses. del No. H1821 15.50 393.7 Figure 2 - Model P1000RP Mounting Plate Dimension 22.98 583.7 21.73 3/8"-18NPTF...
2. Verify that the product and the application are compatible. Inspect before each use. Do not use if bent, broken, leaking or damaged components are noted. 3. Replace worn or damaged parts and assemblies with BVA Hydraulics Authorized Replacement Parts only (See Replacement Parts Section). Lubricate as instructed in Maintenance Section.
Changing Hydraulic Fluid MAINTENANCE 1. Inspect hoses and connections daily. Replace damaged For best results, change fluid once a year. components immediately with BVA Hydraulics 1. Remove vent screw and pour used fluid into a sealable Replacement Parts only. container.
Page 6
Parts Illustration (refer page 7 for part numbers) Approved By: Checked By: Drawn By: 陳神佑 Date: 2016.04.12 File name: H1821_1604EXP Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
Page 7
Hand Pump Service Parts MODEL: P1000RP SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
Page 8
Model No. H18-4-1600-909 Parts Illustration (refer page 9 for part numbers) Checked By: Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Approved By: Drawn By: 陳神佑 Replacement Parts only. File name: H18-4-1600-909_1507EXP...
Hand Pump Service Parts MODEL: P1000RP Base Assembly SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components.
