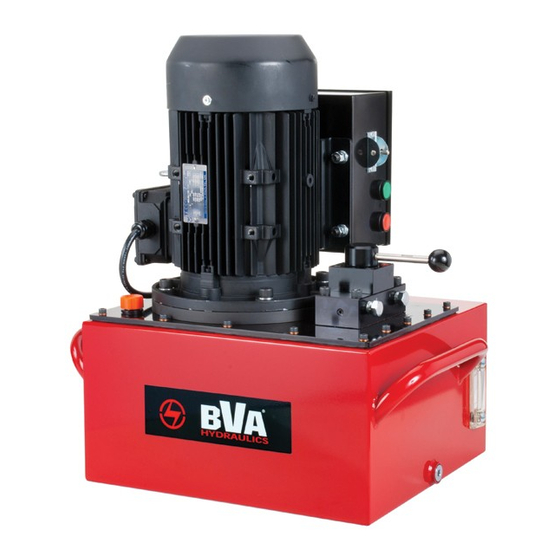

Electric Pump
Instruction Manual
*
Fax: 816-448-2142
Website: www.bvahydraulics.com
Drawn By: 蔡門成 Date: 2018.09.14 File name: E35-3W3P-L-DYNEX .slddrw
PE60S3L06J-M0_102018
PE60S4L06J Shown
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for BVA Hydraulics PE60S3L06J
Summary of Contents for BVA Hydraulics PE60S3L06J
- Page 1 PE60S3L06J-M0_102018 Electric Pump Instruction Manual MODELS: PE60S3L06J, PE60S3L10J, PE60S3L40J, PE60S4L06J, PE60S4L10J, PE60S4L40J SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Maximum Operating Pressure 10,000 PSI Model No. E35-3W3P-L-DYNEX-OUT PE60S3L06J Shown...
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall have an understanding of this product and safe operating procedures before attempting to use this product. Instructions and safety information shall be conveyed in operator's native language before use of this product is authorized. -
Page 3: Specifications
Valve Valve (PSI) (Cu. In/Min.) Motor Voltage Capacity Type Type Function (Gal.) Stage Stage Stage Stage PE60S3L06J Single PE60S3L10J Acting 3 HP / PE60S3L40J Solenoid Hold / Run 10,000 460 - 480 VAC Control / Retract PE60S4L06J Phase Double PE60S4L10J... - Page 4 WARNING • Read, understand, and follow all instructions provided with • Do not operate this device in an extreme temperature, and on this device before use. explosive atmosphere or in the presence of conductive • All WARNING statements must be carefully observed to liquids.
-
Page 5: Before Use
BEFORE USE 1. Check oil level, add oil if necessary. 2. Make sure system fittings and connections are tight and Read, understand, and follow all printed materials carefully leak free. before attempting to assemble or operate these pumps. 3. Place control valve lever in the middle (Neutral/Hold) position to prevent accidental lifting or moving of load. -
Page 6: Troubleshooting
2. Inspect hoses and connections daily. Replace damaged Changing Hydraulic Oil components immediately with BVA Hydraulics 1. For best results, change hydraulic oil once a year. replacement parts only. 2. Remove drain plug, tilt the pump then pour used fluid into 3. - Page 7 Electric Pumps Service Parts MODELS: PE60S3L06J, PE60S3L10J, PE60S3L40J, PE60S4L06J, PE60S4L10J, PE60S4L40J SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 8 Electric Pumps Pump Assembly PART: E35-1-2000-102 SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 9 Electric Pumps Pump Piston Set E30-4-4000-105 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 10 Electric Pumps Gear Pump Assembly E15-4-6030-103 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 11 Electric Pumps Safety Valve Set E05-4-8000-106 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 12 Electric Pumps Service Parts PART: 655011-24VDC, C33L, C43L SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 13 Electric Pumps Service Parts D08-4-1050-108 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
- Page 14 Electric Pumps Service Parts D08-4-1051-100 PART: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-448-2142 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence.
-
Page 15: Limited Lifetime Warranty
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any warranty credit for such damaged components. - Page 16 Note Page Contact: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(888)332-6419 Fax:(816) 448-2142 E-Mail:sales@bvahydraulics.com BVA Website: http://www.bvahydraulics.com...
