- Page 1 HDMV-8x 8 Port Full HD Multiviewer Real-Time USB/KVM Switch USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS__________________________________________________________________ WHAT’S IN THE BOX?_________________________________________________________________________ FRONT AND BACK____________________________________________________________________________ PANEL LAYOUT_______________________________________________________________________________ CONNECTING THE BOX______________________________________________________________________ APPLICATION DIAGRAM______________________________________________________________________ COMMAND SET______________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 8 Port Full HD Multiviewer/KVM Switch... -
Page 3: Technical Specifications
Technical Specifications VIDEO Video Bandwidth Single-link 340MHz [10.2Gbps] Resolution HDTV 480i,480p,720i,720p,1080i,1080p PC Resolution 800 x 600 up to 1920 x 1200 Input Video Signal 1.2 volts Input DDC Signal 5 volts Single Link Range 1080p Format HDMI 1.4 DVI Compliance Single-link DVI-D 2.0 HDCP Compliance 1.0/2.0... -
Page 4: What's In The Box

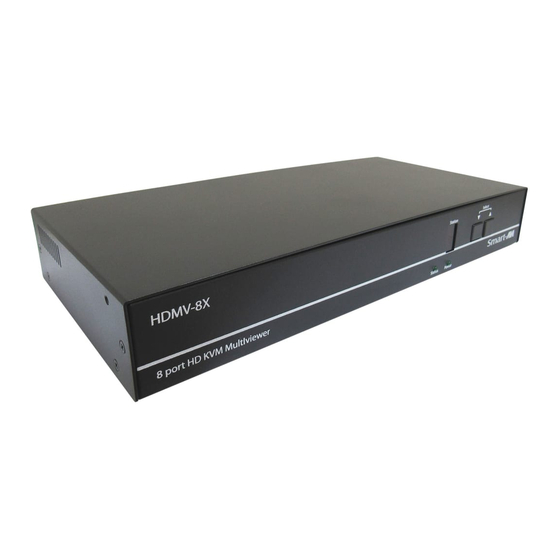

What’s in the box? PART NO. Q-TY DESCRIPTION SM-HDMV-8X 8-Port HDMI, USB Real-Time Multiviewer and KVM switch Power Cord User Manual FRONT AND BACK Front Panel Back Panel PANEL LAYOUT FRONT PANEL HDMV-8X Select Station STATUS POWER 8 Port HD KVM Multiviewer 1. -
Page 5: Connecting The Box
The power connection and switch are located at the back of the unit as well as the RS-232 connection and all HDMI inputs and output. Connect all peripheral devices first and turn them on before powering on the HDMV-8X. APPLICATION DIAGRAM... -
Page 6: Command Set
command set RESOLUTION COMMANDS DESCRIPTION HOTKEY SERIAL Set resolution for 1920x1080p monitor [CTRL][CTRL] s 1 //s 1 Set resolution for 3840x1080 monitor [CTRL][CTRL] s 2 //s 2 FULL SCREEN MODE DESCRIPTION HOTKEY SERIAL Full screen selection with [CTRL][CTRL] m [1-8] //m [1-8] KM, USB, and sound Full screen selection with... - Page 7 8X MODE DESCRIPTION HOTKEY SERIAL IN1 through IN8 divided into 8 displays with all [CTRL][CTRL] n functions on IN1 hdmv-8x FUNCTIONAL COMMANDS DESCRIPTION HOTKEY SERIAL Serial message reporting on [CTRL][CTRL] d o n //d o n Serial message reporting off. Off is setting for startup...
-
Page 8: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 9: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 10 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
