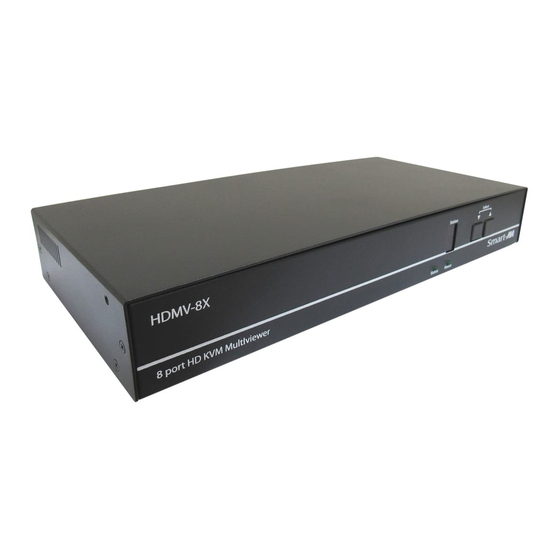

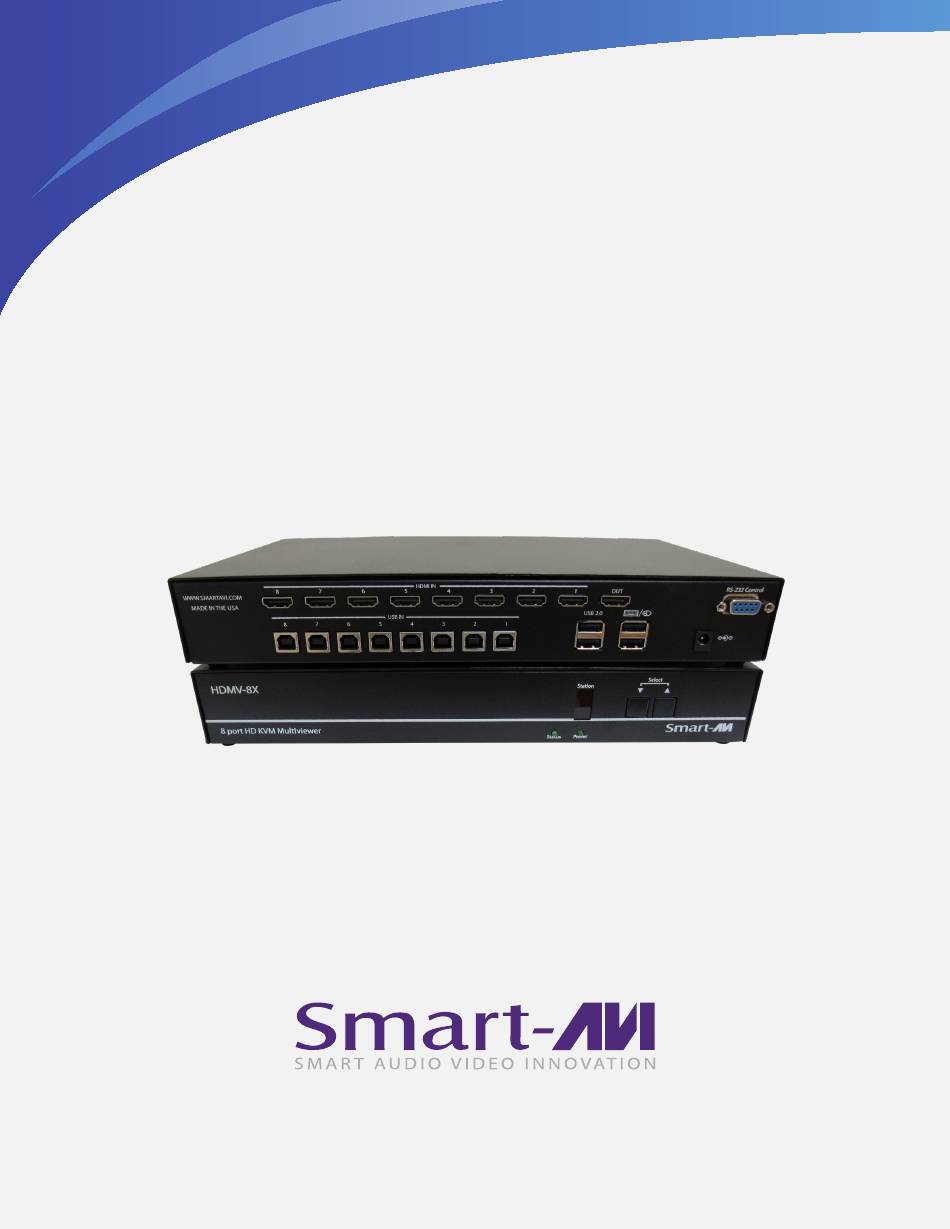

- Page 1 HDMV-8X User Manual 8 Port Full HD Multiviewer Real-Time USB/KVM Switch View up to eight different HD digital video sources on one display device simultaneously Made in U.S.A www.Smart AVI.com 1-800-AVI-2131...
- Page 2 APPLICATION DIAGRAM AVAILABLE CONFIGURATIONS COMMAND SET LIMITED WARRANTY STATEMENT WHAT’S IN THE BOX PART NO. Q-TY DESCRIPTION SM-HDMV-8X 8-Port HDMI, USB Real-Time Multiviewer and KVM switch Power Cord FRONT AND BACK Figure 2-1 ACCESSORIES CONTROLLING THE MULTIVIEWER ATTACHING A DVI-D DEVICE...
-
Page 3: Specifications
Table 3-1 INTRODUCTION The HDMV-8X allows you to view up to eight different high definition video sources simultaneously on one display device. Connections to video sources are managed via HDMI connectors. Use this device to simplify management of multiple sources by controlling them all through a single display using the front panel, RS-232, and either through TCP-IP or the optional KVM. -
Page 4: Panel Layout
The power connection and switch are located at the back of the unit as well as the RS-232 connection and all HDMI inputs and output. Connect all peripheral devices first and turn them on before powering on the HDMV-8X. application diagram... -
Page 5: Available Configurations
Mode changing or selecting video sources will be done via buttons on the front panel. hdmv-8x 2X2 WITH PIP MODE In 2x2 with PIP Mode, the full screen displays four of the eight video sources evenly from left to right, from top to bottom with the first two are on top and the second two are on the bottom of the screen. - Page 6 AVAILABLE CONFIGURATIONS (continued) DUAL SCREEN MODE 1-2 In Dual Screen Mode 1-2, the full screen displays the first and the second video sources side by side with their original aspect ratios, allowing simultaneous monitoring. Mode changing will be done via buttons on the front panel.
-
Page 7: Command Set
Command Set FULL SCREEN MODE Full screen selection with Full screen selection with Multiscreen selection Multiscreen and full keyboard, mouse, USB keyboard, mouse and and with keyboard, mouse and screen selection for 2.0, and sound. sound. USB 2.0 sound. HOT KEYS SERIAL HOT KEYS SERIAL... -
Page 8: Limited Warranty Statement
Customer is responsible for maintaining proof of date of purchase. Smart-AVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. - Page 9 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from Smart-AVI Technologies, Inc.
