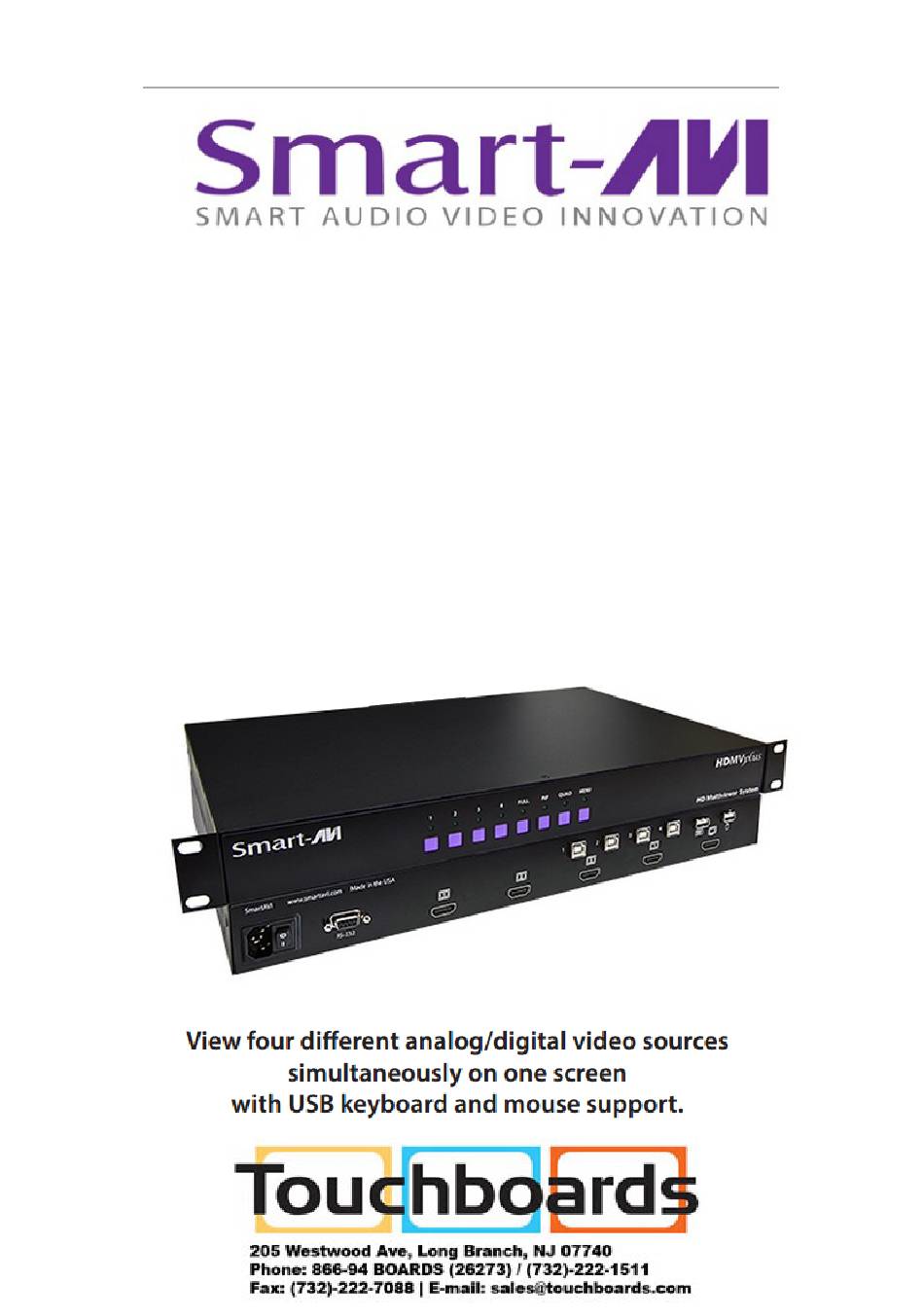

- Page 1 plus HDMV 4 PORT FULL HD MULTIVIEWER REAL-TIME USB/KVM SWITCH USER MANUAL...
- Page 2 Introduction The HDMV Switch allows you to view up to four different High Definition video sources simultaneously on one display device. It also supports keyboard and mouse functionality, allowing you to access all four displays with one set of interface controls. Connections to video sources are managed via HD connectors.
- Page 3 Features • View up to four computers on a single monitor at the press of a button • Supports USB keyboard and mouse • On-screen display (OSD) makes setup and switching easy • Change views by pressing the tact switches, keyboard hotkeys, and RS-232 •...
- Page 4 Applications Law enforcement Security Clearance Hospital and Hospice care patient monitoring Professional Presentations Corporate or Educational Presentations Financial (Remote Servers/User Control) Call Centers for Technical Support Industrial (Long-Range Workstation Isolation) Airport Installations (Air Traffic Control/Passenger Information) ...
- Page 5 Modes There are three different modes that are easy to navigate through. Switching between the display modes is simple. Use the buttons on the front panel, hotkey commands, OSD, or RS-232 console command to switch between modes. Using the front control panel To switch to full screen mode press the button “FULL”...
- Page 6 Using the On Screen Display The OSD can be accessed by using either the “MENU” button on the front control panel or through hotkey commands “hotkey + hotkey + O”, for example if your hotkey is left ctrl (by de- fault) press “ctrl + ctrl+ O”...
- Page 7 To save the settings navigate to the “Save” text and press the Enter key. To restore the factory settings click scroll down to “Factory Reset” and press enter. The HDMV will perform a power reset on itself. The position of the OSD can be moved around. Select the “OSD Position” text and press en- ter.
-
Page 8: Using Hotkey Commands
Using Hotkey commands The default factory hotkey is the left “ctrl” key. To use a hotkey command simply hit ctrl twice, and then the appropriate command. Command Function Example hotkey + hotkey + q Change to quad mode Ctrl + ctrl + q (quad mode) Change to full mode of channel Ctrl + ctrl + f + 1... - Page 9 Console commands continued Once connected simply enter a question mark “?” and press enter to bring up the optional commands Mode Console Command Example Quad mode q + <enter> “q” (quad mode) Picture in picture p # + <enter> “p 3” (channel 3 main as picture in picture) Full f # + <enter>...
- Page 10 Q and A Q: What do I need to use the RS-232 console? A: A standard RS-232 cable, one end is male and the other end is female. Your computer must have an RS-232 card installed. Q: How do I update the firmware? A: If new firmware is available you will be able to download it from the SmartAVI website.
- Page 11 © Copyright 2012 SmartAVI, All Rights Reserved NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.
