Cooper Scantronic 9 5 Series Programming Manual

Hardwired control units
Hide thumbs Also See for Scantronic 9 5 Series:
Table of Contents

Advertisement

Quick Links

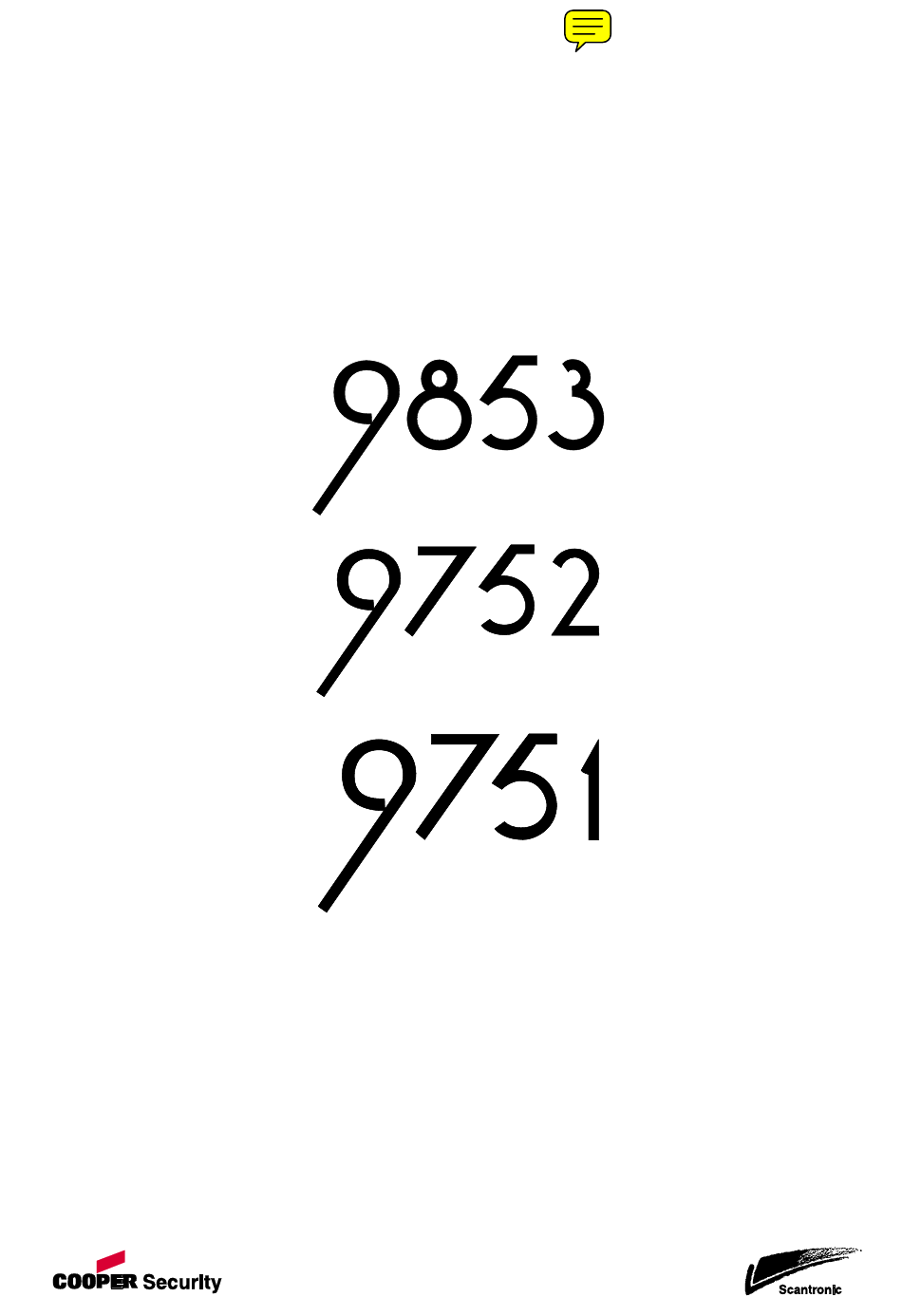

9x5x
PROGRAMMING GUIDE
HARDWIRED
CONTROL UNITS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scantronic 9 5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cooper Scantronic 9 5 Series

Summary of Contents for Cooper Scantronic 9 5 Series

  • Page 1 9x5x PROGRAMMING GUIDE HARDWIRED CONTROL UNITS...
  • Page 2 © Cooper Security Ltd. 2009 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.

  • Page 3: Table Of Contents

    Contents 1. INTRODUCTION..................1 About this Manual ............................1 Compliance with Standards .........................1 Operating Modes ............................2 Entering Installer Mode ..........................2 Using Programming and Testing Commands ....................3 Leaving Installer Mode..........................3 Restoring Default Access Codes (first stage reset)..................3 Performing an Engineer Reset........................4 Restoring Default Command Settings ......................4 Adding and Deleting Tags..........................5 To Add a Tag.............................5 To Delete a Tag ............................6...
  • Page 4 Contents 61: Level B Entry Route Operation ......................29 62: Level/Partition B Exit Mode........................29 63: Level/Partition B Alarm Response .....................30 64: Not used ............................30 65: Level/Partition B Exit Time.........................30 66: Forbikobler Keypads and Partitions ....................30 67: Forbikobler Approved.........................31 68: Forbikobler Door Timer ........................31 69: Forbikobler Door Locking........................31 70: Level C Final Exit Operation ......................31 71: Level C Entry Route Operation ......................32...
  • Page 5 Contents 132: Send Tampers as Burglary ......................54 133: Do not Send SIA Restores .......................54 134: AC Fail User/Installer Reset......................54 135: Line Fault User/Installer Reset......................55 136: Anti-Mask User/Installer Reset......................55 137: AC Fail Override ..........................55 138: Line Fault Override ..........................55 139: Fault User/Installer Reset ........................56 140: Fault Override ..........................56 141: Alert Tone On/Off..........................57 142: Not used ............................57...
  • Page 6 Contents List of Figures Figure 1. Sensitive Areas on 9930 and 9940 Keypads for Tags..............5 Figure 2. Sample Log Print ........................70 Figure 3. Using a Common Area........................79 Figure 4. Using a Private Door........................81 Figure 5. Arranging Shared Exit Routes.....................81 Figure 6. Using two Common Areas ......................82 Figure 7.

  • Page 7: Introduction

    1. INTRODUCTION About this Manual This manual applies to software version 5.xx. The manual is divided into four chapters: 1. Introduction provides an overview of how to program a 9x5x control unit. 2. Programming Commands lists and describes the commands available to program aspects of a 9x5x control unit's operation.

  • Page 8: Operating Modes

    1. Introduction Operating Modes The alarm system has three basic modes of operation that provide access to commands appropriate to different types of users: 1. User mode allows setting, unsetting and resetting of the system, along with some basic commands. There may be many user codes of this type. 2.

  • Page 9: Using Programming And Testing Commands

    1. Introduction The display shows: Installer Mode You are now in installer mode. While the system is in installer mode, all keypads except the one that you are using will be locked and will display "Busy". Using Programming and Testing Commands When delivered from the factory, the control unit already has default settings.

  • Page 10: Performing An Engineer Reset

    1. Introduction Note: To activate the Access Codes (02 to 50) and Duress Code, which are initially inactive, User 1 must change the defaults to the correct codes. The 9x5x User Guide explains how to do this. To restore all access codes to their default settings: Remove mains power.

  • Page 11: Adding And Deleting Tags

    Adding and Deleting Tags You can use any industry-standard ISO tag or card on a 9943 keypad or on a 9930 keypad with the 934 module. To purchase tags from Cooper Security, quote part number Proxtagpk5. A tag acts as an alternative to a user access code. You can assign a user a tag, an access code, or both.

  • Page 12: To Delete A Tag

    1. Introduction The display shows " " and any text description for that user. User 01 Press X repeatedly until the display shows the user number of the tag you want to delete. The display shows the user number and any text description you have programmed for that user.

  • Page 13: Programming Commands

    2. PROGRAMMING COMMANDS 0: Country PTT Defaults Use this command to select the country and PTT defaults; it also loads default access codes and programming options. Use Command 126 to select language without making other changes. Note: If you select options 6 or 7 (Finland, Norway, Sweden or Denmark), the control unit changes the method of entering installer mode (see "Entering Installer...
  • Page 14 2. Programming Commands Enter letters from the keypad one at a time by repeatedly pressing a number key until the display shows the letter you want. If you make a mistake, press C or D to move the cursor to the letter you want to change and key in the new letter.
  • Page 15 2. Programming Commands Value Type Description Final Exit (FE) Zones of this type must be the first to be activated on entry. You can use them to set the system using the Final Door Set exit mode. Use Command 39 to set the exit mode for the zone (page 19).
  • Page 16 2. Programming Commands Value Type Description 11/12 Keyswitch There are two Keyswitch zone types: Momentary and Fixed. Use these for zones that connect to an access control keypad, electronic key or other hardwired device used to set or unset the system: Momentary Keyswitch (KM) Fixed (or latched) Keyswitch (KF)
  • Page 17 2. Programming Commands Value Type Description Battery Fault This zone type is triggered by a fault in the battery in the (BF) external power supply. In a partitioned system, BF zones are always allocated to Partition A. Power Output This zone type is triggered by a failure in the DC output to the Failure (PF) external power supply.
  • Page 18 2. Programming Commands Value Attribute Valid for Description Double Knock Normal Alarm For zones with this attribute, no action is (NA) taken on first activation. To cause an alarm, the zone must be activated twice within a five- Entry Route minute period or remain open for longer than (ER) 10 seconds.

  • Page 19: 20: Change Engineer Code

    2. Programming Commands Value Attribute Valid for Description Armed in When applied, the zone is armed when the Level or user selects Level or Partition B. Partition B Armed in When applied, the zone is armed when the Level or user selects Level or Partition C.

  • Page 20: 21: Zone Configuration

    2. Programming Commands Key in a new Engineer Code. The display shows: 20:Code xxxx Press y If Guard Code is enabled (Command 181), the display shows: 20:Guard Key in a new Guard Code. The display shows: 20:Guard xxxx Press y 21: Zone Configuration This command enables you to select the wiring type of the zone connectors on the control unit PCB.

  • Page 21: 23: Remote Reset Enable

    2. Programming Commands 23: Remote Reset Enable Option 1 enables remote resets via the plug-by or plug-on communicator, or via a Downloader PC. This option is relevant only when the system is set up for engineer resets (Command 33, option 1). After an alarm, the user can silence the sounders, but can reset the system only after contacting an Alarm Receiving Centre (ARC).

  • Page 22: 28: Status Display

    2. Programming Commands Option Internal (default). System operates the internal sounders only. Local. System operates both internal and external sounders. Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) prohibits an alarm after a failure to set the system, which would require Command 27 to be set to option 0.

  • Page 23: 29: Entry Alarm Delay Time

    2. Programming Commands 29: Entry Alarm Delay Time This command determines what the system does if a user strays from an Entry Route zone during entry. If you select option 0 (the default), the system gives an immediate alarm when the user strays from an Entry Route zone during entry.

  • Page 24: 33: System User/Engineer Reset

    2. Programming Commands PAs belong to the whole system. Command 66 is used to assign Forbikobler keypads to partitions. 33: System User/Engineer Reset To require an engineer reset, select option 1. To permit a user reset, select option 0 (the default). Certain types of events always need an engineer reset, irrespective of the option that you choose here: °...

  • Page 25: 37: Daytime Tamper Communication

    2. Programming Commands 37: Daytime Tamper Communication This command defines how the control unit reports tamper indications (for example, an attempt to open a control unit or keypad case) while the alarm system is unset. Option Internal sounder only (default). Internal sounder and communication of tamper indication to the Alarm Receiving Centre (ARC).
  • Page 26 2. Programming Commands Lock Set. To use this option, you must install a lock switch and connect its contacts to the ET terminals of a keypad (refer to the 9x5x Installation Guide). This facility is available on keypad software version 1.4.2 onwards. See the notes below for more information. In a partitioned system, the options are: Option Timed.

  • Page 27: 40: System Auto Rearm

    2. Programming Commands If an intruder opens the Final Exit door without first unlocking the lock switch, the control unit immediately starts an unconfirmed alarm. If the intruder goes on to violate another zone and Alarm Confirmation is enabled, the control unit sends a confirmed alarm.

  • Page 28: 42: Bell Duration

    2. Programming Commands 42: Bell Duration When an alarm occurs (for example, an intruder violates a zone), the system waits for the Bell Delay before operating the external sounder for the Bell Duration. This command sets the Bell Duration. Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) requires that the Bell Duration does not exceed 15 minutes.

  • Page 29: 46: Tamper Alarm Response

    2. Programming Commands 46: Tamper Alarm Response In a single system, this command specifies which sounders the control unit will activate for a Tamper Alarm while the system is unset. Option Internal sounders only (default) Keypad sounders only Internal and keypad sounders Note: This command is not available in a partitioned system.

  • Page 30: 49: Duress Code

    2. Programming Commands 49: Duress Code This command selects whether the control unit supports a Duress Code (set by the master user as described in the 9x5x User Guide). Entering this code will cause a silent communication to be sent to the Alarm Receiving Centre (ARC) if a user is forced to unset the system by an intruder.

  • Page 31: 51: Set Time And Date

    2. Programming Commands 51: Set Time and Date The system has an internal clock/calendar, which it uses to record the time and date of events in the log. This command sets the current time and date in the clock/calendar. The system displays the date first: enter the day, month and year in turn, each as two digits.

  • Page 32: 55: Supervision Response

    2. Programming Commands Command 54 specifies whether the control unit uses slow or fast supervision, which determines how quickly it reacts to losing contact with a radio zone. It will never take more than two hours to react to a supervision failure. Option Supervision time slow.

  • Page 33: 56: Number Of Digits In Access Codes

    2. Programming Commands Panel UNSET Option Lights Alert lamp Emits fault tone Starts internal sounder Starts external sounder Sends to ARC Tamper None None None (EN 50131-1) Sends to ARC Supervision None None None (other) Fault Records in Supervision Supervision Supervision Supervision event log...

  • Page 34: 57: Battery Load Test (Not 9751)

    2. Programming Commands 57: Battery Load Test (not 9751) This command specifies whether the control unit should load test its backup battery. If the battery fails a test, the control unit reports the failure to the central station; it also emits a regular short tone through the keypad sounders and shows the message "Batt Load Fail"...

  • Page 35: 61: Level B Entry Route Operation

    2. Programming Commands 61: Level B Entry Route Operation In a single system, this command specifies how the system treats Entry Route zones during part set B. If you select option 0 (the default), Entry Route zones included in Level B continue to act as Entry Routes during part set B. If you select option 1, these zones act as Final Exit zones during part set B.

  • Page 36: 63: Level/Partition B Alarm Response

    2. Programming Commands 63: Level/Partition B Alarm Response This command sets the alarm response for Level or Partition B. In a single system, the options are: Option Keypad sounders only. Internal sounders and keypad sounders (default). Local alarm (internal and external sounder only). Full alarm (communication and internal/external sounders).

  • Page 37: 67: Forbikobler Approved

    2. Programming Commands 67: Forbikobler Approved This command specifies whether the Forbikobler system should operate in an approved manner (user codes only) or a non-approved manner (proximity tags and user codes). Option Non-approved Approved (default) 68: Forbikobler Door Timer This command sets the time that the Forbikobler system allows for entry to the building (not the time needed to unset the system).

  • Page 38: 71: Level C Entry Route Operation

    2. Programming Commands 71: Level C Entry Route Operation In a single system, this command specifies how the system treats Entry Route zones during part set C. If you select option 0 (the default), any Entry Route zones in Level C continue to act as Entry Routes during part set C. If you select option 1, these zones act as Final Exit zones during part set C.

  • Page 39: 73: Level/Partition C Alarm Response

    2. Programming Commands 73: Level/Partition C Alarm Response This command sets the Alarm Response for Level or Partition C. In a single system, the options are: Option Keypad sounders only. Internal sounders and keypad sounders (default). Local alarm (internal and external sounder only). Full alarm (communication and internal/external sounders).

  • Page 40: 76: Level/Partition D Exit Mode

    2. Programming Commands 76: Level/Partition D Exit Mode This command sets the Exit Mode for Level or Partition D. The keypads give a double "beep" confirmation tone at the end of all setting modes, including Silent Set. The default is option 0, Timed. In a single system, the options are: Option Timed.

  • Page 41: 77: Level/Partition D Alarm Response

    Note: In a single system, you cannot change the operation of Final Exit and Entry Route zones assigned to Level D as you can with Levels B and C (see Commands 60, 61, 70 and 71). For this reason, Cooper Security recommends that you use Level D for simple applications only.

  • Page 42: 80: Forbikobler Chime

    2. Programming Commands 80: Forbikobler Chime This command links the bell push on the Forbikobler keypad to the Chime on the system, so that pressing the bell operates the sounders. Option Off. Pressing the bell push does not operate the sounders (default). On.
  • Page 43 2. Programming Commands Set Latch: active when the system is set and inactive when the system is unset or an alarm condition occurs. It is active for one second when a reset is performed or the control unit leaves installer mode.

  • Page 44: 85: Burglar Communication Rearm

    2. Programming Commands Bell Partition D: active when an alarm occurs in Partition D. Strobe Set A: active for 10 seconds after Partition A is set. Strobe Set B: active for 10 seconds after Partition B is set. Strobe Set C: active for 10 seconds after Partition C is set. Strobe Set D: active for 10 seconds after Partition D is set.

  • Page 45: 86: Not Used

    2. Programming Commands Notes: 1. For option 1 to function as described Confirmation (Command 89) must be set to option 0 and System Auto Rearm (Command 40) must be set to options 1, 2, 3, or 4. 2. If Alarm Abort is enabled (Command 36, option 1), the "burg" channel restores if the user unsets the system.

  • Page 46: 89: Alarm Confirmation

    2. Programming Commands Option Masking (default). Resistance values of both 4.4kΩ and 9.1kΩ are reported as Masking detected. Masking and Fault. A resistance value of 4.4kΩ is reported as a Fault and 9.1kΩ is reported as Masking detected. Note: Using three-resistor anti-mask wiring requires that Command 21 is set to one of the Fully Supervised Loop options (2 or 3).

  • Page 47: 99: Leave Installer Mode

    2. Programming Commands 99: Leave Installer Mode This command returns to user mode (for more information, see page 3). 100: Not used This command is not used. 101: Call Mode Use this command to select the call mode used by the communicator when contacting the Alarm Receiving Centre (ARC).

  • Page 48: 102: Communication Fault Timeout

    2. Programming Commands 102: Communication Fault Timeout This command sets the period after which a communications fault times out. In earlier versions of the 9x5x series, timeouts occurred after a specified number of calls. Option 60 seconds 120 seconds 240 seconds (default) 480 seconds Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) requires that Command 102 is set to option 2.

  • Page 49: 105: Static Test Call

    Command 108 (see page 45) to set up a dynamic test call for 24 hours after the last communication. Note: Cooper Security recommends that you choose either Static Test Call (105) or Dynamic Test Call (108), but not both at the same time. These commands generate test calls only from the built-in communicator.

  • Page 50: 106: Line Fault Response

    2. Programming Commands 106: Line Fault Response This command sets how the control unit responds when it detects a fault on an attached telephone line. The response depends on whether the system is set or unset. Option Disabled. The control unit does not monitor the telephone line connected to the internal communicator.

  • Page 51: 108: Dynamic Test Call

    1 to enable dynamic test calls. Notes: Cooper Security recommends that you select either Static Test Call (105) or Dynamic Test Call (108), but not both at the same time. These commands generate test calls only from the built-in communicator.

  • Page 52: 111: Modem Speed (9853 Only)

    2. Programming Commands There is no option for this command on the 9751, which has no connector for a local PC: 110 selects Remote. Secure Callback does not work with this command. The control unit will exit from this command if Downloader does not call within 30 minutes.

  • Page 53: 114: Access Mode

    2. Programming Commands 114: Access Mode You may wish to impose extra security on communication between a remote PC and the control unit as, once the PC is connected, Downloader has access to all programming commands. Select option 0 (the default) to require the user to initiate communication with the remote PC.

  • Page 54: 117: Account Number

    2. Programming Commands 117: Account Number With SIA formats, the control unit can report alarms using a six-digit account number. Use leading zeros to pad the account number to the correct length if necessary; for example; account 1234 would be 001234. Some European countries use letters in account numbers.

  • Page 55: 122: Communication Acknowledge

    2. Programming Commands 122: Communication Acknowledge This command is available only if Country is set to Ireland (Command 0, option X1). In addition, option 1 is effective only if Scancom Fast Format is selected (Command 103, option 0). To enable Communication Acknowledge, select option 1. In this mode, when the communicator has called the Alarm Receiving Centre (ARC) and received an acknowledgement, the keypad displays the message "Call your CS"...

  • Page 56: 126: Select Language

    2. Programming Commands 126: Select Language The control unit can display messages on the keypads in several languages. Select option for the language you wish to use: English (default) Deutsch (German) Italian Norsk (Norwegian) Espanol (Spanish) Svenska (Swedish) Port (Portuguese) Dansk (Danish) Nederl (Dutch) X1 Suomi (Finnish)

  • Page 57: 131: Sia Report Mode

    2. Programming Commands 131: SIA Report Mode SIA reports are called telegrams. Each telegram contains the site identification number (normally six digits) and relevant event information. The amount of information reported depends on the SIA mode that you select: Basic, Summary, Intermediate or Full. The following table shows the types of report for each mode;...
  • Page 58 2. Programming Commands KEYPAD FIRE KEYPAD PA LID TAMPER LID TAMPER RESTORE 137‡ MAN TRIGGER TEST REPORT PANIC (see note 2) PANIC RESTORE 120‡ PERIODIC TEST REPORT SENSOR SELF TEST FAILURE SENSOR TAMPER SENSOR TAMPER RESTORE 137‡ SMOKE DETECTOR SMOKE DETECTOR RESTORE 111‡...
  • Page 59 2. Programming Commands RESET INTERMEDIATE Event SIA Code CID Code DISARM KEYSWITCH DISARM KEYSWITCH ARM ZONE FAULT ZONE FAULT RESTORE FULL Event SIA Code CID Code COMMS FAIL DOWNLOAD SUCCESS EXCESS KEYS EXPANDER MISSING EXPANDER MISSING RESTORE 137‡ FORBI MISSING FORBI MISSING RESTORE 137‡...

  • Page 60: 132: Send Tampers As Burglary

    Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) requires that Command 134 is set to 1 or 2 (Cooper Security recommends 1). Page 54 497096, Issue 6...

  • Page 61: 135: Line Fault User/Installer Reset

    Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) requires that Command 135 is set to 1 or 2 (Cooper Security recommends 1). 136: Anti-Mask User/Installer Reset Use this command to determine how Anti-Mask alerts are reset.

  • Page 62: 139: Fault User/Installer Reset

    2. Programming Commands Single. The user can override a Line Fault alert when setting the system, provided that only one signalling path is faulty. Any (default). The user can override any number of Line Fault alerts when setting the system. Note: Insurance policies that are conditional on compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) may require that Command 138 is set to 1 or 2 to restrict the user's ability to override alerts.

  • Page 63: 141: Alert Tone On/Off

    2. Programming Commands A user cannot set the system if a Final Exit zone has a supervision fault, even if that zone has the Omit attribute. Insurance policies that are conditional on compliance with PD 6662 / prEN 50131-1: 2004 (see page 86) may require that Command 140 is set to 0 to restrict the user's ability to override alerts.
  • Page 64 2. Programming Commands Command Output Default type 01 Fire 02 PA 03 Burglar 04 Open/Close 15 Zone Omitted 05 Alarm Abort 07 Alarm Confirm 06 Technical Alarm 11 AC Fail 21 Battery Fault 40 All Fault 12 Tamper Alarm Option Not Used System Alarm Fire...

  • Page 65: 159: Invert Plug-By Outputs

    2. Programming Commands Telecommand Low Battery, uCom Fail, Zone AC Fail, Zone Battery Fault, Zone Fault, Zone Low Battery and Zone Pwr O/P). In the event of a mains fail (or if the installer leaves engineering with mains absent) the control unit waits one minute and then logs an AC Alert, but does not start any communication.

  • Page 66: 161: Internal Sounder On Confirmed Or Unconfirmed Alarm

    2. Programming Commands Note: Compliance with DD 243: 2004 (see page 84) requires that Command 160 is set to a value of 30 to 60 minutes. 161: Internal Sounder on Confirmed or Unconfirmed Alarm Note: Set Alarm Confirmation (Command 89) to 1 or 2 to access this command. This command selects whether the control unit will operate the internal sounder for a confirmed alarm or for an unconfirmed alarm.

  • Page 67: 164: User/Engineer Reset After Confirmed Alarm

    2. Programming Commands ° Opening the entry door disables confirmation. ° The user must call the Alarm Receiving Centre (ARC) to unset the system. Select option 2 to comply with DD243: 2004 section 6.4.5, which covers unsetting the system with an item of portable alarm communication equipment (for example, a proximity reader or telecommand).

  • Page 68: 176 To 179: Not Used

    2. Programming Commands Command Value Default Description A/B/C/D abcd Assigns each pulse unset output to one or more levels or partitions. 0 (Off) or 1 Specifies whether each pulse unset output is (On) activated for a Fire alarm. 0 (Off) or 1 Specifies whether each pulse unset output is (On) activated for a PA.

  • Page 69: 180: Print Log (9853 Only)

    2. Programming Commands 180: Print Log (9853 only) This command instructs the control unit to print the event log through the serial port on the main PCB. Selecting option 1 causes events to be printed as they occur until the mode is cancelled by selecting option 0. To print the log during testing, use Command 90, options 0 and 7, as described on page 70.

  • Page 70: 184: Pulsed External Sounder For Fire

    2. Programming Commands 184: Pulsed External Sounder for Fire This command instructs the control unit to send a pulse to bell-type panel outputs (configured with Commands 81–84, option 00) to signal a Fire alarm. This can be used to drive the external sounders, giving a different alarm sound from the normal continuous bell tone.

  • Page 71: 191 To 198: Fast Format Channels

    2. Programming Commands 191 to 198: Fast Format Channels If Fast Format reporting is selected (Command 103, option 0), Commands 191 to 198 enable you to assign types of events to outputs. The commands take two digits to select the type (23-26 apply to a partitioned system only) and have the following defaults: Command Output Default type...

  • Page 72: 199: Display Zone Circuit Resistance

    2. Programming Commands The control unit sends 08 RF Low Battery when the radio detector with a low battery causes an alarm or sends a supervision signal. To enable this facility in day mode set Menu 37 to option 1. 15 Zone Omitted –...
  • Page 73 2. Programming Commands Each entry timer can be assigned to any zone of types FE (Final Exit), ER (Entry Route) and FB (Forbikobler), using the zone programming commands 01 to X40 (see page 7). Set zone attribute X7 to a value between one and four to select the required entry timer.

  • Page 74: 211 To 214: Plug-By Communicator Outputs (9853 Only)

    2. Programming Commands The same principle applies equally well in any other situation where there are multiple entrances with entry routes of different lengths. Managing entry timers in this way enables you to assign the most appropriate of four intervals to each entrance, without being restricted by the way in which you have set up your levels or partitions.

  • Page 75: Testing Commands

    3. TESTING COMMANDS 90: Reading the Event Log The control unit keeps a log of recent events. The log can contain up to 700 events. Each event is described by a short text message. To review the event log, make sure the system is in installer mode and then: Key in 90y.

  • Page 76: Printing The Event Log (9853 Only)

    3. Testing Commands Printing the Event Log (9853 only) Note: 975x models do not have the connector required for event log printing. To print the event log, make sure the system is in installer mode, and then press 90y0. To stop printing, press X. To toggle the logging printer on and off, press 90y7.
  • Page 77 3. Testing Commands Keypad Display Printed (9853 only)* Meaning Bell Tamper Bell Tamper Sounder tampered with Bell Tamper Rst Bell Tamper Restore Sounder tamper reset Burg Z== Alarm Burg: Z== Intruder alarm on zone == Burg Z== Rstr Burg Restore Z== Intruder alarm on zone == reset Bypass Supr.
  • Page 78 3. Testing Commands Keypad Display Printed (9853 only)* Meaning Low Batt Rstr Low battery Restore Low battery detected on control unit Low Batt Rstr Z== Low Batt Rstr Zone Z== Low battery reset on control unit Md K== Alarm K/P Medi K== Medical alarm started at keypad == Override # Override #...
  • Page 79 3. Testing Commands Keypad Display Printed (9853 only)* Meaning U== Remote Dload U== Download OK Download by user == successful U== System Reset U== Reset User – reset system U== Time/Date U== Reset Time/Date Time and date user reset the system U== Z== Omit U== Omitted Z== User omitted zone ==...

  • Page 80: 91 To 96: Testing Outputs

    3. Testing Commands 91 to 96: Testing Outputs You may test parts of the system by entering commands at the keypad. To carry out a test make sure the system is in installer mode and then key in one of the following commands: 91y Test normal outputs: On 975x units, press keys 1 to 3 to toggle outputs 1 to 3 on and off.

  • Page 81: 199: Display Zone Circuit Resistance

    3. Testing Commands 199: Display Zone Circuit Resistance This command lets you step through the zones connected to the control unit, viewing the resistance of the circuit connected to each. Press A (down) and C (up) keys to step through the list of zones. The display shows: the resistance of the circuit in ohms (or O/C for open circuit), the zone type, and the expander type.

  • Page 82: System Configurations

    4. SYSTEM CONFIGURATIONS Using a Partitioned System Introduction When programming a control unit, there are two ways of changing from a single system to a partitioned system: a) during initial power up b) using Command 98. To create a partitioned system during initial power up, refer to the 9x5x Installation Guide.

  • Page 83: Programming Partitions

    4. System Configurations Programming Partitions Once you have selected a partitioned system, you can use the following commands to program each partition: Use Commands 01 to 16 and X17 to X40 to assign each zone to a partition. Each zone defaults to Partition A. Press A to assign zones to Partition A.

  • Page 84: Differences In Commands For Partitioned Systems

    4. System Configurations Differences in Commands for Partitioned Systems When you are using a partitioned system, some commands offer new options and others can no longer be used. The table below summarises the programming differences between partitioned and single systems. Command Partitioned system Single system...

  • Page 85: Common Areas

    4. System Configurations Common Areas Setting up a Common Area You can create a common area linked to two or more partitions. The system sets the common area when the users have set all the linked partitions. When users enter the common area using the appropriate access code, the system unsets it and any partition selected by the user.
  • Page 86 4. System Configurations To see how this works, start with what happens at the end of a working day when all the users leave the building. User A happens to leave first, and sets Partition A from the keypad in Office A. The control unit completes setting Partition A when the user closes zone 2.

  • Page 87: Figure 4. Using A Private Door

    4. System Configurations Figure 4. Using a Private Door Partition A has a separate exit guarded by a Final Exit zone (zone 4). Partition B is set. User A starts setting at their keypad and then leaves by their private door on zone 4.

  • Page 88: Figure 6. Using Two Common Areas

    4. System Configurations Example 2. Double Common Area You are not limited to having one common area. Figure 6 shows three partitions sharing two common areas. Figure 6. Using two Common Areas The control unit sets Common Area 1 when users set Partitions A and B. The control unit sets Common Area 2 when users set Partitions B and C.
  • Page 89 4. System Configurations The Installer places one keypad in each office and one in the lobby. During programming, the Installer assigns each keypad to one partition, making the lobby Partition D, and assigns zone 1 to Partitions A, B, C and D, making it the common area.

  • Page 90: Dd243: 2004 Compliance

    "Confirmation technology (BS DD243 applies) is desirable for newly installed systems but is not mandatory in terms of this policy." Cooper Security therefore recommends that systems in Scotland are installed to comply with DD243: 2004, and Installers obtain copies of the ACPOS policy from their local Police Authority.

  • Page 91: Alarm Filtering

    4. System Configurations Note: There are three new output types (commands 81-84) that you can use to indicate the status of the system: Alarm Confirm, Set Complete and Unset Complete. Alarm Filtering The alarm system should either: a) Have the means to indicate to the Alarm Receiving Centre (ARC) whether the alarm system is set or unset (open and close signals).

  • Page 92: Pd 6662 / Pren 50131-1: 2004 Compliance

    4. System Configurations PD 6662 / prEN 50131-1: 2004 Compliance EN 50131-1: 2004, Alarm systems – Intrusions and Hold-up Systems – Part 1: System Requirements, requires that an alarm system does not display any detailed information until a user enters a valid access code or presents a valid proximity tag.

  • Page 93: Programming For Compliance

    4. System Configurations Programming for Compliance Use the following setting to ensure compliance with PD 6662 / prEN 50131-1: 2004. N/A = Not applicable Command Grade 1/2 Grade 3 Page Notes 9751/2 9853 ≤ 10 min ≤ 10 min ≤ 15 min ≤...
