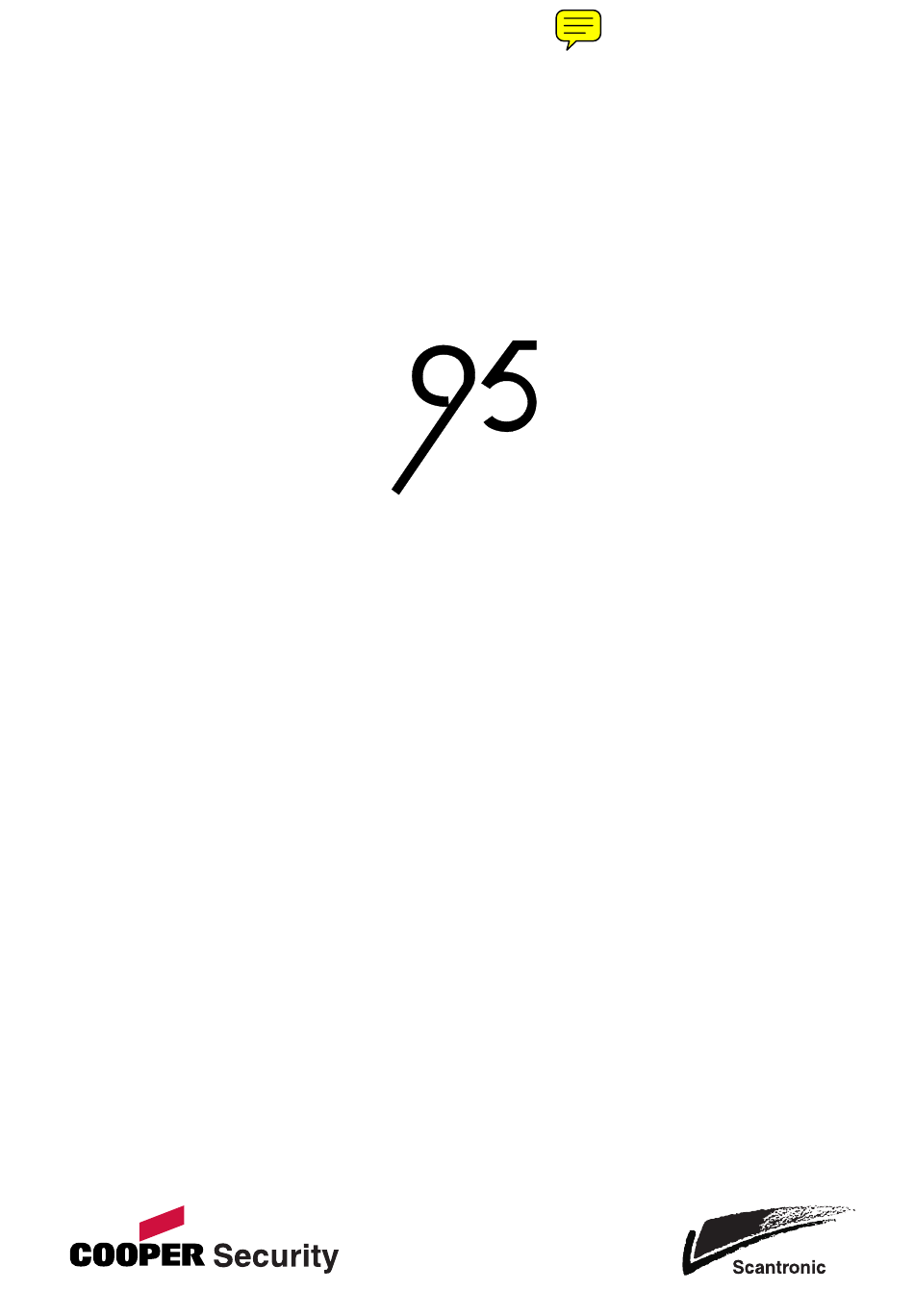

  • Page 1 INSTALLATION INSTRUCTIONS HARDWIRED CONTROL UNIT...
  • Page 2 © Cooper Security Ltd. 2005-2006 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.
  • Page 3: Table Of Contents

    Contents 1. INTRODUCTION..................1 2. PANEL INSTALLATION................5 Fitting and Wiring Procedure ..................... 5 General Wiring Considerations..................5 Cable Type........................5 Cable Segregation ......................6 Cables Routed inside the Control Panel................6 Initial Power-Up Procedure and Checks................6 Zone Wiring........................7 Anti-Masking Zone Connections ..................
  • Page 4 List of Figures 95 Installation Instructions List of Figures Figure 1. 95 Control Panel Layout ..................2 Figure 2. Control Panel PCB ....................3 Figure 3. Overview of Network Wiring Options ..............4 Figure 4. Zone Wiring (Double Pole)..................7 Figure 5. Zone Wiring (FSL)....................7 Figure 6.
  • Page 5: Introduction

    1. INTRODUCTION The layout of the 95 control panel and the main features of the printed-circuit board (PCB) are shown in Figure 1 and Figure 2 respectively. The panel includes a wealth of features, including: • Eight on-board zones. • Two network ports for the connection of keypads, LEC2s, MSNodes, MIDNodes and IDNodes (see Figure 3).
  • Page 6: Figure 1. 95 Control Panel Layout

    1. Introduction 95 Installation Instructions Fused Fixing hole (1 of 3) Mains terminal block Terminal Block Mains transformer Back tamper switch mounting slots Mains cable entry ONLY Printed Circuit Board (PCB) Battery position Fixing hole (3 of 3) Fixing hole (2 of 3) Figure 1.
  • Page 7: Figure 2. Control Panel Pcb

    95 Installation Instructions 1. Introduction LED2 LED3 LED10 LED12 LED13 BATT LED5 LED6 Figure 2. Control Panel PCB Ref Description See Page Ref Description See Page Zone connectors 14. AC input connector Network 1 connector 15. Battery connector Network 2 connector 16.
  • Page 8: Figure 3. Overview Of Network Wiring Options

    1. Introduction 95 Installation Instructions Wiring Option 1 Max 16 MSNodes Network 1 2 Outputs 2 Outputs 2 Outputs 1 km max to furthest CONTROL MSNode MSNode MSNode 100m max 100m max MSNode PANEL 8 Zones 8 Zones 8 Zones Network 2 An MSNode is capable of driving 4...
  • Page 9: Panel Installation

    2. PANEL INSTALLATION Fitting and Wiring Procedure To install the control panel: Remove the front cover by releasing its three retaining screws. Caution: Mains voltages may be present at the mains terminal block (see Figure 1). Connect any optional modules to the PCB. Slide the back tamper switch mounting plate into the slots shown in Figure 1.
  • Page 10: Cable Segregation

    2. Installation 95 Installation Instructions Cable Segregation All network and zone wiring must be segregated from any other wiring, such as mains supply cables, telephone cables, computer network cables and R.F. cables. It is recommended that cable ties are used to keep cables separated. The network and detection cables should be kept clear of cables supplying sounders or extension loudspeakers.
  • Page 11: Zone Wiring

    95 Installation Instructions 2. Installation Use the Engineer menu options to set up the system, as described in the 95 Engineering Manual. 10. Test system operation. Zone Wiring ("1" in Figure 2.) The control panel has a set of eight on-board terminal blocks for the connection of alarm sensors, such as door contacts and PIR detectors.
  • Page 12: Anti-Masking Zone Connections

    2. Installation 95 Installation Instructions Alarm Shunt Resistor End-of-Line Resistor ( ±5%) ( ±5%) Table 1: Resistors for Zones Wired using the FSL Method When using the FSL method, two cores are used for each zone. When using the "double-pole" method, four cores are used. It is recommended to use only one detector per zone, otherwise when an alarm or tamper condition arises, the source of the alarm/tamper will not be known.
  • Page 13: Network 1 And 2 Connections

    95 Installation Instructions 2. Installation Open Circuit Tamper Alarm Masked 9.1k Anti-mask 6.9k Alarm 4.4k Masked Alarm 2.2k Healthy Tamper Short Circuit Tamper Alarm Figure 6. Wiring a Zone that uses Anti-Masking Network 1 and 2 Connections ("2" and "3" in Figure 2.) Networks 1 and 2 can connect to one of the following (see Figure 3): •...
  • Page 14: Telephone Connections

    2. Installation 95 Installation Instructions Control Panel Network A B C D E Note: "C" may be marked "C/F", and "E" may be marked "E/G" on the PCB 6 Core Alarm Cable Power for Remote detectors I/D=1 Keypad Spare core used to double up "B"...
  • Page 15: Approved Usage

    95 Installation Instructions 2. Installation Optional connection to only one other item of equipment (e.g. fax or answer machine). While the control panel is communicating, any device connected to the "Diverted Line" is automatically disconnected. Use cable type 1/05mm CW1308 Diverted Line Ensure polarity...
  • Page 16: Digital Communicator Outputs

    2. Installation 95 Installation Instructions Usage other than approved usage or failure to comply with the instructions may invalidate any approval given to the apparatus, if, as a result, the apparatus ceases to comply with the standards against which approval was granted.
  • Page 17: Relay Outputs

    95 Installation Instructions 2. Installation + 12 V Aux 12 V Aux 12V Diode (IN4001) Smoke Relay -ve O/P Detector (Programmed as Alarm / Bell / etc) -Ve O/P 12V relay capable (Programmed as Detector Reset) of switching mains voltages Aux 12V Aux 12V 1K0 Ohm Resistor...
  • Page 18: External Bell/Sounder Connections

    2. Installation 95 Installation Instructions • If you connect to N/O, the contact between COM and N/O is normally open, and is closed only when the output is active. • If you connect to N/C, the contact between COM and N/C is normally closed, and is opened only when the output is active.
  • Page 19: Auxiliary Tamper Input

    95 Installation Instructions 2. Installation TRG - This is the bell trigger output, which switches to 0V on alarm and is rated at 500mA. This output can be programmed for SAB or SCB operation, and operates as follows: SAB switches to 0V on alarm and provides a maximum of 500mA. SCB provides a negative hold off (500mA), which is removed on alarm.
  • Page 20: Remote Reset Input

    2. Installation 95 Installation Instructions Remote Reset Input ("12" in Figure 2.) For alarms that require an engineer or remote reset, the system can also be reset by applying 0Vdc to the REM RST input terminal. This can be achieved by routing 0V from terminal block ("16"...
  • Page 21: Ac Input Connector

    95 Installation Instructions 2. Installation AC Input Connector ("14" in Figure 2.) The two outer terminals of the AC IN connector connect to the 17VAC output from the mains transformer. Battery Connector ("15" in Figure 2.) Note: Do not connect the battery until all other wiring has been completed. The BATT terminals are for connection to a +12Vdc standby battery.
  • Page 22: Factory Restart Connector

    2. Installation 95 Installation Instructions Factory Restart Connector ("18" in Figure 2.) If the pins of the FACTORY RESTART connector are shorted during power- up, all system parameters are reset to their factory default settings, including the engineer passcode, as documented in the 95 Engineering Manual. Ensure that the terminals remain shorted until the heartbeat LED (LED1) flashes.
  • Page 23: Output Module Connector

    95 Installation Instructions 2. Installation Output Module Connector ("20" in Figure 2.) CPA6 output modules can be connected to the OUTPUT MODULE connector to provide eight additional 100mA switched-negative programmable outputs per module. The outputs can be used to drive LEDs or other low-power devices (see Figure 17).
  • Page 24: Serial Connection To Pc

    2. Installation 95 Installation Instructions Keypad Engineer's keypad connector on control panel polarising Figure 18. Engineer Keypad Connections Serial Connection to PC ("22" and "23" in Figure 2.) Optionally, a local PC running the Downloader software can be connected to the control panel for system configuration and data uploading.
  • Page 25 95 Installation Instructions 2. Installation Using Table 4, calculate the total current taken by all devices used (except the battery), and make sure that this does not exceed the available current. If the current required exceeds the amount available, add power supplies. Fitted Battery Size Available Current Grade 1 or 2 580mA...
  • Page 26: Connecting To The Mains Supply

    2. Installation 95 Installation Instructions Connecting to the Mains Supply CAUTION: ENSURE THAT THE MAIN SUPPLY IS DISCONNECTED AND ISOLATED BEFORE MAKING ANY MAINS CONNECTIONS. All mains electrical connections must be carried out by a qualified electrician and must comply with the current local regulations (e.g. IEE). The supply must be fed from an un-switched fused spur fitted with a 3A fuse.
  • Page 27: Leds

    95 Installation Instructions 2. Installation LEDs The LEDs (see Figure 2) have the following meanings: • LED1 (heartbeat) – Flashes once per second to indicate that the panel is operating. The LED flashes rapidly after a reset. • LED2 (network 1 fuse) – Monitors the polyfuse for network 1. When illuminated, the LED indicates that the 12V supply to network 1 is open circuit.
  • Page 28: 3. 9950/9951 Keypad Installation

    3. 9950/9951 KEYPAD INSTALLATION Note: Please refer to the Keypad Installation Instructions for further details. The front of the keypad can be removed from the back plate by releasing the two screws at the bottom of the case. 9950 Mounting Locations Excessive interference with external devices may lead to poor read performance.
  • Page 29: Zone Wiring (Optional)

    95 Installation Instructions 3. Technical Description Zone Wiring (Optional) The keypad can support two fully-supervised loop zones (CCL/double-pole wiring not supported). Contacts are normally closed; if normally open, program zone with the "Inverted" attribute. Note: If you are powering the sensor from the keypad (see page 20 for power availability figures), an additional two cores are required for connection to the A (+12Vdc) and B (0V) terminals.
  • Page 30: Setting The Address

    3. Technical Description 95 Installation Instructions Setting the Address Set the address of the keypad to 1, 2, 3 or 4 by fitting the jumper across the appropriate link, or set to address 5 by leaving the jumper off. The maximum number of keypads depends on the panel type and network number;...
  • Page 31: Technical Description

    4. TECHNICAL DESCRIPTION Technical Specifications Environmental EN50130-5:1998, Class II Security PD6662: 2004, EN50131-1:2006, TS50131- 3:2003, EN50131-6:1997, Grade 1, 2 or 3. See page 20. DD243:2004. Mains Supply: 145mA @ 230Vac±10%, 50Hz PCB Power Supply: 13.65VDC, 1.5A. Type A. A maximum of 750mA is available for the control panel PCB and other devices (excluding battery recharge) Standby Battery:...
  • Page 32: Electromagnetic Compatibility

    /EEC). Any modifications other than those stated in this manual, or any other use of this product may cause interference and it is the responsibility of the installer to comply with the EMC and Low Voltage Directives. Cooper Security Ltd. Security House Vantage Point Business Village...
