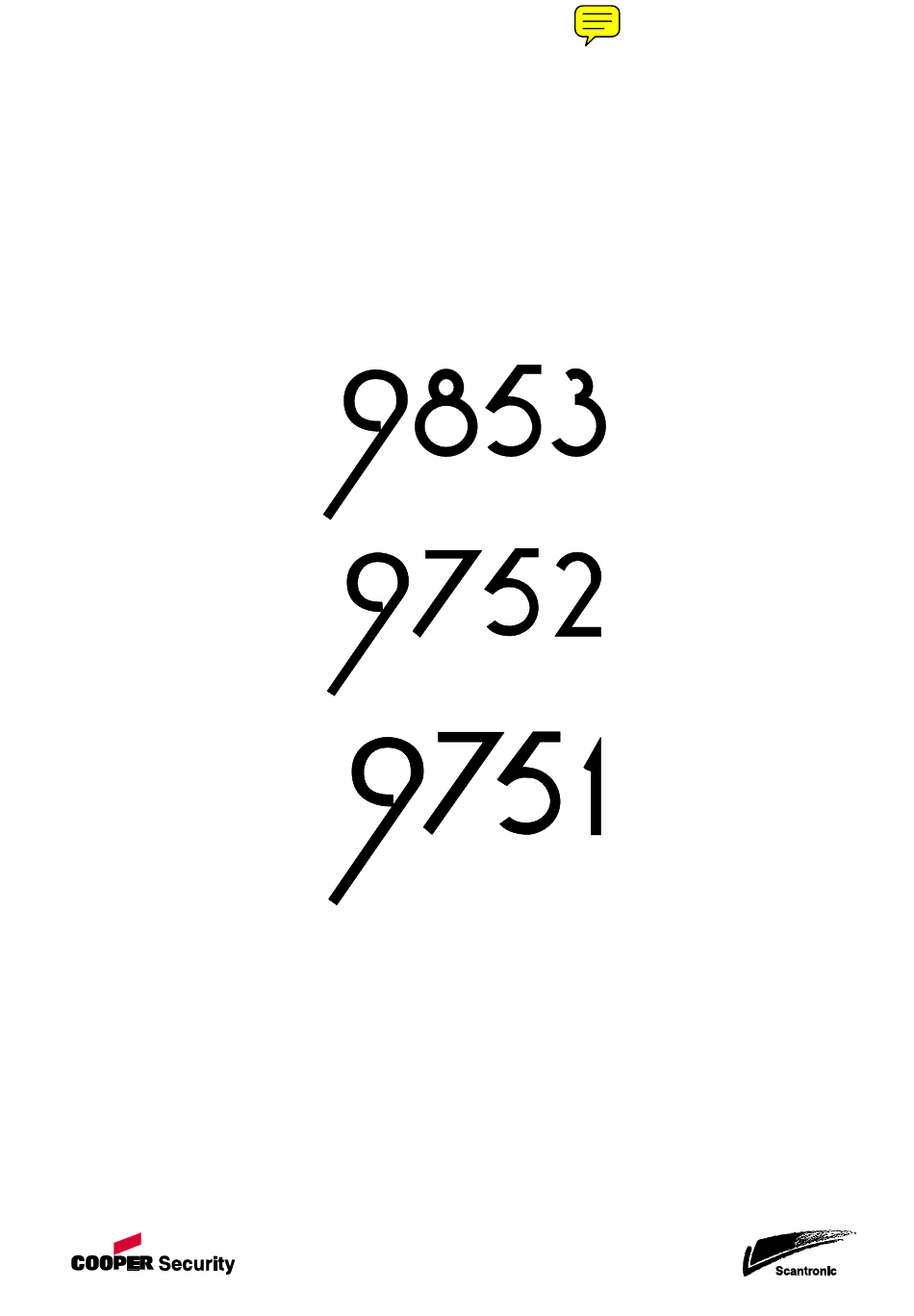

- Page 1 9x5x QUICK REFERENCE PROGRAMMING GUIDE HARDWIRED CONTROL UNITS...
- Page 2 © Cooper Security Ltd. 2009 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.
- Page 3 9x5x Quick Reference Programming Guide The cross-references shown in this guide refer to Issue 3b of the 9x5x Programming Guide (part number 497096). Command Key in: Command Key in: Country PTT Defaults (page 7) Zone attributes, any of: X1 = C (Chime) Country: X2 = S (14-day Soak Test) 0 = UK...
- Page 4 9x5x Quick Reference Programming Guide Command Key in: Command Key in: Remote Reset Enable (page 15) Daytime Tamper Communication 23yny 37yny (page 19) 0 Off 0 Internal sounder only 1 On 1 Communicate tamper to ARC Note: Set Command 33 to Option 1 System Tamper User/Engineer Reset 38yny Show Control Unit Account Name...
- Page 5 9x5x Quick Reference Programming Guide Command Key in: Command Key in: Tamper Alarm Response – single External Sounder Tamper (page 28) 46yny 59yny system only (page 23) 0 Negative voltage tamper return 0 Internal sounders only 1 End of line 2k2 resistor 1 Keypad sounders only Level/Partition B Final Exit Operation 60yny...
- Page 6 9x5x Quick Reference Programming Guide Command Key in: Command Key in: Forbikobler Door Timer (page 31) Level/Partition D Exit Mode (page 34) 68yny 76yny 0 2 seconds In a single system: 1 3 seconds 0 Timed low tone on setting 2 4 seconds 1 Instant (no exit tone) 3 5 seconds...
- Page 7 9x5x Quick Reference Programming Guide Command Key in: Command Key in: Output 1 Type (page 36) This command has been replaced by 81ynny the changed command 29 nn = Where n is one of: Keypad Dual Key Alarms (page 39) 87ynynyny In a single or partitioned system: Use A or B keys to scroll through PA, FI and MD.
- Page 8 9x5x Quick Reference Programming Guide Command Key in: Command Key in: C101-158 are for programming communications. Answer on One Ring – Downloading 113yny option (page 46) Call Mode (page 41) 101yny 0 One ring off 0 Disabled 1 One ring on 1 Single Access Mode (page 47) 114yny...
- Page 9 9x5x Quick Reference Programming Guide Command Key in: Command Key in: This command has been replaced by Plug-by Communications Output 1 151ynny command 55. (page 57) Telecommand Requires Entry for nn = 00 Not Used 129yny Unset (page 50) 01 Fire 0 External Unset Off 02 PA (not sent in Duress, see option 41 below).
- Page 10 9x5x Quick Reference Programming Guide Command Key in: Command Key in: Plug-by Communications Output 2 Pulse Set 1 to 4 Duration (page 61) 152ynny 170y (page 57) nnynny nnynny See Command 151 for a list of options. 01 seconds nn = 00 to 12 seconds Default is 02 PA Pulse Set Allocation (page 61)
- Page 11 9x5x Quick Reference Programming Guide Command Key in: Command Key in: C191-198 are for programming communications. Fast Format Channel 5 (page 65) 195ynny Fast Format Channel 1 (page 65) See Command 191 for a list of options. 191ynny Default is 15 Zone Omitted nn = 00 Not Used 01 Fire...
- Page 12 9x5x Quick Reference Programming Guide Command Key in: C211-218: programming communications (9853 only). Plug-by Communications Output 9 211ynny (page 68) – 9853 only See Command 151 for a list of options. Default is 11 AC Fail Plug-by Communications Output 10 212ynny (page 68) –...
