10. Reassembling the unit

In most instances, reassembly is a straightforward reversal of the disassembly process.
Ensure all earth connections are fully tightened.

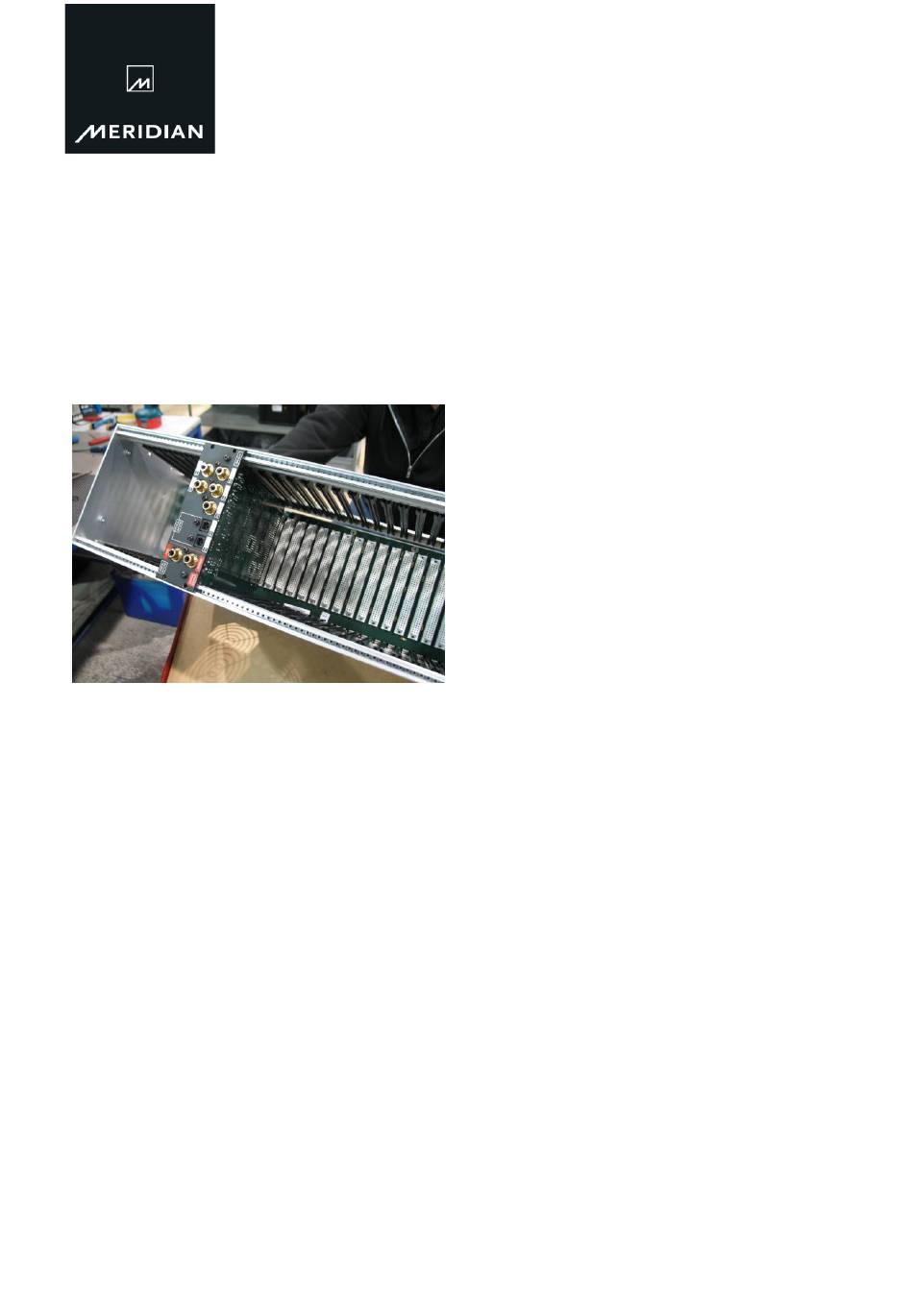

(10.1) Fitting the Motherboard

To ensure the Motherboard is aligned correctly,
locate it inside the chassis without securing it.
Slide one of the plug-in boards into the guide
rails to align the Motherboard. Using a suitably
ling screwdriver, secure the Motherboard with 6
x M2.5 screws along the top edge of the board
