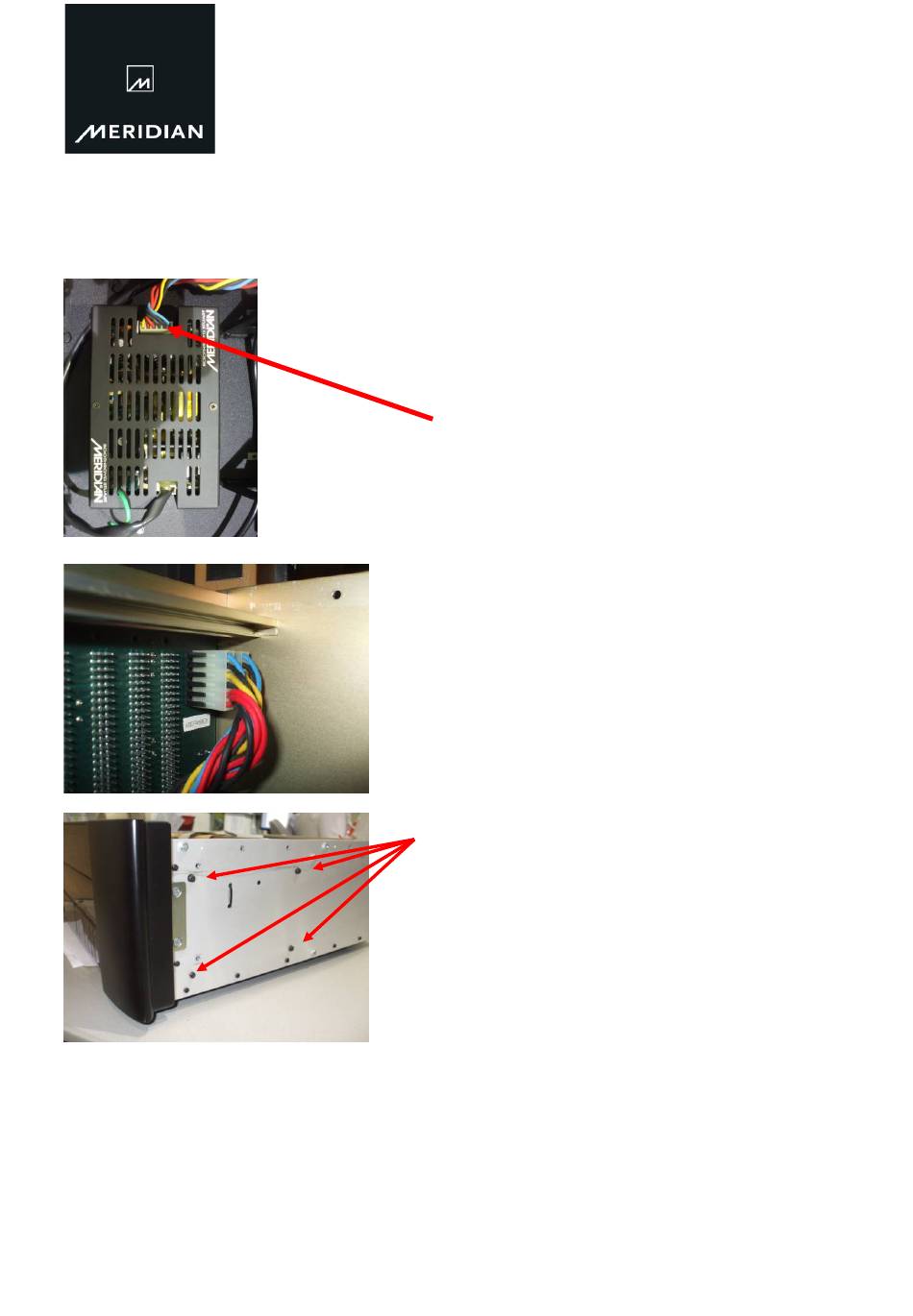

(7.3) Removing and replacing a side-mounted Cap board

Disconnect the output cable loom from the PSU
(old-style PSU shown).
Disconnect the two looms connecting the Cap board
to the Motherboard.
Remove the Cap board by undoing the four screws
securing it through the side of the chassis.
Retain all fixing screws, washers and the hexagonal
mounting-pillars used on the Cap board as these
parts will be required to mount the new board.
