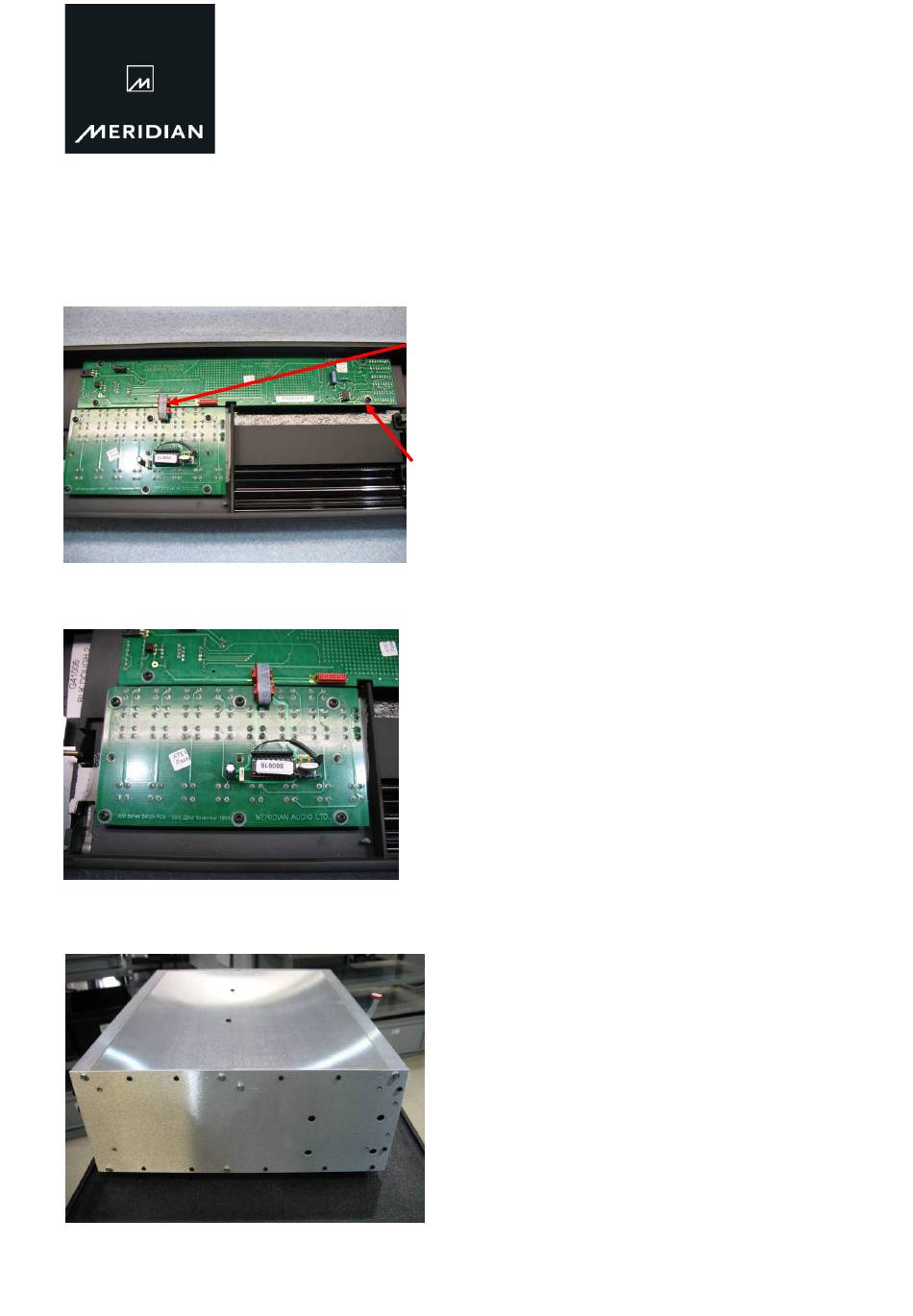

(6.3) Removing the Display board

(6.4) Removing the Switch board

(6.5) Removing the Inner Lid

Noting its orientation, disconnect the small loom from
between the Display board and Switch board.
Remove the four Torx T10 screws and nylon washers
from the Display board. The Display board can now be
removed.
Noting its orientation, disconnect the loom between
Display PCB and Switch PCB.
Remove 6 off Screws and Nylon Washers from Switch
PCB. Remove Switch PCB
On each side of the chassis remove the four
black self-tapping screws which secure the
inner top cover to the chassis.
There will be one or two screws on the top of
the inner top cover. Remove the screw(s)and
the associated nylon washer(s). Remove the
inner cover
.
