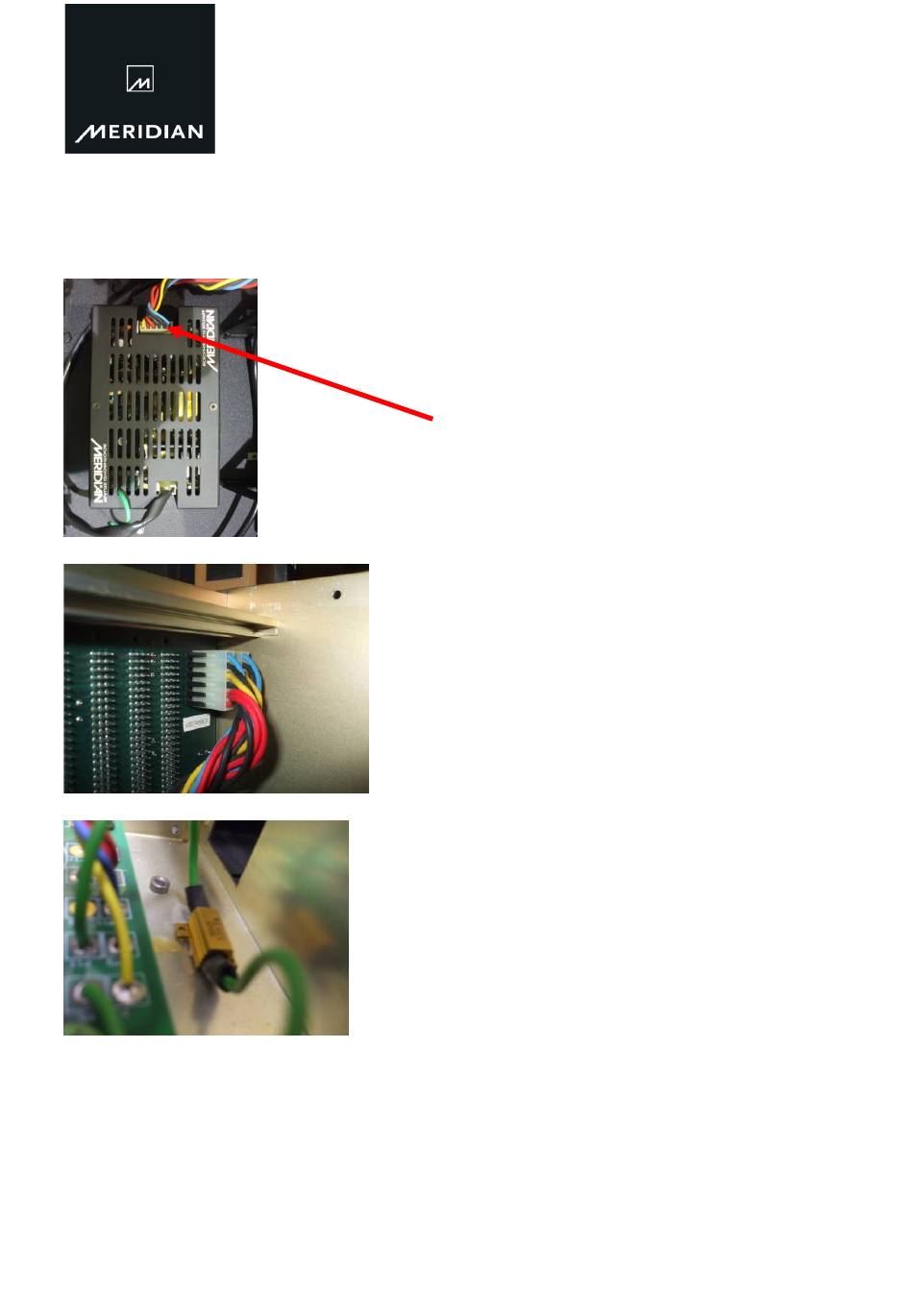

(7.2) Removing and replacing a floor-mounted Cap board
Disconnect the output cable loom from the PSU
(old-style PSU shown).
Disconnect the two looms connecting the Cap board
to the Motherboard.
If fitted, this loading resistor needs to be detached
from the chassis. It is bonded to the case with
adhesive and can be prised off without too much
effort. The replacement Cap board does not feature
such a resistor, so it can be discarded.
