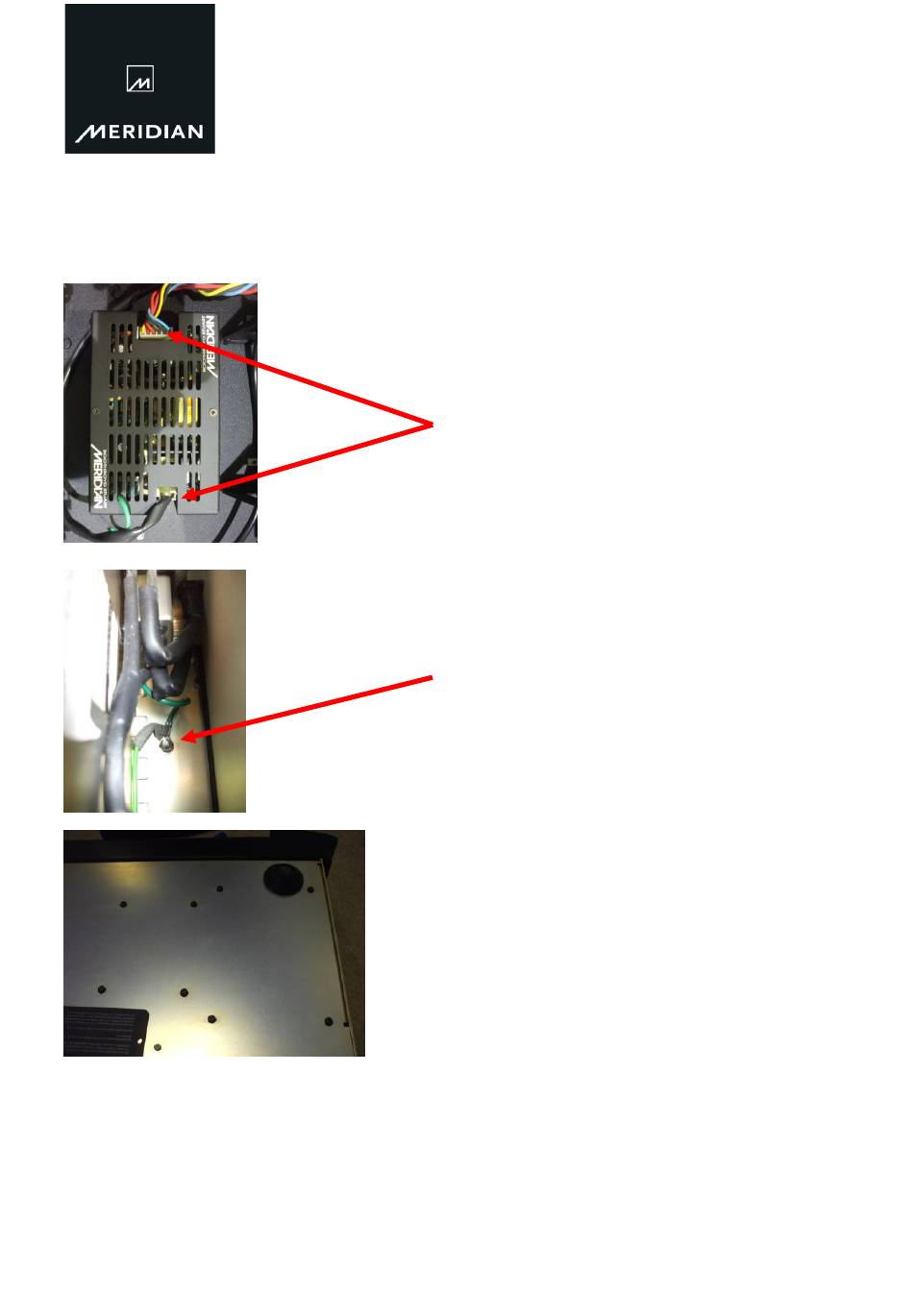

(7.4) Removing and replacing the older type of PSU
Disconnect the input and output cable looms from
the PSU.
Undo the nut retaining the grounding cable to the
chassis and remove the cable from the stud. This is
located on the floor of the chassis in the void behind
the mains inlet.
Release the PSU from the unit by undoing the four
screws on the underside of the chassis.
Retain all fixing screws and washers as these parts
will be required to mount the new assemblies
