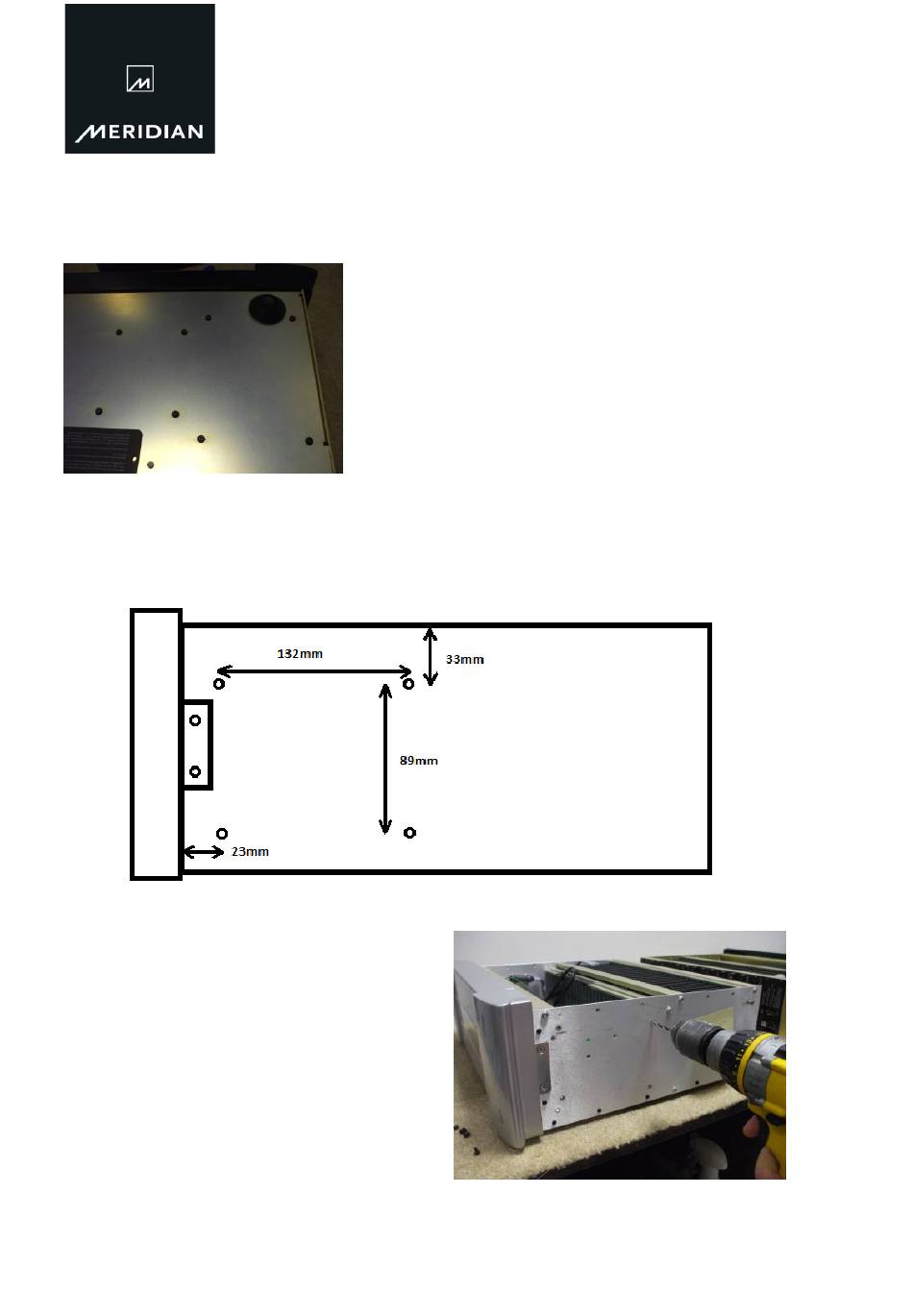

Position of holes in side of chassis for fitting new-type Cap board to units previously fitted
with "floor-mounted" Cap board:
Using a 3.5mm drill bit, make four holes in the side
of the chassis as shown in the diagram above. The
new Cap board can also be used as a template to
assist with this task.
Ensure that no metal debris is left within the unit!
The new Cap board should be fitted using the mounting screws, washers and hexagonal pillars retained from
the old board.
Remove the Cap board by undoing the four screws
securing it to the chassis through either the
underside or the side of the chassis as relevant.
Retain all fixing screws, washers and the hexagonal
mounting-pillars used on the Cap board as these
parts will be required to mount the new assembly
