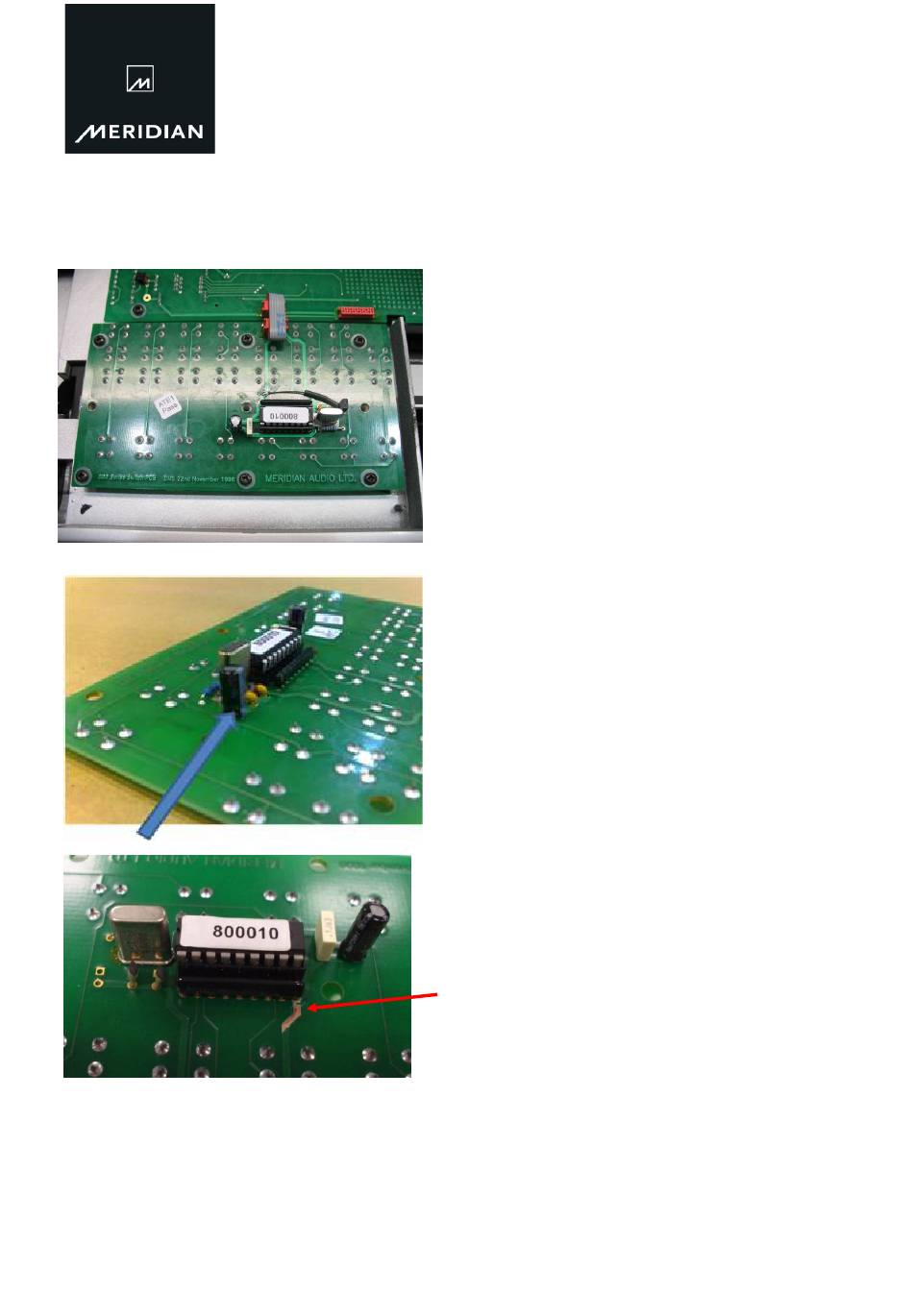

Noting the orientation, disconnect the loom between
the Display board and the Switch board.
Remove the six screws and nylon washers from the
Switch board. Remove the Switch board.
Remove capacitor C3
Scrape away a section of the solder-resist layer of
this track as shown here
