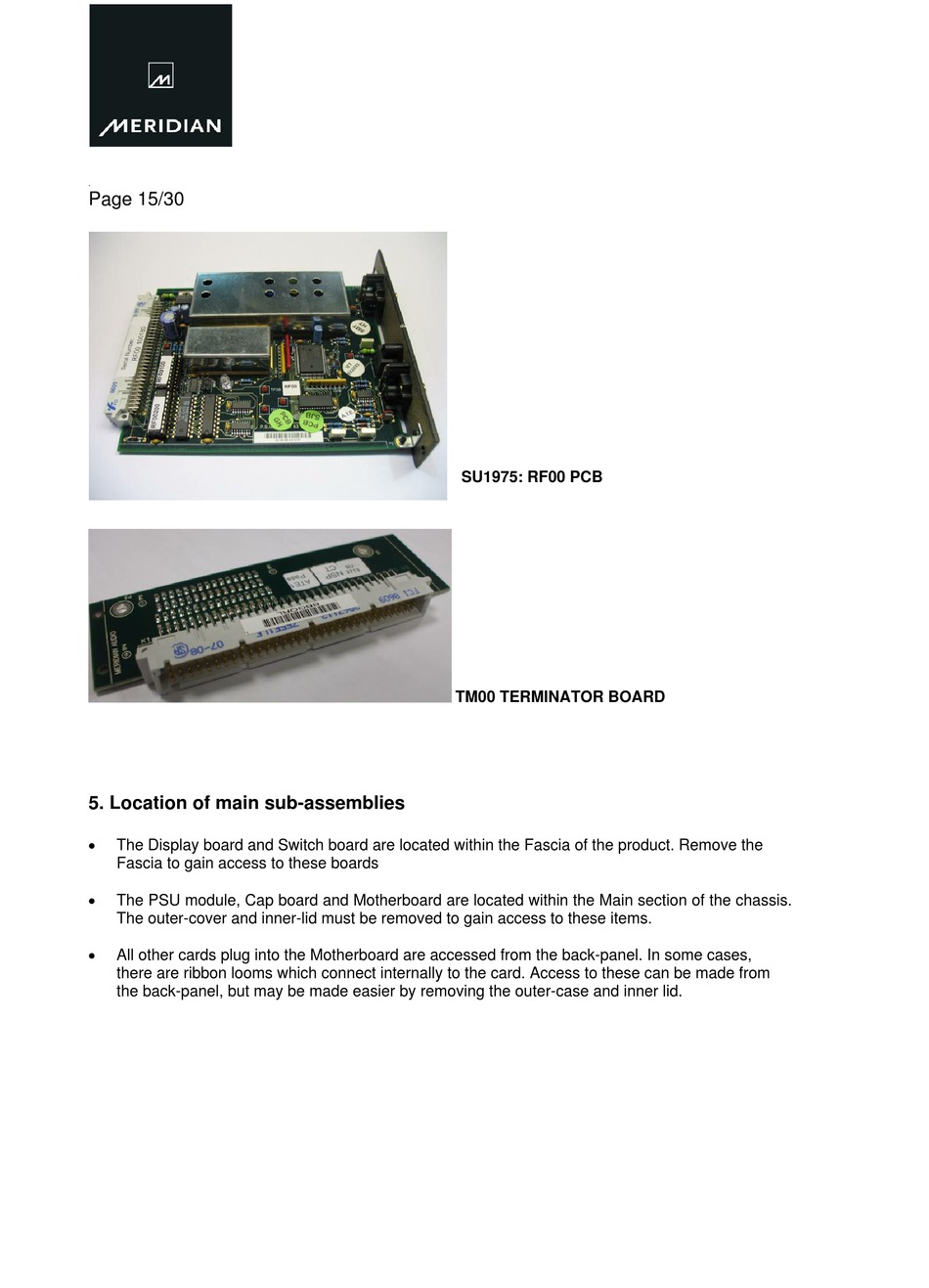

5. Location of main sub-assemblies


The Display board and Switch board are located within the Fascia of the product. Remove the
Fascia to gain access to these boards

The PSU module, Cap board and Motherboard are located within the Main section of the chassis.
The outer-cover and inner-lid must be removed to gain access to these items.

All other cards plug into the Motherboard are accessed from the back-panel. In some cases,
there are ribbon looms which connect internally to the card. Access to these can be made from
the back-panel, but may be made easier by removing the outer-case and inner lid.
SU1975: RF00 PCB
TM00 TERMINATOR BOARD
