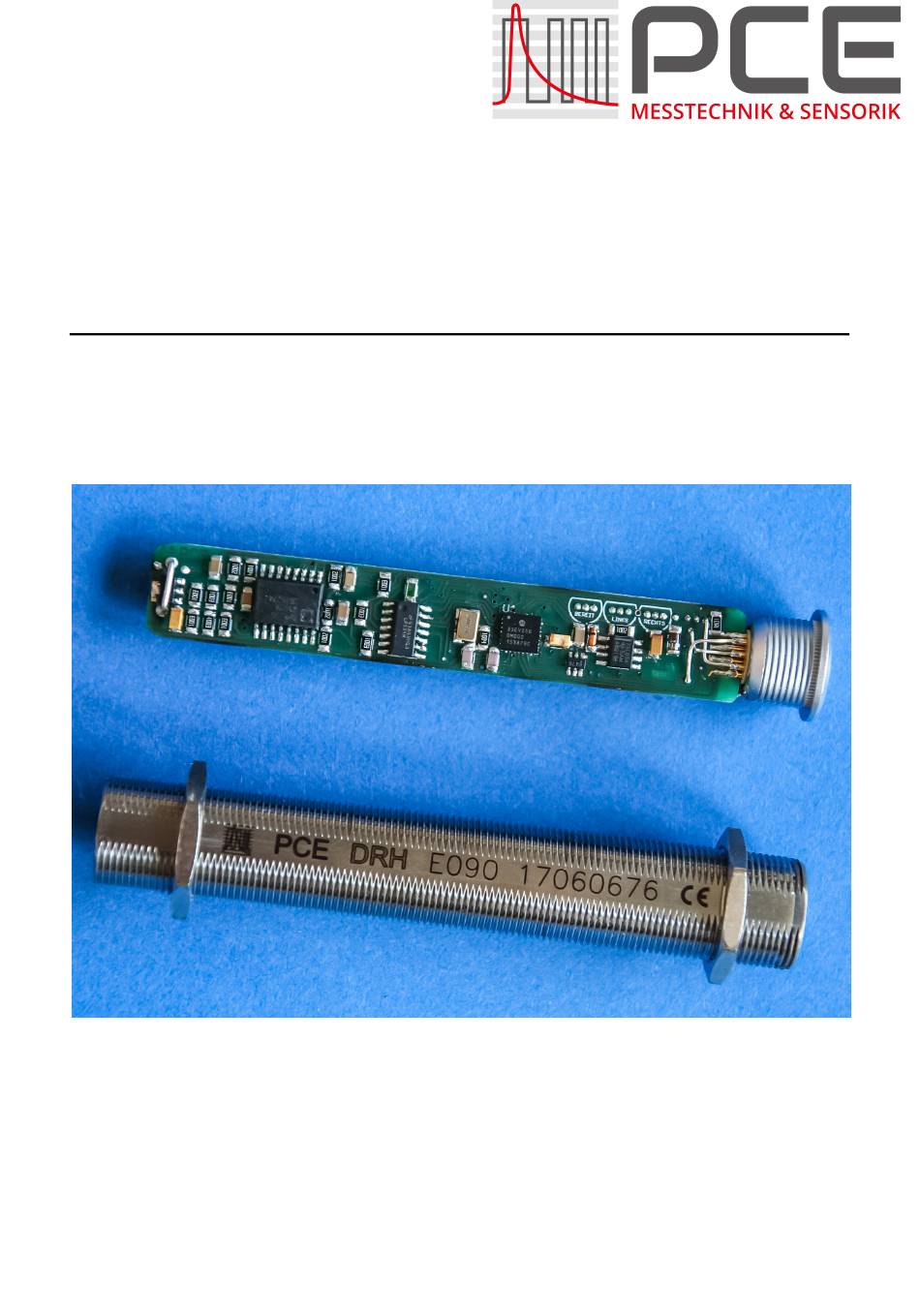

- Page 1 PCE Messtechnik UG Technical description DRH E Rotational direction sensor version 6.0 with output for speed measurement...
- Page 2 1. Description The rotational direction sensor is able to contactless detect a direct current motor`s direction of rotation. The rotational direction is detected as soon as the motor is started (the magnetic field changes when the motor is swichtched on) and is evaluated logically. The measuring result is available as h-level at the digital outputs OUT ROTATIONAL DIRECTION 1 or OUT ROTATIONAL DIRECTION 2.
-
Page 3: Measuring Instrument
Electric data Min. operating voltage 23 V- Max. operating voltage 25 V- Max. output current of digital outputs 100 mA - OUT ROTATIONAL DIRECTION 1 - OUT ROTATIONAL DIRECTION 2 - OUT START MOTOR Max. output current 4 mA - MEASURING INSTRUMENT Max. -
Page 4: Positioning The Sensor
This results in the following positions for the different models: 4.1 Picture of rotational direction sensor sensor connection Sensoranschluß abgeflachte Seite flattened side 4.2 DRH E 030 = 30° setting angle (C)2022 PCE Messtechnik UG, Bölgenweg 6, 77855 Achern Page:4 www.pce-achern.de... - Page 5 4.3 DRH E 090 = 90° setting angle 4.4 DRH E 180 =180° (or0°) setting angle Caution! Attention must paid to the sensor`s positions relative to the motor. It is only possible to correctly determine the rotational direction in the gap between the stator magnets.
-
Page 6: Order Details
5. Order details 30° version: DRH-E 030 90° version: DRH-E 090 180° version: DRH-E 180 Attention: The DRH-E version need ten minutes “warm-up-time” after delivering of power. 6. Compensation of an interfering magnetic field with the PCE TEST-BOX-3 1. Compensation of an interfering magnetic field. In the "Internal"... - Page 7 (C)2022 PCE Messtechnik UG, Bölgenweg 6, 77855 Achern Page:7 www.pce-achern.de...
- Page 8 PCE Messtechnik UG Bölgenweg 6 D-77855 Achern Phone 049/7841-5373 Fax 049/7841-9271 www.pce-systems.com info@pce-achern.de (C)2022 PCE Messtechnik UG, Bölgenweg 6, 77855 Achern Page:8 www.pce-achern.de...
- Page 9 PCE connecting cable Clac 802 Connect the Clac 802 connection cable to the sensor. DO NOT twist the plug while unplugging it. If the plug is twisted it can cause a short circuit through the wacky cable and can destroy the sensor ©...
