Quick Start

To attach the MultiSync
these instructions:
1. Turn off the power to your computer.
If you are using the signal cable, continue to step 2.
If you are using a BNC cable, please skip to Step 3.
NOTE: BNC cables may be purchased at your local electronics store.

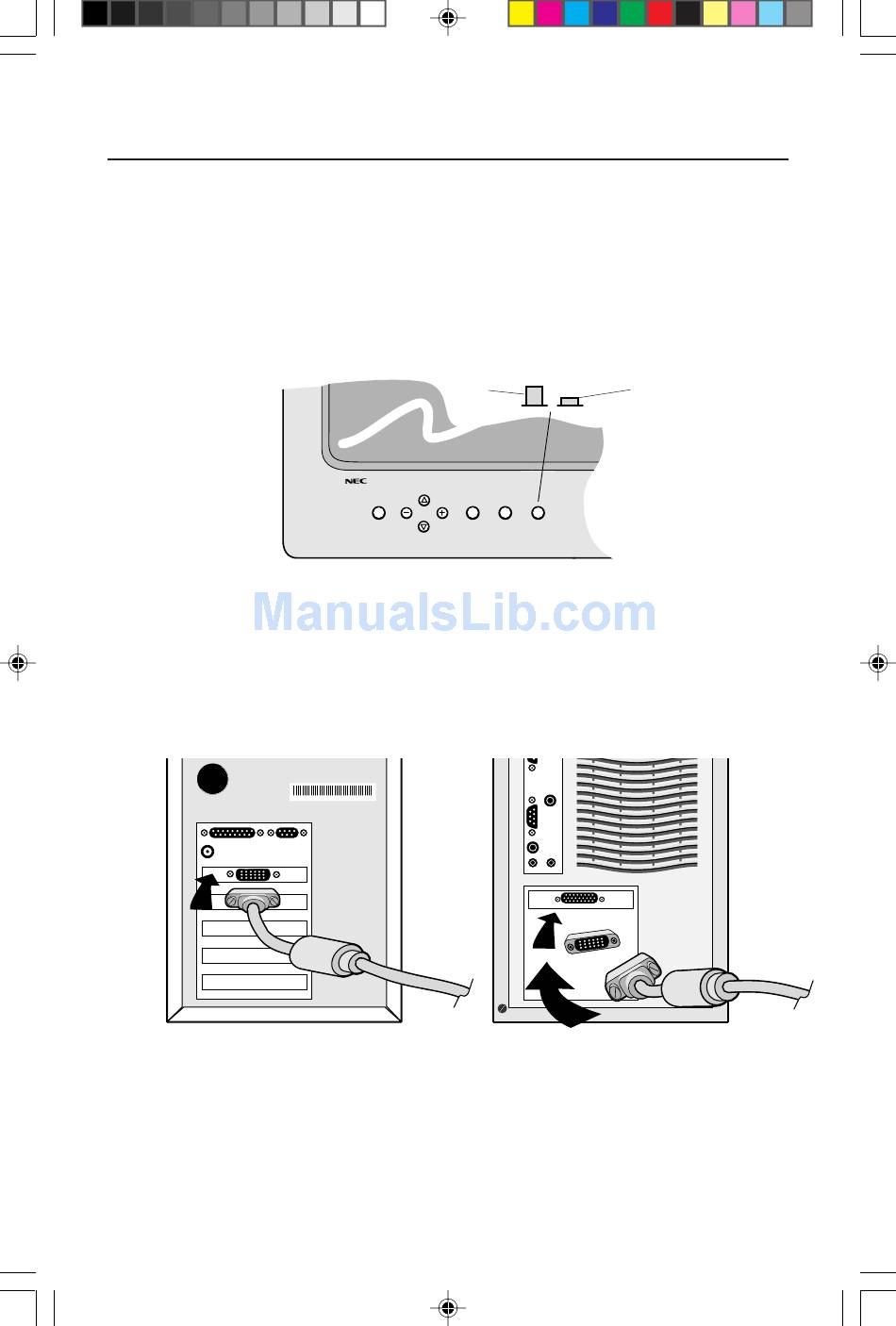

2. Make sure the BNC/D-SUB switch on the front of the monitor is set to the D-SUB
(in) position (Figure A.1).
For the PC: Connect one end of the 15-pin mini D-SUB signal cable
to the connector of the display card in your system (Figure B.1) and the other end to
the back of the monitor (Figure B.2). Tighten all screws.
For the Mac: Connect the Macintosh cable adapter to the computer (Figure C.1). Attach
one end of the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure
C.1) and the other end to the back of the monitor (FigureC.2). Tighten all screws.
Proceed to step 4.
3. Make sure the BNC/D-SUB Switch on the front of the monitor is set to the BNC (out)
position (Figure A.1).
Connect the BNC cable to the appropriate connectors on the back of the monitor.
Connect the red BNC cable to the BNC connector on the monitor labeled R, the green
BNC cable to the BNC connector labeled G (/Sync), the blue BNC cable to the BNC
connector labeled B. If you have a fourth BNC connector (Composite Sync), connect it to
