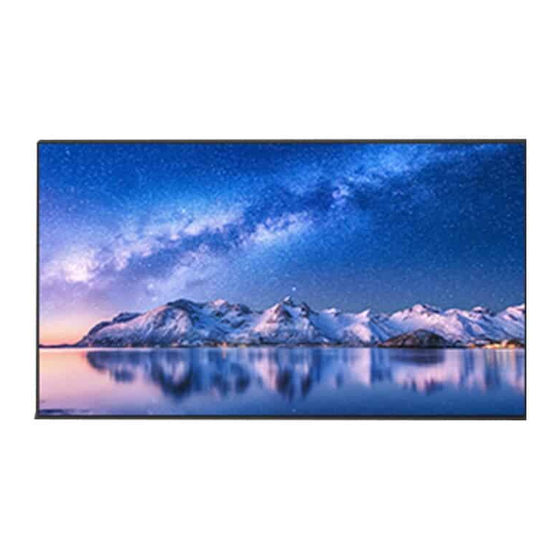

MAXHUB ND43PNC User Manual

MAXHUB ND43PNC User Manual

Intelligent multimedia display

Advertisement

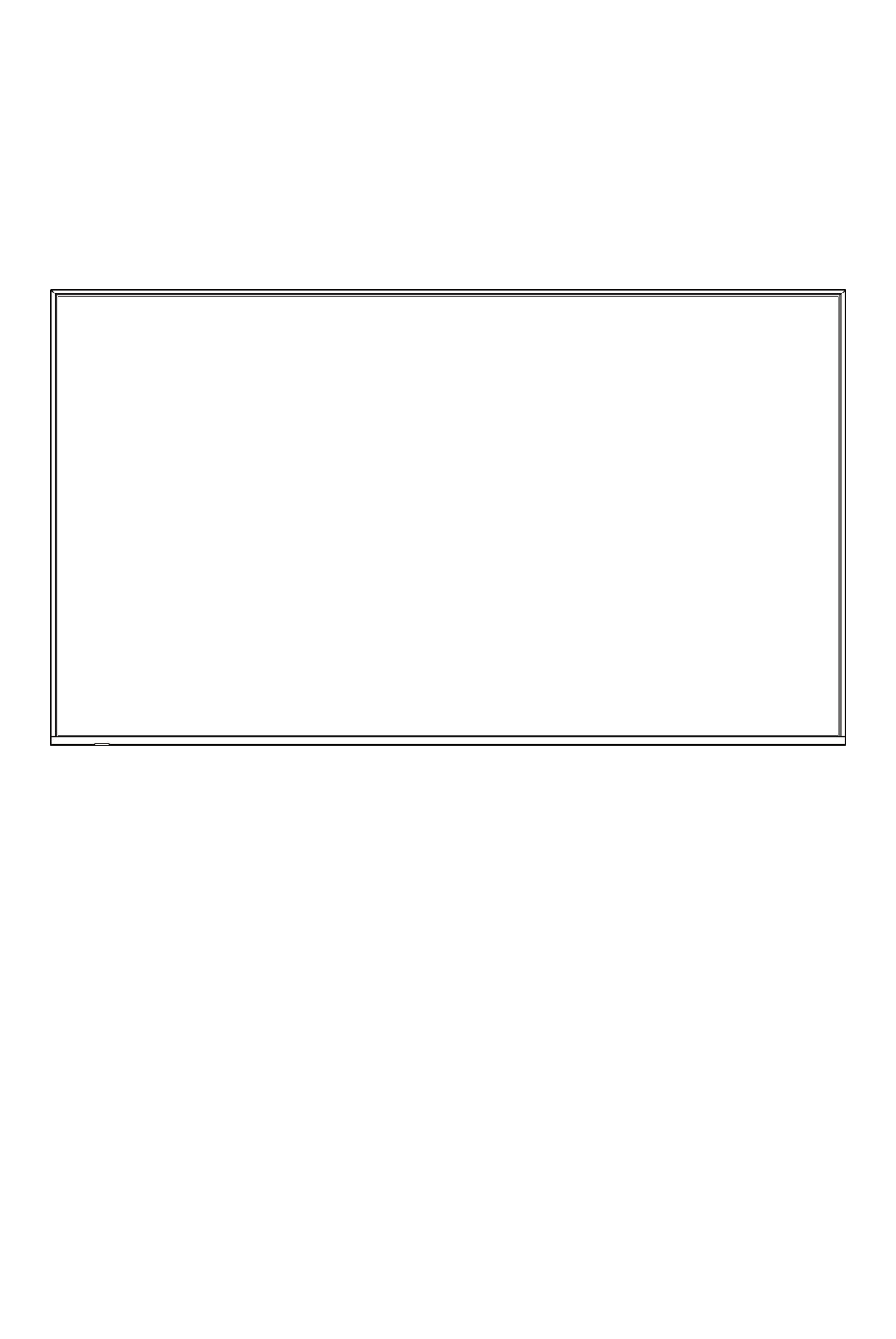

Intelligent Multimedia Display
User Manual
Note:All the pictures in this manual are for reference only, subject to our available products.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ND43PNC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MAXHUB ND43PNC

  • Page 1 Intelligent Multimedia Display User Manual Note:All the pictures in this manual are for reference only, subject to our available products.
  • Page 2: Table Of Contents

    Contents Safety Warning ................................ 1 FCC Statement ................................ 4 FCC Warning ................................4 Control Panel ................................5 Connection and Setting ............................7 Remote Control ..............................10 Maintenance ................................14...
  • Page 3: Safety Warning

    Safety Warning Before operating, please read this manual thoroughly, and keep it for future reference. Image shown in this manual is indicative only. There may be differences between the pictures and the actual product, please prevail in kind. Placement Do not put heavy objects on top of the unit. Do not put the unit near appliances that generate magnetic fields.
  • Page 4 Never use water or the spray type detergent to clean the unit. Never use any other hard or sharp object to replace the touch pen. Better for the panel lifetime and the display performance, do not display high brightness image for long time.
  • Page 5 Earphone Before using earphone, please turn down the volume in advance. Using the earphone to listen loud sound for a long time might affect the hearing. Standby It will enter standby mode but not turn off the unit after press the standby key. Battery Please make sure the battery gets proper disposal or recycle after using.
  • Page 6: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 7: Control Panel

    Control Panel 1. Prepare to Install Number Items Function description Remote control Receive the remote signal. signal receiver Press to scroll left Press to scroll right Press to scroll up Press to scroll down INPUT Pop up channel Setting MENU Pop up Settings menu Tap to enter energy-saving,press at least 2 seconds to enter...
  • Page 8 standby mode Bottom Amplify audio loudspeaker  The appearance of different product models is slightly different, subject to our available products.
  • Page 9 2. Terminal Interface HDMI OUT* Connect to the devices with HDMI input function SPDIF Carry multichannel sound via optical signals. High-definition multimedia interface signal input, HDMI1(ARC)& connect to devices with HDMI output interface HDMI2 (personal computer with HDMI output, set-top box, or another video device) Connected to devices with Display Port output Display Port...
  • Page 10: Connection And Setting

    Connection and Setting For the safety of you and the machine, please do not connect any power plug before connection. HDMI OUT HDMI IN AUDIO OUT VGA IN & AUDIO IN...
  • Page 11 DP IN...
  • Page 12: Remote Control

    Remote Control 1. Remote Control Button Instruction...
  • Page 13 2. Detailed Function Description Number Items Function description Power on/off Enter or exit mute mode Start Space Alt+Tab Alt+F4 Numeric keys Numeric input Display Display external channel information Input Pop up setting menu Home Return to Android system main screen Menu Pop up menu Green...
  • Page 14 Scroll Left Scroll Right Scroll Down Enter Confirm selection state Back Return to the last operating interface PgUp Page Up PgDn Page Down CH.+/CH.- VOL+/VOL- Increase/reduce the volume F1-F12 3. Remote Control Instruction Install Batteries 1) Open back cover of battery component on the back of remote control. Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct ("+"to"+", "-"...
  • Page 15 Range of remote control Remote control can work normally within the range of 8 meters distance, 30 degrees left and right from the remote-control receiver; in order to protect environment, please dispose waste battery into recycling box. If the battery is replaced by an incorrect type, it may lead to explosion.
  • Page 16: Maintenance

    Maintenance Proper maintenance can avoid many early faults and regular careful cleaning can make machine brand new. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean Screen Please mix and stir even a little fabric softener or tableware detergent with alcohol. Please use a soft cloth to be completely soaked in the mixture.

This manual is also suitable for:

Nd55pncNd65pncNd75pncNd86pncNd98pna
