Edge-Core SDW102 Quick Start Manual

Quick Start Guide
SD-WAN Edge CPE
SDW102 | SDW102-L
1.
SDW102/SDW102-L SD-WAN Edge CPE
2.
(Optional) AC power adapter with international socket converters
3.
(Optional) 2 x LTE antennas
1
2 3
8
9 10
Warning:
For indoor use only. The device, AC power
adapter, and all connected cables are not for outdoor use.
Avertissement:
Pour une utilisation en intérieur
uniquement. L'appareil, l'adaptateur secteur et tous les câbles
connectés ne sont pas destinés à une utilisation en extérieur.
1
Mount the Device
a. Mounting on a Wall
1
www.edge-core.com

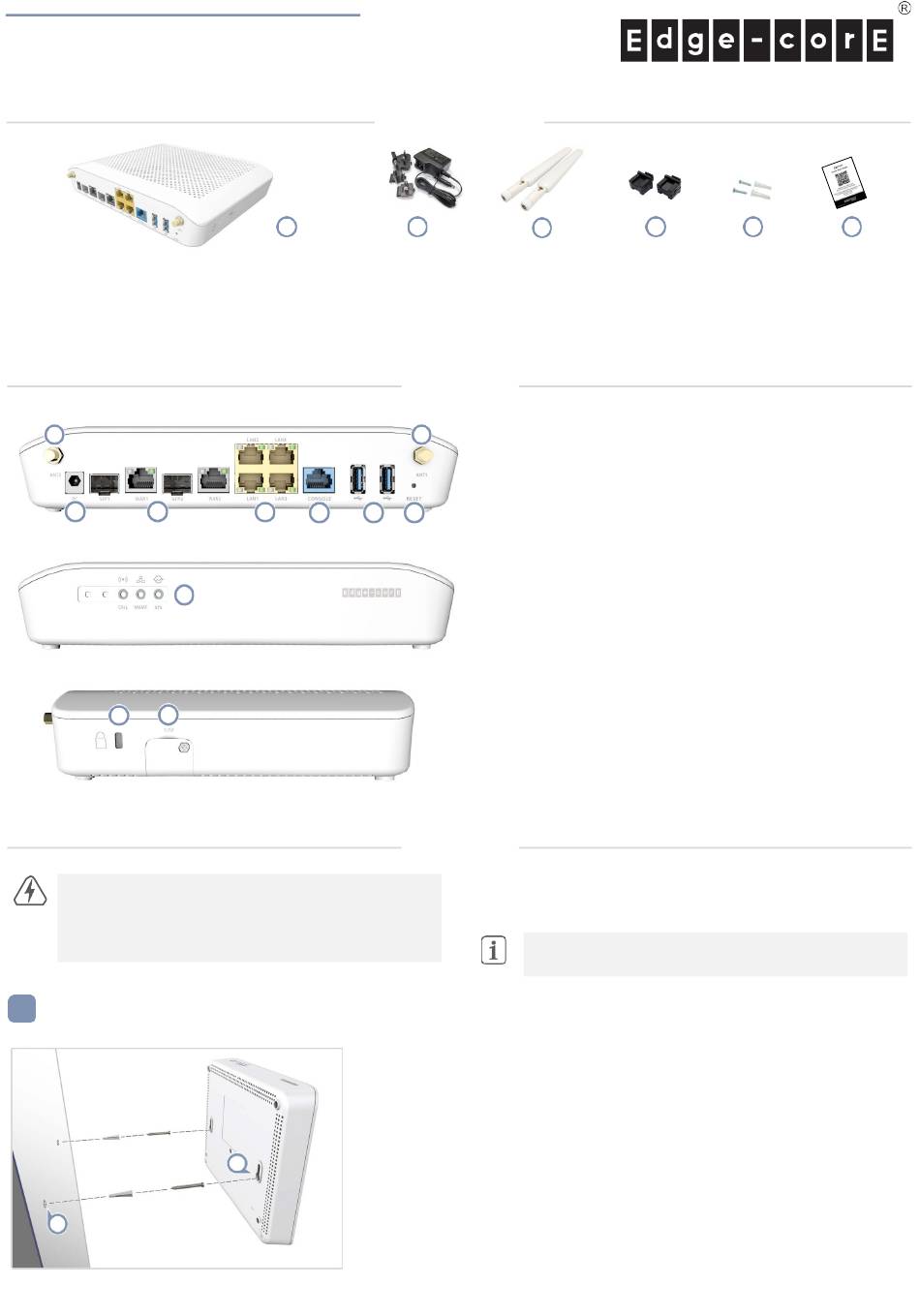

Package Contents
1
4 5 6
2
2 3
4.
2 x SFP port covers
5.
Screw kit—2 screws and 2 plugs
6.
QR code card
Overview
1. LTE antenna connectors (SDW102-L only)
1
2.
DC power input
3.
2 x 1G Combo SFP/RJ-45 WAN Ports:
Green LED: On/Blinking (RJ-45 link/traffic)

Orange LED: On/Blinking (SFP link/traffic)

7
4.
4 x 1G RJ-45 LAN Ports:
Green LED: On/Blinking (link/traffic)

Orange LED: On (1G speed), Off (10/100M speed)

5.
Console port
6.
2 x USB 3.0 ports
7. Reset button:
A quick press restarts the system.

Press and hold for 5 seconds resets to factory defaults.

8. System LED Indicators:
CELL (SDW102-L only): On (LTE ready)

MGMT: On (controller managed), Blinking (controller sync)

SYS: On (power OK)

9.
Kensington lock slot
10.
SIM card slot (SDW102-L only)
Installation
1. At the installation location on the wall, set two screws in the wall
160 mm (6.3 in.) apart. Use the wall plugs and screws included in the
screw kit.
Note: Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
2.
With its ports facing down, slide the device's wall mounting slots
down onto the screws so that the unit is secure.
b. Mounting on a Flat Surface
The device can also be placed on any flat surface, such as a desktop or
shelf.
– 1 –
4 5
E112022-CS-R01
