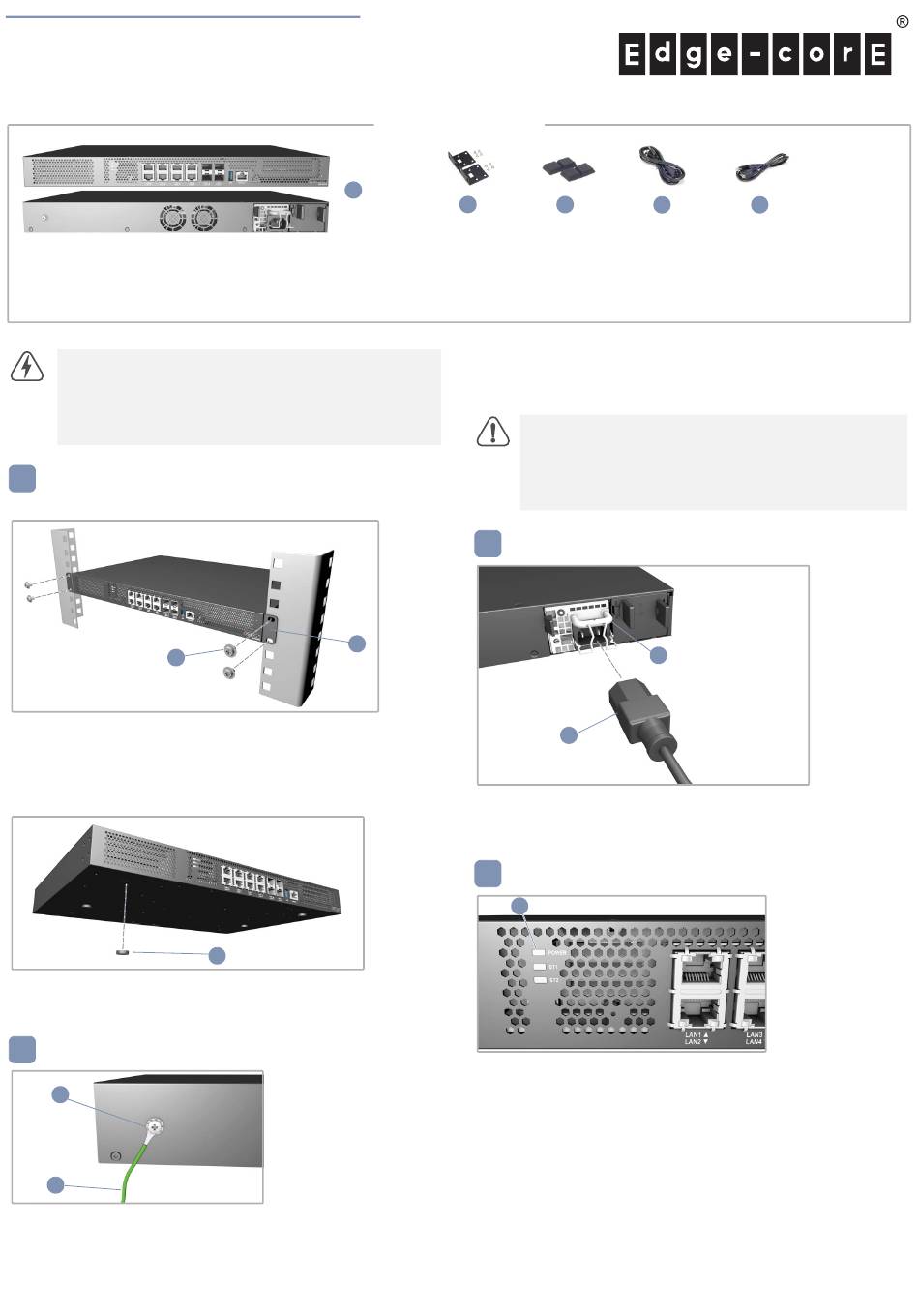

Edge-Core SDW101 Quick Start Manual

Quick Start Guide
SD-WAN Edge CPE
SDW101
1. SD-WAN Edge CPE SDW101
2. Rackmount Kit—2 brackets and 8 screws
3. Four adhesive foot pads
Warning: This equipment is not suitable for use in
locations where children are likely to be present.
Avertissement: Cet équipement ne peut pas être utilisé
dans des endroits où des enfants sont susceptibles d'être
présents.
1
Mount the Device
Rackmount the Device
2
1. Attach the brackets to the device.
2. Use the screws and cage nuts supplied with the rack to secure
the device in the rack.
Desktop Mount the Device
1. The device can be installed on a desktop or shelf using the
included adhesive rubber foot pads.
2
Ground the Device
1
2
1. Ensure the rack is properly grounded and in compliance with
international and local standards. Verify that there is a good
electrical connection to the grounding point on the rack (no
paint or isolating surface treatment).
www.edge-core.com
Package Contents
1
1
1
2 3
4. Power Cord—either Japan, US, Continental Europe or UK
5. Console Cable—RJ-45 to DB-9
2. Attach the grounding wire (#18 AWG) to the grounding point
on the device rear panel. Then connect the other end of the wire
to rack ground.
Caution: The earth connection must not be removed unless
all supply connections have been disconnected.
Attention: Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d'alimentation ont été
débranchées.
3
Connect Power
2
1. Install one AC PSU in the device.
2. Connect an external AC power source to the PSU.
4
Verify Device is Powered On
1
1. Verify the device is powered on by checking the Power LED.
When operating normally, the Power LED should be on green.
– 1 –
4 5
1
E072022-CS-R01
