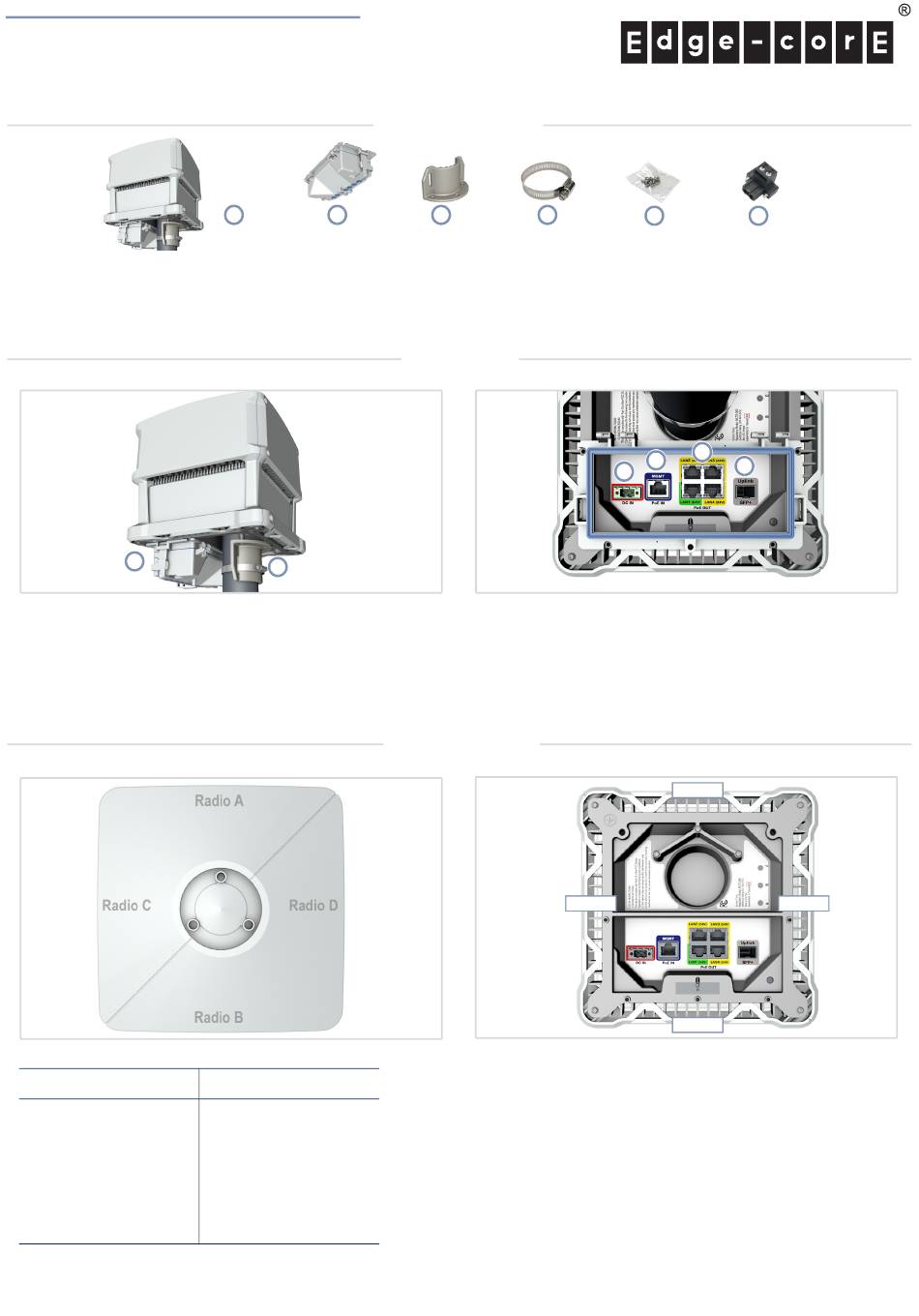

Quick Start Guide
60GHz Terragraph Distribution Node
MLTG-360
1.
60GHz Terragraph Distribution Node MLTG-360
2.
Weatherproof port cover
3.
Pole-mount bracket
1
1.
Port cover
2.
Pole mounting bracket with steel-band clamp
3.
DC power connection.
4.
MGMT PoE IN Port: Connects to PoE injector and management
network.
Product Name
MLTG-360
MLTG-360-3
MLTG-360-2R
MLTG-360-2P
MLTG-360-1
www.edge-core.com
1
2
2
Position of Radios
A, B, C, D
A, C, D
A, D
C, D
A

Package Contents

3
4
4.
Steel-band clamp — 5 cm (2 inch) diameter max.
5.
Screw kit
6.
DC terminal plug

Overview

5.
PoE OUT LAN Ports: Connect to LAN devices.
6.
Uplink SFP+ fiber transceiver port

Product Lineup

– 1 –
5
5
4
6
3
Radio B
Radio C
Radio A
6
Radio D
E032021-MR-R01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLTG-360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edge-Core MLTG-360

  • Page 1 Quick Start Guide 60GHz Terragraph Distribution Node MLTG-360 Package Contents 60GHz Terragraph Distribution Node MLTG-360 Steel-band clamp — 5 cm (2 inch) diameter max. Weatherproof port cover Screw kit Pole-mount bracket DC terminal plug Overview Port cover PoE OUT LAN Ports: Connect to LAN devices.
  • Page 2 MLTG360 is powered via DC Power. SFP+ Uplink Port Install a 10G fiber transceiver in the Uplink SFP+ port and then Place the MLTG-360 on the top of a 4–5 cm (1.57–2 inch) diameter pole. Note: It is strongly recommended the MLTG-360 be mounted on the top of the pole without any obstructions above it.
  • Page 3 Access the Web User Interface Connect a PC directly to the MLTG-360’s MGMT port. Set the PC IP address to be on the same subnet as the MLTG-360 MGMT port default IP address. The PC address must start at 192.168.1.x with subnet mask 255.255.255.0.
  • Page 4 The Declaration of Conformity (DoC) can be obtained from for use with this device. www.edge-core.com -> support -> download. Cet appareil numérique de la classe A est conforme à la norme NMB- 003 du Canada.
  • Page 5 Quick Start Guide Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts. Warning: Installation and removal of the unit must be carried out by qualified personnel only. Caution: Wear an anti-static wrist strap or take other suitable measures to prevent electrostatic discharge when handling this equipment.
