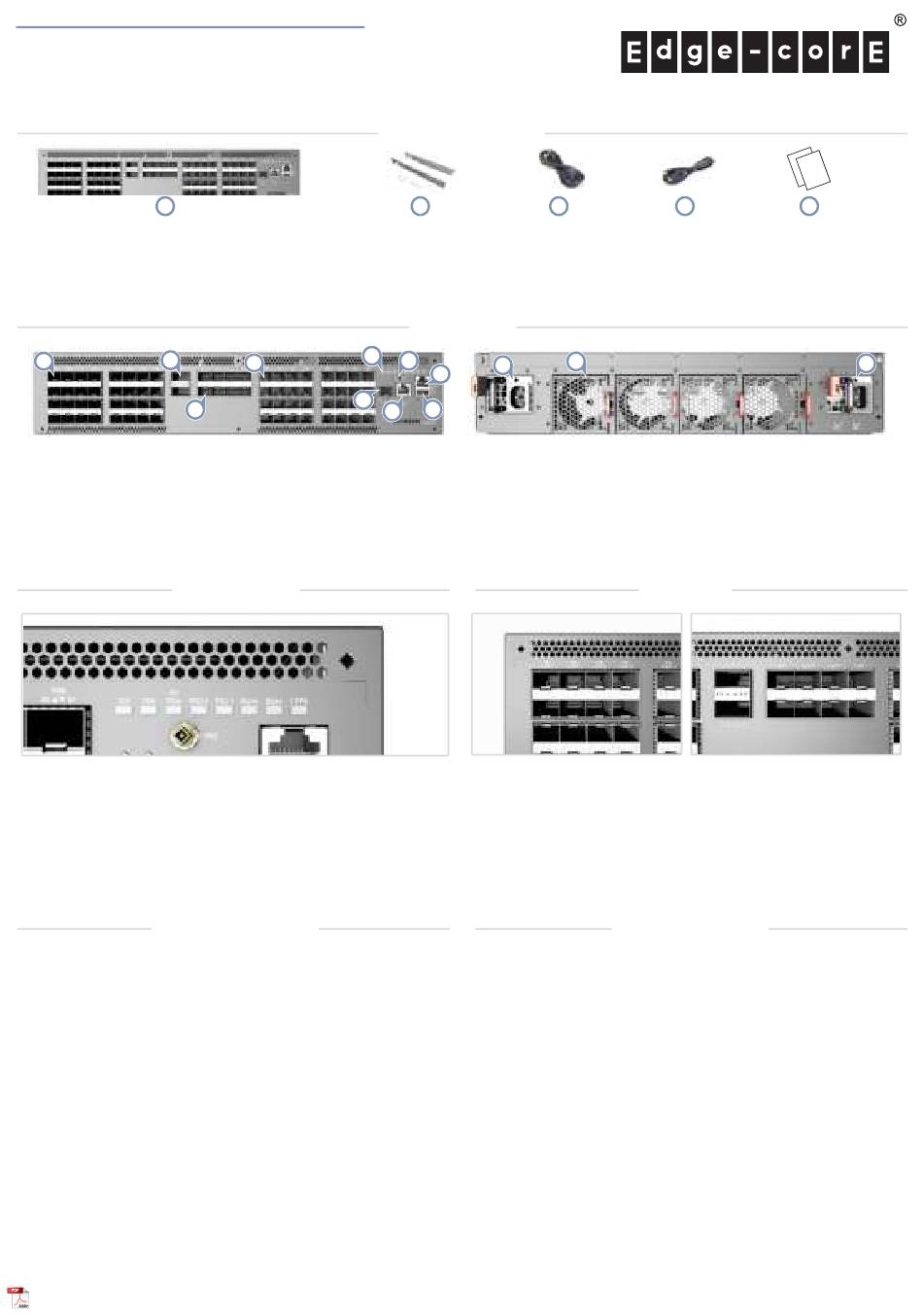

Edge-Core ASGvOLT64 Quick Start Manual

Quick Start Guide
64-Port GPON vOLT
ASGvOLT64
1
1. ASGvOLT64
2.
Rack mounting kit—2 brackets and 24 screws
3.
2 x Power cord
2
1
3
1.
64 x SFP GPON ports
2. 2 x QSFP28 40G/100G ports
3.
8 x SFP28 10G/25G ports
4.
System LEDs
5. 1 x SFP Management port
6.
1 x 1PPS
System LEDs
UID LED: Blinking blue
FAN LED: Off (OK), Red (fault)
Air Filter LED: Off (OK), Red (change filter)
PSU LEDs: Green (OK), Red (fault)
Alarm LED: Green (OK), Blue (minor), Red (major)
State LED: Green (OK), Blue (initializing), Red (fault)
1PPS LED: Green (OK)

FRU Replacement

PSU Replacement
1. Remove the power cord.
2. Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.
*150200002424A_R01*

Package Contents

4
6
1
5
7
Fan Tray Replacement
1. Loosen the fan tray screw.
2. Remove fan tray from the
chassis.
3.
Install replacement fan with
matching airflow direction.
2 3
4. Console cable—RJ-45 to D-Sub
5. Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information

Overview

11
10
8
9
7. 1 x RJ45 Management port
8.
1 x RJ45 Console port
9.
1 x USB port
10. 2 x AC PSUs
11.
4 x Fan trays
SFP GPON Port LEDs: Green (link up and in service), Blue (disable),
Red (fault), Blinking (activity)
QSFP28 Port LEDs: Green (100G), Blue (40G), Orange (4G), Blinking
(activity)
SFP28 Port LEDs: Green (25G), Blue (10G), Orange (1G), Blinking
(activity)
1. F2B Airflow
Remove front-to-back (F2B)
airflow fan trays (red handles) and
PSUs (red release latches).
– 1 –
www.edge-core.com
4
Port LEDs

Airflow Reversal

2. B2F Airflow
Install back-to-front (B2F) airflow
fan trays (blue handles) and PSUs
(blue release latches).
E082021-MR-R01
5
10
150200002424A
