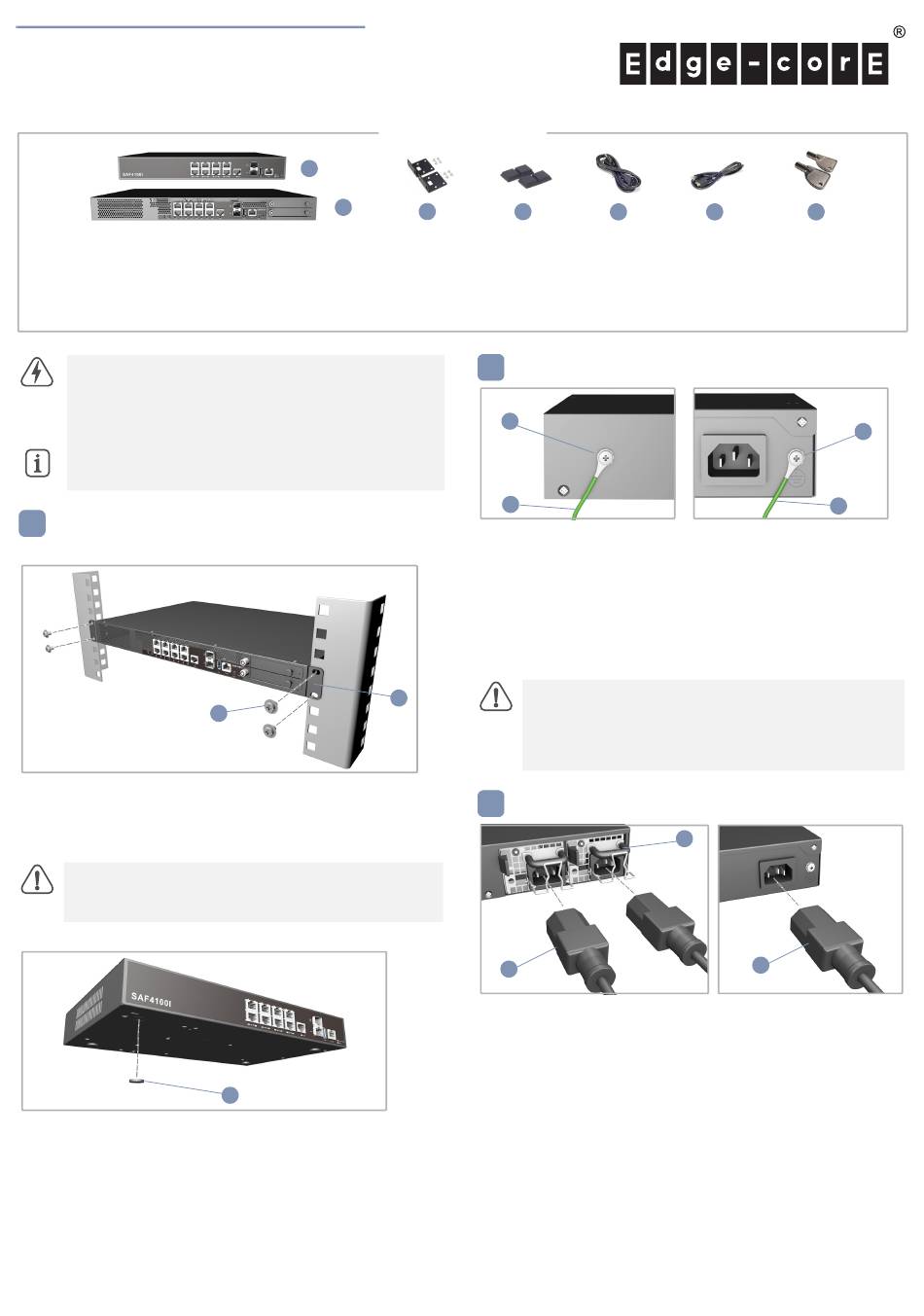

Quick Start Guide
Network Appliance Platform
SAF4100I | SAF4101I
1.
Network Appliance Platform SAF4100I
2.
Network Appliance Platform SAF4101I
3.
Rackmount Kit—2 brackets and 8 screws (SAF4101I only)
4.
Four adhesive foot pads
Warning:
This equipment is not suitable for use in
locations where children are likely to be present.
Avertissement: Cet équipement ne peut pas être utilisé
dans des endroits où des enfants sont susceptibles d'être
présents.
Note:
The device is an open platform with Ubuntu Linux
pre-installed, but no application software.
1
Mount the Device
Rackmount the SAF4101I
1.
Attach the brackets to the SAF4101I.
2.
Use the screws and cage nuts supplied with the rack to secure
the device in the rack.
Caution:
Installing the device in a rack requires two
people. One person should position the device in the rack,
while the other person secures it using the rack screws.
Desktop Mount the SAF4100I
1.
The SAF4100I can be installed on a desktop or shelf using the
included adhesive rubber foot pads.
www.edge-core.com
Package Contents
1
2
2
1
3
4
5.
Power Cord—either Japan, US, Continental Europe or UK
6.
Console Cable—RJ-45 to DB-9
7.
HDD tray keys (two)
2
Ground the Device
1
2
1.
Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2.
Attach the grounding wire (#18 AWG) to the grounding point
on the device rear panel. Then connect the other end of the wire
to rack ground.
Caution:
1
all supply connections have been disconnected.
Attention:
sauf si toutes les connexions d'alimentation ont été
débranchées.
3
Connect Power
2
1.
Install one or two AC PSUs in the SAF4101I.
2.
Connect an external AC power source to the device.
– 1 –
5
6
The earth connection must not be removed unless
Le raccordement à la terre ne doit pas être retiré
1
2
7
1
2
E032019-AP-R02
150200001591A
