Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Place the screen on a 51 mm/
2.0 inch platform so that the stand is parallel with the surface.) (Figure S.1).

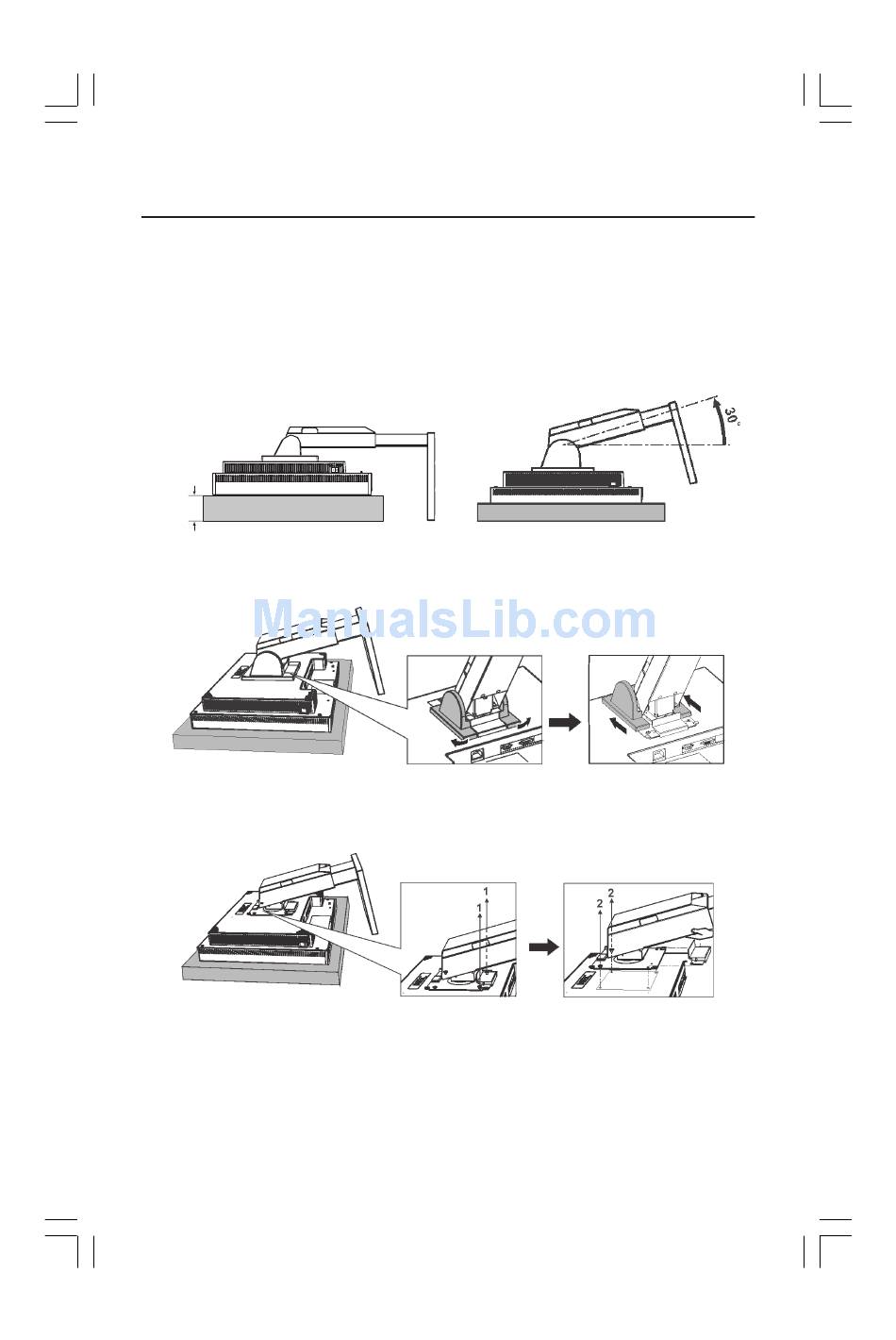

4. Adjust the stand into a 30 degree angle (Figure S.2).
51 mm
Figure S.1
5. To remove two plastic covers: push the covers away from the stand then push toward
the top of the monitor to release. (Figure S.3).
6. Remove the 2 screws connecting the stand at the bottom (#1), then remove the 2 top
screws (#2) to release the stand assembly (Figure S.4). The monitor is now ready for
mounting in an alternate manner.
7. Reverse this process to reattach stand.
Use only VESA
NOTE:
Handle with care when removing stand.
Caution: please use the attached screws (4 pcs) when mounting. To fulfil the safety requirements
the monitor must be mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor. The LCD monitor shall only be used with an approved
arm (e.g. GS mark).
