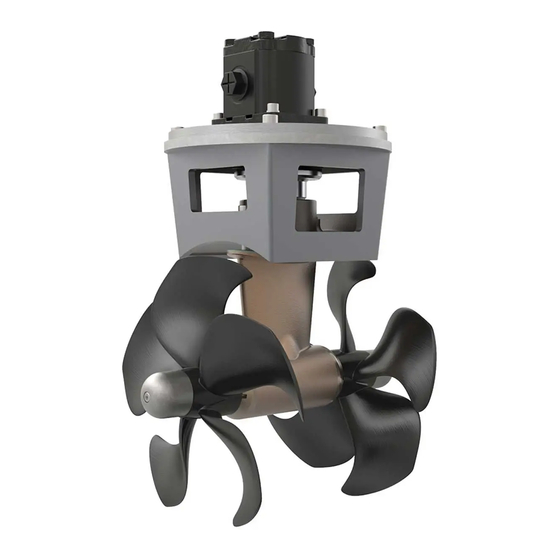

Sleipner SH320 Installation Manual
Hydraulic thruster
Hide thumbs
Also See for SH320:
- Installation manual (28 pages) ,
- Installation manual (24 pages) ,
- User manual (16 pages)
Related Manuals for Sleipner SH320
Summary of Contents for Sleipner SH320
- Page 1 Installation Guide For Hydraulic Thruster Models SH320 DOCUMENT ID: SLEIPNER MOTOR AS 5938 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
Control Panel Installation ........................................21 Pre-delivery Checklist ....................................22 Service and Support ......................................23 Product Spare Parts and Additional Resources ..............................23 Warranty Statement ......................................23 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020 Sleipner Hydraulic Thruster... -
Page 3: Responsibility Of The Installer
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. -
Page 4: Product Measurements
Minimum tunnel wall thickness 0.39 T (max) Maximum tunnel wall thickness 0.47 Propeller position will vary with each thruster model Twin Propeller The gear leg/ propeller(s) must never extend out of the tunnel Tunnel centre line MG_0078 Sleipner Hydraulic Thruster 5938 2023... -
Page 5: Product Specifications
52.9 U,G,P 19 USG-PSI 10.83 2088 12.50 2799 13.98 3495 L/min-Bar 40.1 46.3 51.8 BA 19 USG-PSI 10.59 2103 11.44 2813 13.69 3509 L/min-Bar 49.4 63.8 U,G,P 23 USG-PSI 13.05 1755 15.06 2349 16.86 2929 Sleipner Hydraulic Thruster 5938 2023... -
Page 6: Technical Requirements / Hydraulic Hose Connections To Motor
07.03.2014 07.03.2014 Hyd. motor 16 ccm Copyright All rights reserved Copyright All rights reserved Title Title Hyd. motor 16 ccm Hyd. motor 16 ccm SLEIPNER MOTOR AS Part nr Weight Size Scale Edition Sheet SLEIPNER MOTOR AS SLEIPNER MOTOR AS... -
Page 7: Positioning Of The Tunnel / Thruster
(NB: This can be overlooked depending on the installation methods defi ned in this manual.) Pivot point important Lowered rotation power performance Stronger rotation power performance Water line Ø min 1/4 Ø (Recommended) min 1/4 Ø (Recommended) MG_0001 Sleipner Hydraulic Thruster 5938 2023... -
Page 8: Tunnel Length
Increase tunnel length to protect never extend out of the tunnel cavity between the propeller and the propeller from water forces the hull of the boat. when high-speed cruising. MG_0048 Sleipner Hydraulic Thruster 5938 2023... -
Page 9: Tunnel Installation In Sailboats
This installation is being used by some of the world’s largest sail boat builders and has proven to give little to no speed loss during normal cruising. This can also be an installation method for flat bottomed barges to avoid extremely long tunnels and large oval tunnel openings in the hull. Pos. A Pos. B MG_0004 Sleipner Hydraulic Thruster 5938 2023... -
Page 10: Water Deflection
In the High water force event when the boat is traveling at high speeds it while underway will commonly pound upon the water surface. High water force while underway from wave contact MG_0003 Sleipner Hydraulic Thruster 5938 2023... -
Page 11: Tunnel Ends
This “free” extra thrust in optimal installations be 30 - 40% of the total thrust. (NB: A Sleipner thruster propeller does not produce cavitation at working speed. Therefore, any cavitation and cavitation noise in the tunnel will be caused during improper tunnel installation.) -
Page 12: Tunnel Installation
(NB: Ensure gaps between the tunnel and the hull are completely fi lled with resin/ fi breglass. In areas where you can not access to make layers of resin/ fi breglass, a resin/ fi breglass mixture must be used in that area.) 8 x layers of fiberglass and resin 8 x layers of fiberglass and resin MG_0005 Sleipner Hydraulic Thruster 5938 2023... - Page 13 You must apply gel coat to areas you have grounded/ moulded to make waterproof. These areas allow water access to the hull which is typically not waterproof without these applications outside. (NB: All original Sleipner tunnels are fully waterproof when delivered except in the areas where you have cut and bonded it to the hull.)
-
Page 14: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 For Stern Thruster installation please refer to the supplied manual in your Sleipner product delivery Installation Guide For DC Electric Thruster Models SE80, SE100, SE120, SE130, SE150 Stern Thruster SLEIPNER AS DOCUMENT ID: 222222 REVISION: P.O. Box 519... -
Page 15: Gear Leg & Motor Bracket Installation
SE/SEP/SE IP/SEP IP 250/300TC SE/SEP/SE IP/SEP IP 300/300TC E300/300TC 50,5 1,89 0,43 SH300/300TC SH320/300TC SAC320/300TC SH360/300TC SH400/300TC 2,63 1,89 0,43 SAC360/300TC SAC400/300TC SH420/386TC SH550/386TC 3,26 2,75 0,66 SAC450/386TC SAC520/386TC Drill centre hole first Smooth surface area MG_0055 Sleipner Hydraulic Thruster 5938 2023... - Page 16 Place top motor bracket and bolt plate to measure the drive shaft has come through the motor bracket at the correct height. Remove the gear leg and propeller for fi nal installation. Gasket Test the propeller turns without Gear leg obstruction with tunnel wall Motor bracket Bolt plate MG_0622 Sleipner Hydraulic Thruster 5938 2023...
- Page 17 10. Fasten the gear leg and the motor bracket with the bolts provided. Tighten to torque as shown. Apply MS Polymer sealant or equal to both sides of the gasket IMPORTANT Motor bracket Do not apply sealant to the bolt holes. Tunnel Diameter /300mm Nm lb/ft Fasten MG_0621 Sleipner Hydraulic Thruster 5938 2023...
-
Page 18: Propeller Installation
Drive Pin Find the propeller hand marking on the back side of the propeller mould. Propeller Lock Nut Washer FASTEN 65 Nm 47.94 lb/ft Anti-fouling Anode Apply Loctite 243 or similar Anode Holding Screw MG_0033 Sleipner Hydraulic Thruster 5938 2023... -
Page 19: Motor Installation
Ensure the holding key, teeth and coupling are aligned when fitted FASTEN (33 Nm) (24 lb/ft) Motor shaft teeth IMPORTANT Apply seawater resistant grease on shafts and gear leg Holding Key before fitting the flexible coupling MG_0149 Sleipner Hydraulic Thruster 5938 2023... -
Page 20: S-Link System Description
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Units with low power consumption are powered directly from the S-Link bus therefore one power cable must be connected to the BACKBONE Cable through a T-Connector. -
Page 21: Control Panel Installation
Control Panel Installation MC_0398 For Control Panel installation please refer to the Installation Guide accompanying the control panel to be installed. Installation Guide Control Panel SLEIPNER MOTOR AS DOCUMENT ID: REVISION: P.O. Box 519 N-1612 Fredrikstad DATE: Norway www.sleipnergroup.com LANGUAGE:... -
Page 22: Pre-Delivery Checklist
Correct drive direction as per control panel: ..............................The compartment for the thruster has been isolated from general bilge water and has no obvious or suspected risks for flooding: .................................................................................................................................. Other comments by installer: ............................................................................... Sleipner Hydraulic Thruster 5938 2023... -
Page 23: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents Sleipner Hydraulic Thruster... - Page 24 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
