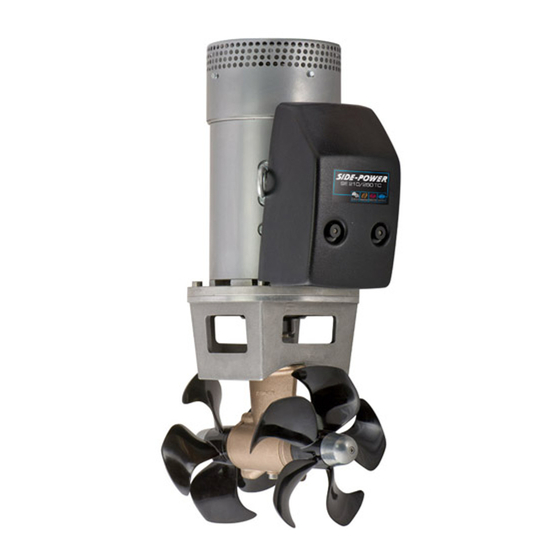

- Page 1 Installation Guide For DC Electric Thruster Models SE210 DOCUMENT ID: SLEIPNER AS 2663 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2021 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
Pre-delivery Checklist ..................................23 Service and Support................................... 24 Product Spare Parts and Additional Resources ..........................24 Warranty Statement .................................... 24 Products SE210/250TC - SE210 Tunnel thruster, 24V Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020... -
Page 3: Responsibility Of The Installer
Sleipner products. The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person familiar with the particular vessel and applicable regulations. -
Page 4: Thruster Measurements
T (max) Maximum tunnel wall thickness 0,35 *Valid for SE & SEP Propeller position will vary with each thruster model Twin Propeller The gear leg/ propeller(s) must never extend out of the tunnel Tunnel centre line MG_0075 SE210 2663 2021... -
Page 5: Thruster Specifications
- Flexible coupling between electro-motor and drive shaft protects electro motor and gear system if propeller jams. - Original Sleipner panels shut off automatically 6 minutes after last use. This interval can be adjusted in 5 min steps up to 60 minutes or turned off completely. -
Page 6: Positioning Of The Tunnel / Thruster
(NB: This can be overlooked depending on the installation methods defi ned in this manual.) Pivot point important Lowered rotation power performance Stronger rotation power performance Water line Ø min 1/4 Ø (Recommended) min 1/4 Ø (Recommended) MG_0001 SE210 2663 2021... -
Page 7: Tunnel Length
The gear leg/ propeller(s) must prevent a circular water vacuum Increase tunnel length to protect never extend out of the tunnel cavity between the propeller and the propeller from water forces the hull of the boat. when high-speed cruising. MG_0048 SE210 2663 2021... -
Page 8: Tunnel Installation In Sailboats
This installation is being used by some of the world’s largest sail boat builders and has proven to give little to no speed loss during normal cruising. This can also be an installation method for flat bottomed barges to avoid extremely long tunnels and large oval tunnel openings in the hull. Pos. A Pos. B MG_0004 SE210 2663 2021... -
Page 9: Water Deflection
(NB: As a rule, you should not see the back face of the tunnel when standing directly in front of the boat looking aft.) High water force while underway High water force while underway from wave contact MG_0003 SE210 2663 2021... -
Page 10: Tunnel Ends
(NB: A Side-power thruster propeller does not produce cavitation at working speed. Therefore, any cavitation and cavitation noise in the tunnel will be caused during improper tunnel installation.) R = 0,1 x D (10%) Cavitation Angled tunnel ends for steel/ aluminium hulls MG_0002 SE210 2663 2021... -
Page 11: Tunnel Installation
(NB: Ensure gaps between the tunnel and the hull are completely fi lled with resin/ fi breglass. In areas where you can not access to make layers of resin/ fi breglass, a resin/ fi breglass mixture must be used in that area.) 8 x layers of fiberglass and resin 8 x layers of fiberglass and resin MG_0005 SE210 2663 2021... - Page 12 Additional Layers of Hull fiberglass and resin Welding Tunnel *Fiberglass *Steel/ Hull Aluminium Hull Hull R = D x 0,1 Layers of fiberglass R = D x 0,1 and resin Tunnel Additional Layers of fiberglass and resin MG_0006 SE210 2663 2021...
-
Page 13: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 For Stern Thruster installation please refer to the supplied manual in your Sleipner product delivery Installation Guide Stern Thruster SLEIPNER AS DOCUMENT ID: P.O. Box 519 REVISION: DATE: N-1612 Fredrikstad Norway www.sleipnergroup.com LANGUAGE: SE210 2663 2021... -
Page 14: Gear Leg & Motor Bracket Installation
*P*IP *P*IP IMPORTANT FASTEN Do not apply sealant to 18 Nm (13.28 lb/ft) the holes. Motor bracket *P*IP *P*IP *P*IP *P*IP *P*IP FASTEN 33 Nm (24 lb/ft) MG_0055 SE210 2663 2021... -
Page 15: Propeller Installation
Apply anti-fouling to the gear leg and propeller. Do not apply anti-fouling to any rubber elements of the gear leg or anodes. Drive Pin Propeller Washer Lock Nut Anti-fouling Anode Apply Loctite 243 or similar Anode Holding Screw MG_0033 SE210 2663 2021... -
Page 16: Motor Installation
On completion of operations, the cover must be removed before operating the thruster. IMPORTANT Ensure the holding key and coupling are aligned when fitted Holding Key > 30° Motor FASTEN (33 Nm) (24 lb/ft) IMPORTANT Do not position support on the motor cap. Motor support MG_0312 SE210 2663 2021... -
Page 17: Thruster Electrical Installation
Lugs (M8) Nut Tighten to *max 13 Nm (9.59 lb/ft) (M10) Nut Tighten to *max Hold in place 23 Nm (16.96 lb/ft) for securing the end nut. Lugs Spring washer Spring washer MG_0019 SE210 2663 2021... -
Page 18: Electrical Specifications
Electrical Specifi cations MC_0044 SE210 2663 2021... -
Page 19: Technical Wiring Diagram
(A1) terminal on the motor. on SP75Ti, SP95Ti, and If you feel unsure on how to perform this check, contact skilled SP125Ti. personnel for guidance. MG_0035 SE210 2663 2021... - Page 20 NB! Make sure to not use any electronic interface any electronic interface box (delay box) older than box (delay box) older than the 6 1232i (ex. 6 122x) the 6 1232i (ex. 6 122x) on SP75Ti, SP95Ti, and SP125Ti. MG_0036 SE210 2663 2021...
-
Page 21: Control Panel Cable Installation
(NB: If two or more control panels are operated at the same time in opposite directions, the electronic control box will stop the thruster until it receives a single signal or thrust in one direction.) • Sleipner on/off equipment it is entirely “plug & play” and require no additional confi guration setup. See the Control panel manual for more information. Pin 2... -
Page 22: Control Panel Installation
Control Panel Installation MC_0398 For Control Panel installation please refer to the supplied manual in your Sleipner product delivery Installation Guide Control Panel SLEIPNER AS DOCUMENT ID: P.O. Box 519 REVISION: DATE: N-1612 Fredrikstad Norway www.sleipnergroup.com LANGUAGE: SE210 2663 2021... -
Page 23: Pre-Delivery Checklist
Correct drive direction as per control panel: ..............................The compartment for the thruster has been isolated from general bilge water and has no obvious or suspected risks for flooding: .................................................................................................................................. Other comments by installer: ........................................................................................................................SE210 2663 2021... -
Page 24: Service And Support
10. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SE210... - Page 25 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SE210 2663 2021...
- Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SE210 2663 2021...
- Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SE210 2663 2021...
- Page 28 © Copyright Sleipner Motor AS, 2021 The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
