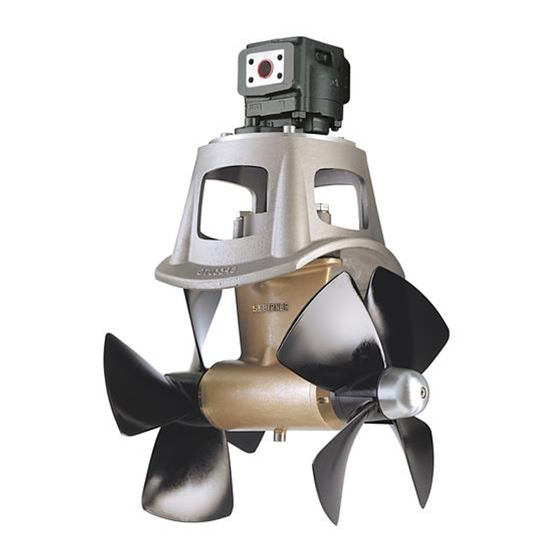

Sleipner SH420 Installation Manual
Hydraulic thruster
Hide thumbs
Also See for SH420:
- Installation manual (28 pages) ,
- Product manual (4 pages) ,
- User manual (16 pages)
Related Manuals for Sleipner SH420
Summary of Contents for Sleipner SH420
- Page 1 Installation Guide For Hydraulic Thruster Models SH420, SH550 DOCUMENT ID: SLEIPNER AS 5937 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2021 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
SM119464 | SH420/386TC-BA32 - SH420 Tunnel thruster, BA32 SM905350 | SH420/386TC-BA40-S - SH420 Tunnel thruster, BA40 ....................14 SM908043 | SH420/386TC-U42 - SH420 Tunnel thruster, U42. UTGÅTT Technical Specifications ............15 SM103124 | SH420/386TC-U37 - SH420 Tunnel thruster, U37 SM908042 | SH420/386TC-BA40 - SH420 Tunnel thruster, BA40 Technical Requirements / Hydraulic hose connections to motor .................... -
Page 3: Planning Considerations And Precautions
If installing S-link products DO NOT connect any other control equipment to the S-link controlled products except Sleipner original S-link products or via a Sleipner supplied interface product made for interfacing with other controls. Any attempt to directly control or at all connect into the S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Sleipner products connected void and null. -
Page 4: Thruster Measurements
Propeller position will vary with each thruster model Twin Propeller The gear leg/ propeller(s) must never extend out of the tunnel Tunnel centre line MG_0078 Thruster Measurements MC_0187 *420 *550 Measurement Measurement description code mm inch mm inch Internal tunnel diameter 15,2 15,2 Motor Height... -
Page 5: Thruster Specifications
Thruster Specifi cations MC_0146 Description * 420 * 550 Light duty thrust up to (kg * lbs) 420kg * 925lbs 550kg * 1210lbs Heavy duty thrust up to (kg * lbs) 380kg * 835lbs 500kg * 1100lbs Typical Boat Size (m * ft) 22m - 35m * 75ft - 110ft 25m - 40m * 85ft - 140ft Propulsion System Twin Counter Rotating... -
Page 6: Positioning Of The Tunnel/ Thruster
Pivot point important Lowered rotation power performance Stronger rotation power performance Water line Ø min 1/4 Ø (Recommended) min 1/4 Ø (Recommended) MG_0001 Positioning of the tunnel / thruster MC_0003 Aim to install the thruster as far forward as possible (1) Due to the leverage effect around the boats’... -
Page 7: Tunnel Length
Do not allow the variable length of the tunnel walls to vary in length excessively. EG. the top tunnel wall is x 4 longer than the bottom wall. Water flow must have space to "straighten" itself for best Cavitation performance. -
Page 8: Tunnel Installation In Sailboats
Pos. A Pos. B MG_0004 Tunnel installation in sailboats MC_0003 Some sail boats have a flat bottom and shallow draft in the bow section. This can make installing the thruster as far forward from the boats main pivot point diffi cult. -
Page 9: Water Deflection
High water force while underway High water force while underway from wave contact MG_0003 Water Deflection MC_0003 A possible problem in sail boats or fast powerboats is that a non-rounded surface can generate drag from the back face of the tunnel, as it creates “flat”... -
Page 10: Tunnel Ends
R = 0,1 x D (10%) Cavitation Angled tunnel ends for steel/ aluminium hulls MG_0002 Tunnel Ends MC_0003 Rounded tunnel ends will maximise thrust and minimise noise and cavitation. For best performance round the tunnel connection to the hull-side as much as possible. The minimum rounding has a radius of 10% of the diameter of the tunnel. -
Page 11: Tunnel Installation
8 x layers of fiberglass and resin 8 x layers of fiberglass and resin MG_0005 Tunnel Installation MC_0003 IMPORTANT We recommend that a professional does the fi breglass, steel or aluminium fi tting of the tunnel. These instructions are only general instructions and do not explain in any way the details of fi... - Page 12 Hull Hull Layers of Layers of fiberglass fiberglass and resin and resin Tunnel Additional Layers of Hull fiberglass and resin Welding Tunnel *Fiberglass *Steel/ Hull Aluminium Hull Hull R = D x 0,1 Layers of fiberglass R = D x 0,1 and resin Tunnel Additional Layers of...
-
Page 13: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 Stern thruster installation has extra considerations and precautions and thruster installation procedures. See the attached manual supplied in the stern thruster kit Stern Thruster Installation Guide SH 420tc & 550tc 5937 2021... -
Page 14: Hydraulic Thruster Installation Considerations And Precautions
If installing S-link products DO NOT connect any other control equipment to the S-link controlled products except Sleipner original S-link products or via a Sleipner supplied interface product made for interfacing with other controls. Any attempt to directly control or at all connect into the S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Sleipner products connected void and null. -
Page 15: Technical Specifications
Technical Specifi cations MC_0107 60 % 80 % 100 % Thruster model Motor type Flow Pressure Flow Pressure Flow Pressure L/min -Bar 18.8 21.7 24.2 USG-PSI 1494 1987 2494 L/min -Bar 25.5 29,9 32,3 SH 100 USG-PSI 1117 1494 1871 L/min -Bar 31.3 36.1... -
Page 16: Technical Requirements / Hydraulic Hose Connections To Motor
07.03.2014 07.03.2014 Hyd. motor 16 ccm Copyright All rights reserved Copyright All rights reserved Title Title Hyd. motor 16 ccm Hyd. motor 16 ccm SLEIPNER MOTOR AS Part nr Weight Size Scale Edition Sheet SLEIPNER MOTOR AS SLEIPNER MOTOR AS... -
Page 17: Crossover Valve
Crossover Valve Crossover valve must be mounted as close as possible to the motor SH 400 1/2” valve SH 700, 1000, 1400 1” valve Valve coil w/ connector MG_0341 SH 420tc & 550tc 5937 2021... -
Page 18: Gear Leg & Motor Bracket Installation
2 - 4 PORT STARBOARD Boats ØC Boats centre line SH 420 centre line Measurement SH 550 Tunnel Description inch centre line ØA 3.23 Tunnel 2.76 centre line ØC 0.67 ØA Stern Gasket PORT STARBOARD Ensure propeller turns without obstruction IMPORTANT Apply MS Polymer Pre-fill gear leg with oil. -
Page 19: Propeller Installation
Holding Key Propeller Washer Lock Nut Anode Apply Loctite 243 or similar Anode Holding Screw MG_0038 Propeller Installation MC_0021 ! Please refer to the graphic for special considerations relating to your model ! Rotate the propeller shaft, so the propeller key is on top. Remove the tape holding the propeller key in its recess on the propeller shaft. (NB: Ensure waterproof grease applied from the factory is still covering the propeller shaft, if of not apply waterproof grease or similar on the propeller shaft to ensure the removal of propellers for future maintenance) Insert the propeller onto the propeller shaft until the propeller key aligns into the slot/ groove in the propeller. -
Page 20: Motor Installation
IMPORTANT Ensure the holding key, teeth and coupling are aligned when fitted FASTEN (33 Nm) (24 lb/ft) IMPORTANT Apply seawater resistant grease on shafts and gear leg before fitting the flexible coupling MG_0130 Motor Installation MC_0109 ! Please refer to the graphic for special considerations relating to your model ! Install the motor onto the motor bracket ensuring the couplings are engaged together correctly (top and bottom). -
Page 21: Oil Tank Installation
Oil tank >0,2 x D Waterline Oil tube Feed nipple Tunnel center line MG_0046 Oil Tank Installation MC_0023 ! Please refer to the graphic for special considerations relating to your model ! Install the oil tank above the waterline by at least 20% of the distance from the waterline to the centre of the tunnel. This ensures enough overpressure for the oil in the gear leg. -
Page 22: S-Link Planning & Precautions
- Round, compact and waterproof plugs with unique keying and colour coding to avoid faulty hookup. - An unlimited number of commands or information transfer on a single cable. - Proprietary Sleipner commands but built 100% on NMEA 2000 standard. Routing the Backbone: Keep routing backbone spur cables to a minimum. -
Page 23: Control Panel Installation
4x SCREWS Ø 4.5 mm Ø 4.5 mm 75.7 mm 58 mm 67 mm GASKET Ø 4.5 mm Ø 4.5 mm Ø 4.5 mm External alarm / buzzer connection (S-link) Supply + 12V / 24V DC Internal fuse / relay External alarm buzzer 12V / 24V DC - max 0,5A MG_0063... -
Page 24: Checklist For Hydraulic Thrusters
Checklist for Hydraulic Thrusters MC_0049 ..Propeller is fastened correctly to the shaft... Propeller turns freely in tunnel... Lower-unit is fi lled with gear oil... Oil-drain screw is tightened and the copper seal is present... The anode holding screw is tightened well with thread glue... -
Page 25: Service And Support
10. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SH 420tc & 550tc... - Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SH 420tc & 550tc 5937 2021...
- Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SH 420tc & 550tc 5937 2021...
- Page 28 © Copyright Sleipner Motor AS, 2021 The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
