AUTO SETUP
FUNCTION
Two methods, "AUTO SETUP" and "OSM
are available for adjusting the screen. (For the "OSM
Adjustment", see 5. OSM (On Screen Manager) FUNC-
TIONS.) Conduct the "AUTO SETUP" first. And then, do
the "OSM Adjustment" if necessary.
The "AUTO SETUP" is to adjust "CONTRAST", "HORI-
ZONTAL POSITION", "VERTICAL POSITION", "CLOCK",
"CLOCK-PHASE" and "BLACK LEVEL" automatically.
• "AUTO SETUP" function may not work well with some
computer. In the case, conduct the "OSM Adjustment".
• In case that the monitor is used with an interlace signal
of resolution 1280 dots by 1024 lines, one line in the top
or bottom of the screen is lost. This condition can not
be corrected by any adjustment.
Conduct the "AUTO SETUP" according to the following
procedure:
1. Turn on the computer and monitor.
If you don't recognize the icon on the screen, adjust
"CLOCK" until you can, with using the "OSM Function".
If you don't see the icon because of the screen shifted
to vertical or horizontal direction, adjust "VERTICAL
POSITION" or "HORIZONTAL POSITION" until you
can, with using the "OSM Function".
2. Select "AUTO SETUP" at the OSM menu.(
In case that the screen area has a black back ground
like "MS-DOS PROMPT", the "AUTO SETUP" may not
work well.
3. Press "+" button. Then, the "AUTO SETUP" start.
During the "AUTO SETUP", "AUTO SETUP" is dis-
played on the screen and when it finishes, "AUTO
SETUP" disappear from the screen. "AUTO SETUP"
takes approx. 10 secs to finish.
In case that the monitor is used with an interlace signal,
one line in the top or bottom of the screen is lost as a
result of the "AUTO SETUP". In the case, adjust the
"VERTICAL POSITION" by the "OSM Adjustment".
5
5
™ Adjustment"

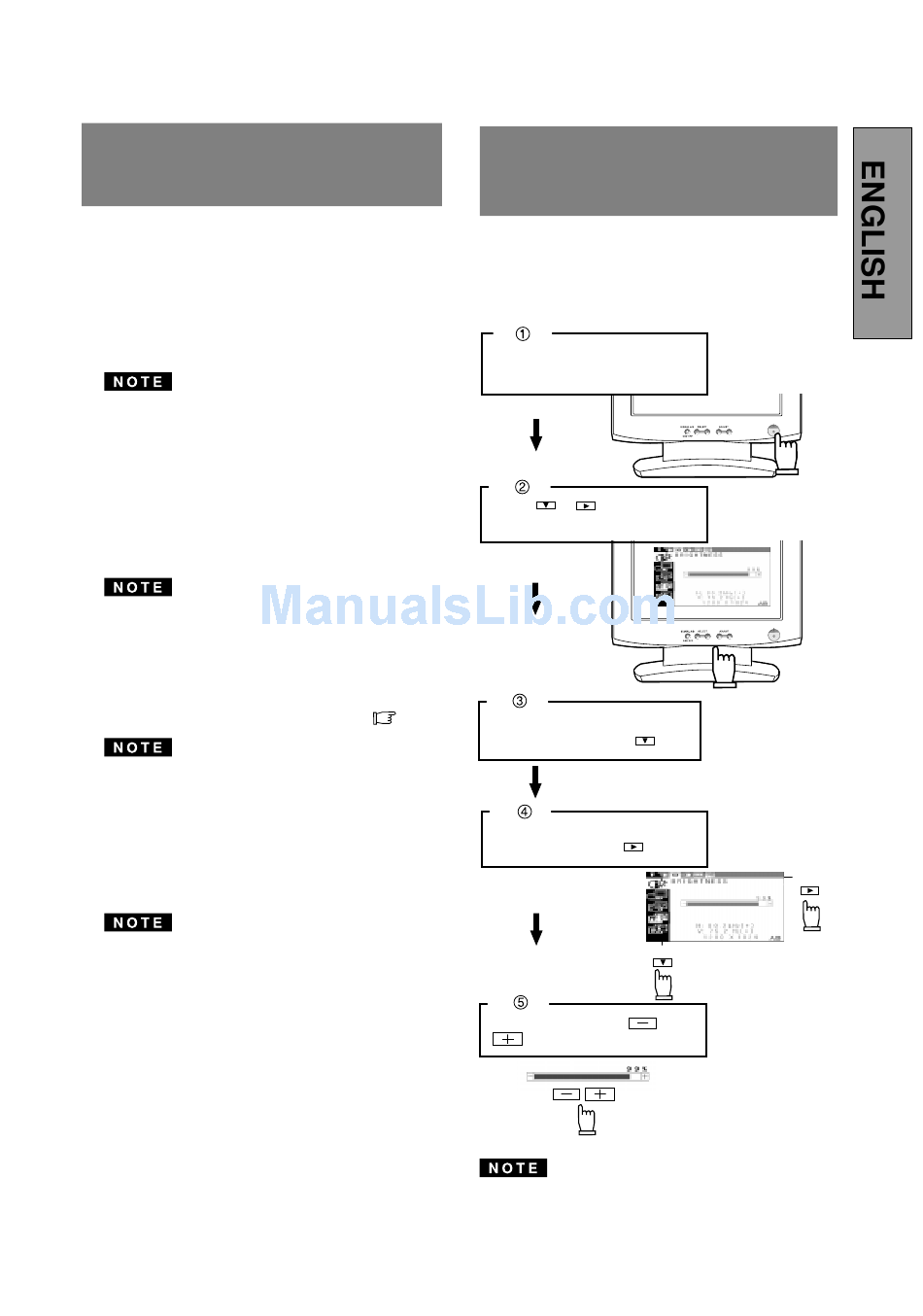

How to Adjust the Screen
The monitor has an OSM (On Screen Manager) function.
The following procedure shows how to adjust the screen
with using the OSM function.
Turn on the monitor.
Press
OSM screen.
P1-10)
Select the group icon on Main
Menu by pressing
Select the item icon on Sub
Menu by pressing
Adjust by pressing
If you don't press any button for approximately 30 sec-
onds, the OSM screen will disappear. Or press OSD OFF
button, then the OSM screen will disappear quickly.
- 1-9 -
OSM(On Screen Man-
ager) FUNCTIONS
or to display the
.
button.
Main Menu
or
button.
- +
- +
Sub Menu
