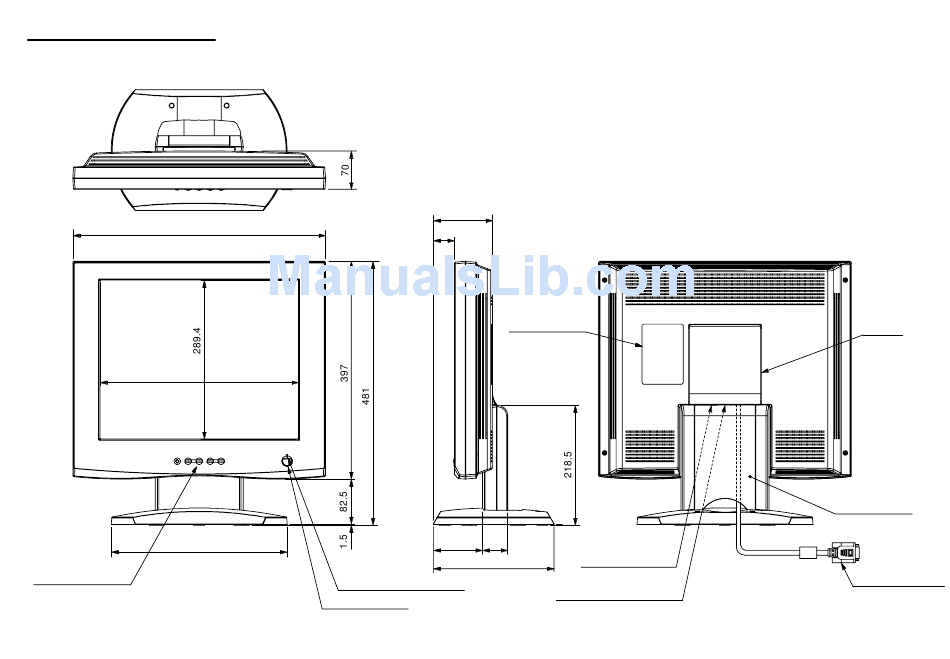

LCD1800 OUTLINE

460

361.2

320

CONTROL SWITCH

108.5

38.5

220

POWER-ON INDICATION

POWER SWITCH

Fig.-1-1

NOTE :

• CABINET COLOR : MIST WHITE #8510

• TILT ANGLE : +35˚ ~ -5˚

• SWIVEL

• WEIGHT

WITH STAND

WITHOUT STAND : APPROX 6.4 kg

RATING LABEL

DC POWER INLET

SIGNAL-B INPUT

CONNECTOR (DB9-15P)

SCALE : NTS

DIMENSION IN mm.

: ±45˚

: APPROX 8.2 kg

COVER

CABLE COVER

SIGNAL-A CABLE

(PIGTAIL TYPE)

Page 1 LCD1800 OUTLINE SCALE : NTS DIMENSION IN mm. NOTE : • CABINET COLOR : MIST WHITE #8510 • TILT ANGLE : +35˚ ~ -5˚ • SWIVEL : ±45˚ • WEIGHT WITH STAND : APPROX 8.2 kg WITHOUT STAND : APPROX 6.4 kg 108.5...
Page 2 LCD1800 OUTLINE SCALE : NTS DIMENSION IN mm. VESA SCREW M4 Fig.-1-2...
