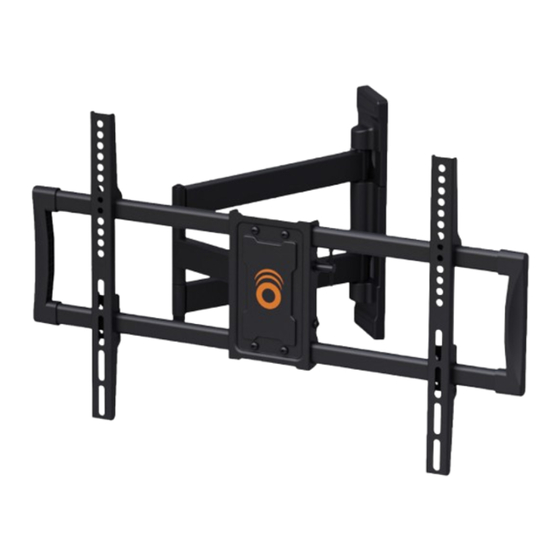

- Page 1 #YourGearUpgraded Full Motion TV Wall Mount Model EGCM2 LANGUAGES Visit: echogear.com INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly contact The Echogear Pros (See Back Page) or use of this product,... - Page 3 Concrete Block? DO NOT Unsure? install into drywall alone Contact Perfect! Perfect! The Echogear Pros Drywall will not hold the weight (See Back Page) and motion of your TV. Good to Go Good to Go Grab Your Tools Toy Surprise...
- Page 4 What’s in the Box ... what's in the boooox WARNING: DON'T FEED TO CHILDREN — This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
- Page 5 Concrete Anchor Kit: CAUTION: Do not use in drywall or wood qty. 1 qty. 1 Model EGHWLB. Sold online at ECHOGEAR.com or qty. 4 Amazon... or contact The Concrete Anchor Echogear Pros (see back page) Fischer UX10 x 60R Extension...
- Page 6 STEP 1 Attach the TV BRACKETS TO YOUR TV TV Screw Diameter STEP 1.1 Only one screw size fits your TV. NOTE: If your TV included inset spacers or adapters, use them UNDER the mount hardware. CAUTION: Verify adequate thread engagement with your screw , washer , spacer...
- Page 7 TV Screw Length STEP 1.2 NO SPACER SPACER NEEDED Long Screw Short Screw Washer TV Bracket TV Bracket Washer EXTRA SPACE Spacer Flat Back TVs Flat Back TVs Rounded or with Irregular Back TVs Extra Space Needed [TV brackets lay flat on your TV] [for deep inset holes or cable interference] [TV brackets NOT resting flat on your TV]...
- Page 8 Secure the TV Brackets to Your TV HIGH MOUNTING HOLES MOUNTING HOLES INSTALL UP/DOWN TV BRACKETS MUST BE LEVEL IF NEEDED...
- Page 9 No Spacer With Spacer Alternate Spacer setups...
- Page 10 STEP 2 I nstall the Wall Plate Determine Your Mount Location to Center Your TV in the Corner ForafkAFK For Wood Stud Installs: Your stud CENTER must be located the MIN and MAX. at or between STUD STUD STUD Standard (Diagonal) Minimum Distance Maximum Distance...
- Page 11 STEP 2.2-A WOOD STUD INSTALLATIONS, follow on PAGE 12 Min. Wood Stud Depth: nominal 4 in. (102 mm) CAUTION: Avoid potential personal injuries and property damage! ½ actual 3 in. (89 mm) Min. Wood Stud Width: Drywall covering the wall must not exceed 5/8 in. (16 mm). nominal 2 in.
-
Page 12: Wood Stud Installation
Wood Stud INSTALLATION Find a Stud Mark 2.2-A 2.3-A Use a stud finder ..and/or verify the edges with an awl or a small drill bit. - Page 13 Drill Secure Wall Plate 2.4-A 2.5-A 2 ¾ in. (7 cm) 7/32 in. (5.5 mm) CAUTION: Avoid potential personal injury or property damage! Lag screws MUST BE firmly tightened to prevent unwanted movement of the wall plate/arm Go to STEP 2.6 on PAGE 16...
- Page 14 CONCRETE INSTALLATION Mark Drill 2.2-B 2.3-B 3 in. (7.5 cm) 3/8 in. (10 mm)
- Page 15 ECHOGEAR.com or CAUTION: Avoid potential personal injury or Amazon... or contact property damage! Lag screws MUST BE firmly The Echogear Pros tightened to prevent unwanted movement of the wall (see back page) plate/arm Go to STEP 2.6 on PAGE 16...
- Page 16 Attach Covers Assemble Extensions...
- Page 17 Assemble End Caps...
- Page 18 STEP 3 Hang Your TV Open the Safety Locks IMPORTANT: Save the screws for STEP 3.3...
- Page 19 Hang Your TV HEAVY! You may need assistance with this step. IMPORTANT: TV brackets MUST be centered span the faceplate of arm...
- Page 20 Secure Your TV CAUTION: Avoid potential personal injury or property damage! Bracket clips and screws MUST be installed to the secure the TV in place. DO NOT OVERTIGHTEN.
-
Page 21: Cable Control
Cable Control Adjustments Tilt Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight, adjust tilt lever . Once your TV is in place, tighten the tilt lever to prevent unwanted movement. NOTE: If your TV won't stay in place with tilt lever , tighten the screw... - Page 22 Level REMOVE YOUR TV HEAVY! You may need assistance with this step. Righty Lefty Level Loosey Tighty...
- Page 23 placement chart - - based on TV Width NOTE: WIDTHS LESS than Width 31 in. (78 cm) will create a gap 45 in. (114 cm) 1.5 in. (4 cm) 29.5 in. (75 cm) Measure the between the TV and wall. 46 in.
- Page 24 ©2022 Legrand AV Inc. All Rights Reserved. ECHOGEAR is a Legrand AV Inc. brand and a registered trademark owned by Legrand. Legrand AV Inc. • 6436 City West Parkway • Eden Prairie, MN 55344 USA...
