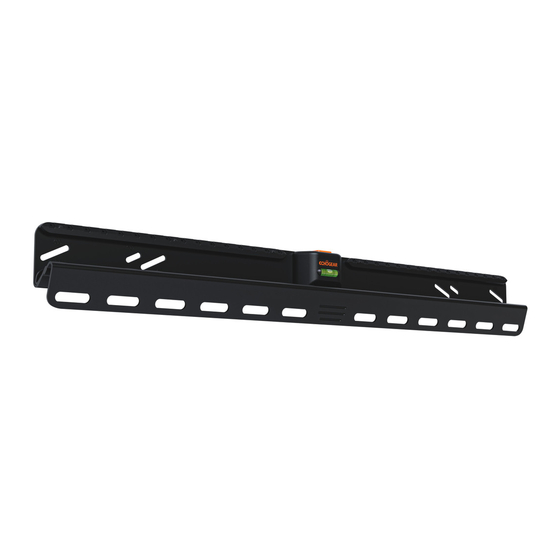

- Page 1 #YourGearUpgraded EGLD1 Drywall TV Mount Instruction Manual Texto en español, página 24 Texte français page 27 Deutscher Text Seiten 30 Nederlandse tekst op pagina 33 Svensk text sida 36 日本語は 39 ページ Русский текст: стр. 45...
- Page 2 DO NOT install into Concrete kit is plaster lath walls & Unsure? NOT INCLUDED. Wood Lath Metal Lath Call The Echogear Pros for kit #CMK3. Contact The Per fect! Per fect! Per fect! Echogear Pros (see back page) Rough Plaster Surface...
- Page 3 Also check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact The Echogear Pros. MORE STUFF CAUTION:...
- Page 4 DON'T FEED TO CHILDREN — This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact The Echogear Pros. Never use damaged parts! NOTE: Not all hardware included will be used.
- Page 5 NOTE: Anchors are NOT INCLUDED. to using this product. CAUTION: FOR STEP 2A ONLY: Contact The Echogear Pros to inquire about anchor kit #CMK3. Do not use in concrete or plaster lath. & T OY SURPRISE...
- Page 6 Attach TV Bracket to Your TV 1 .1 Determine TV Screw Length Select TV Screw Diameter NOTE: Only one screw size fits your TV. CAUTION: • Flat Back TV • Rounded Back TV Verify adequate thread • Flat Back TV With engagement with your screw/ spacers...
- Page 7 1 .3 Attach the TV Bracket • Flat Back TV • Rounded Back TV • Extra Space Needed Spacer Options...
- Page 8 Attach Wall Plate to Wall DRYWALL Follow the [ TVs up to 100 lbs. (45.3 kg)] corresponding step for your CAUTION: installation DO NOT install into plaster lath walls & method. STEP on PAGE 10 IMPORTANT: You must CAUTION: Avoid potential personal determine your injuries and property damage! wall construction...
- Page 9 WOOD STUD SOLID CONCRETE [ TVs up to 135 lbs. CONCRETE BLOCK (61.2 kg)] [TVs up to 135 lbs. (61.2 kg)] STEP STEP on PAGE 12 on PAGE 14 CAUTION: CAUTION: Avoid potential personal Avoid potential personal injuries and property damage! injuries and property damage! Two stud centers must be located for The mount must be installed directly onto...
-
Page 10: Installation
Your TV MUST be installed centered If ANY of the 32 nails encounter excessive resistance (metal object) - on the wall plate STOP and call The Echogear Pros. DO NOT install into plaster lath walls DO NOT reuse nails after removing. DO NOT use store-bought nails. -
Page 11: Important: Caution
(qty. 30) IMPORTANT: Alternate installing the remaining thirty (30) nails from side to side. CAUTION: Avoid potential personal injuries and property damage! Thirty-two (32) nails total, must be used in wall plate Go to STEP 3 on PAGE 16. -
Page 12: Wood Stud Installation
WOOD STUD INSTALLATION [ TVs up to 135 lbs. (61.2 kg)] 2B . 1 2B. 2 Verify Your Wall Attach the Wall Plate Min. 3 ½ in. (89 mm) Min. 1 ½ in. (38 mm) Min. Max. 16 in. 5/8 in. (406 mm) (16 mm) CAUTION:... - Page 13 2 ½ in. (63 mm) 1/8 in. (3.2 mm) CAUTION: Improper use could reduce the holding power of screws . DO NOT over-tighten the screws. Go to STEP 3 on PAGE 16.
- Page 14 SOLID CONCRETE CONCRETE BLOCK INSTALLATION Concrete Installation Kit is required [NOT INCLUDED]. kit #CMK3 Contact The Echogear Pros to inquire about 2C .1 2C . 2 Verify Your Wall Attach the Wall Plate Min. 8 in. (203 mm) Min. 8 in.
- Page 15 [TVs up to 135 lbs. (61.3 kg)] 2¾ in. (70 mm) Flush 5/16 in. (8 mm) CAUTION: Improper use IMPORTANT: Never drill could reduce the holding power of screws . DO NOT over- into the mortar between blocks. tighten the screws.
- Page 16 Let’s Hang 3. 2 Unlock the Wall Plate Hang Your TV HEAVY! You may need assistance with this step. IMPORTANT: DO NOT lower TV straight down onto wall plate -- this will engage the lock. Safety latch must be released for proper installation (See STEP 3.1). Side View...
- Page 17 Lock the Wall Plate CAUTION: Avoid potential personal injury or property damage! The locking mechanism must be locked, so the TV is securely fastened to the wall plate Button Side View Side View Side View...
- Page 18 Let’s hang some more 3. 4 No Tilt Feature (OPTIONAL) 10 09 For non-metal back TVs, use adhesive disc For non-metal 10 09 back TVs, use adhesive disc...
- Page 19 Power it up CAUTION: Avoid potential personal injury or property damage! DO NOT force open your TV when adding cables. STOP lifting the bottom outward when you feel resistance.
- Page 20 Adjustments SIDE-TO-SIDE SHIFT CAUTION: Avoid potential personal injury or property damage! FOR DRYWALL INSTALLATIONS: DO NOT slide the TV side-to-side. Slide the TV side to side to adjust positioning. NOTE: Safety stops prevent over-shifting. Make sure your TV is locked to wall plate (STEP 3.3).
- Page 21 Even MOre Adjustments LEVEL [Wood Stud and Concrete Installations] 1. Remove the TV. Lefty- loosey 2. Loosen both screws 3. Adjust the level. 4. Retighten both screws Lefty- loosey Righty- tighty Righty- tighty...
- Page 22 To Remove Your TV HEAVY! You may need assistance with this step. 1. Disconnect your cables. 2. Unlock wall plate (STEP 3.1). 3. Lift the TV up and away from wall plate CAUTION: Avoid potential personal injuries and property damage! DO NOT reuse this product after removing wall plate from the wall.
- Page 23 Digits TV INTERFACE 24.61in 625mm 1.54in 2.95in 39.1mm 75mm WALL PLATE TOP VIEW - TV MOUNTED WALL IS ON TOP 17.72in 450mm 2.28in 16.00in 57.9mm 406.4mm 23.62in 600mm SIMULATED 60" FLAT SCREEN TV 24.00in 609.6mm FULLY ASSEMBLED MOUNT TOP VIEW SIDE VIEW WALL IS ON TOP 25.50in...
- Page 24 ©2020 Legrand AV Inc. All Rights Reserved. ECHOGEAR is a Legrand AV Inc. brand and a registered trademark owned by Legrand. Made in China. Legrand AV Inc. • 6436 City West Parkway • Eden Prairie, MN 55344 USA...
