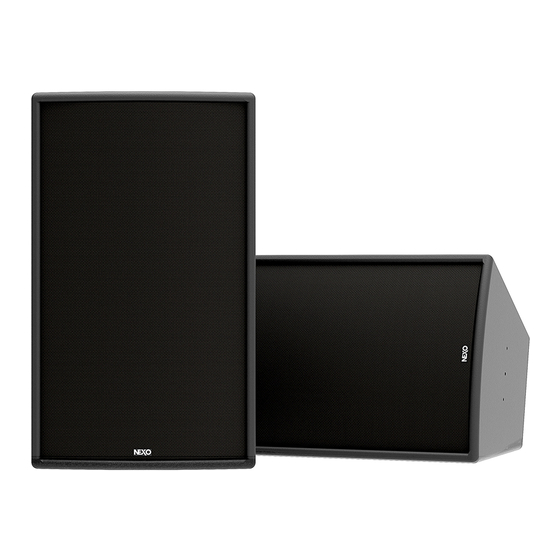

Summary of Contents for Nexo ePS10

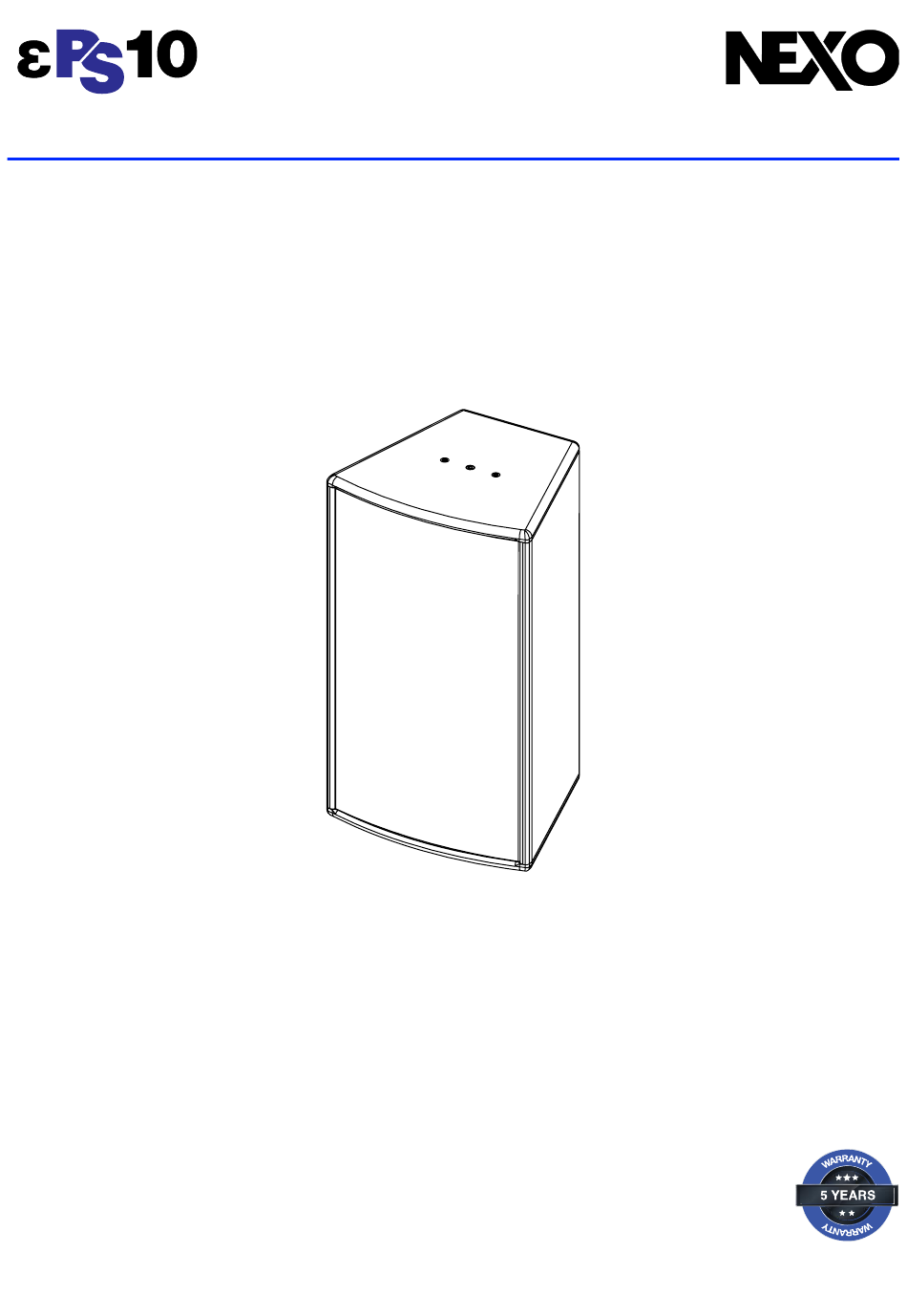

  • Page 1 DP6153-01-DI ePS10 User manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 12 MAINTENANCE ________________________________________________________________________ 13 TECHNICAL SPECIFICATIONS ___________________________________________________________ 15 USER NOTES _________________________________________________________________________ 16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Equipment

    EQUIPMENT EQUIPMENT On each side of the cabinet, two M6 with 80 mm pitch plus one M10 fittings will connect the ePS10 to accessories (VNI-HCPL535, VNU-BUMP, VNU-HBRK535, or eye-bolts). The back of the speaker is fitted with 3x M6 (70mm pitch) to connect wallmount in both vertical and horizontal positions (VNI-WM02).

  • Page 5: Description

    3.31 mm (12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm. → To wire ePS10, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw terminals. Place the IPCOV.

  • Page 6: Preset

    PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the ePS10, the following setups are available: • ePS10 MAIN PA, 60-120kHz • ePS10 MAIN PA, 85-120kHz. • ePS10 MAIN PA, 120-120kHz. ePS10 ePS10 + eLS600 Page 6 / 18...

  • Page 7: Hf Directivity

    HF DIRECTIVITY HF DIRECTIVITY → The ePS10 speaker can be used in horizontal or vertical position. → t’s easy to change the HF dispersion to deal with every request. Remove the 4 screws that hold the horn. Remove it. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille.

  • Page 8: Accessories

    WARNINGS All ePS accessories are specifically rated in agreement with structural computations. Never use other accessories when assembling ePS10 cabinets than the ones provided by NEXO: NEXO will decline responsibility if any component is purchased from different supplier. PROHIBITED: ePS10 below ePS10 or ePS10 below eLS600 without dedicated accessory VNU-BUMP LiftBar, can be used with VNI-WMADAPT.
  • Page 9 2 guides. Tight with the fasteners provided with VNI-CLADAPT. Refer to the Product Data Sheet VNU-PLADAPT Pole adapter Place VNU-PLADAPT on VNI-HBRK535, use only fasteners provided. Tight properly. Refer to the Product Data Sheet Page 9 / 18 ePS10...
  • Page 10 ACCESSORIES VNI-WM330 Wallmount, usable with: VNI-WMADAPT / VNU-BUMP VNU-HBRK535 ePS10 / BUMP / WMADAPT Place the assembly on VNI-WM330. Tight with the fasteners provided with VNI-WM330. Refer to the Product Data Sheet ePS10 / HBRK535 Place the assembly on VNI-WM330. Tight with the fasteners provided with VNI-WM330.
  • Page 11 ACCESSORIES VNI-WM02 Wall mount adapter 25kg max Remove 2 of the 3 screws on the back. Screw speaker plate to ePS10 (use only screws provided with ePS10). Place the speaker holder with ePS10 into wall bracket. Fix by tightening bolted assembly.

  • Page 12: Array Eq

    ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): e S10 rray ad usting Frequency H e S10 rray ad usting Frequency H Page 12 / 18 ePS10...

  • Page 13: Maintenance

    MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Remove the 4 screws to access the LF driver. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille.
  • Page 14 Cabinet Black 05NH12ND1.0R/K HF diaphragm (with screws) H 10” complete with screws 05HPB10N Recone Kit 10” with screws 05HPB10NR/K 05LOGNEXO3 Logo NEXO 05VXTSTHC1012 HEADLESS Screw M10x12 Black (x10) 05VXTCFX616N VXFX 6x16 Black (x10) 05PASF-DG9E1 Grommet DG11 Page 14 / 18...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS WITH NEXO ELECTRONICS Model ePS10 60 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 130dB Peak Operating voltage 30Vrms Vertical Dispersion +25°/-30° Horizontal Dispersion: 50° to 100° asymmetrical Crossover Frequency 60 Hz, 85 Hz, 120 Hz...

  • Page 16: User Notes

    USER NOTES USER NOTES Page 16 / 18 ePS10...
  • Page 17 USER NOTES Page 17 / 18 ePS10...
  • Page 18 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 18 / 18 ePS10...
