Summary of Contents for Nexo ePS8-EN54

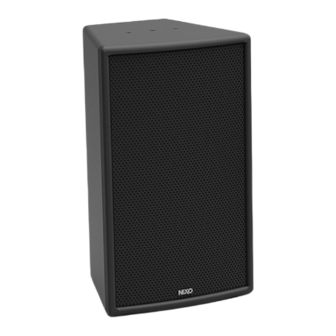

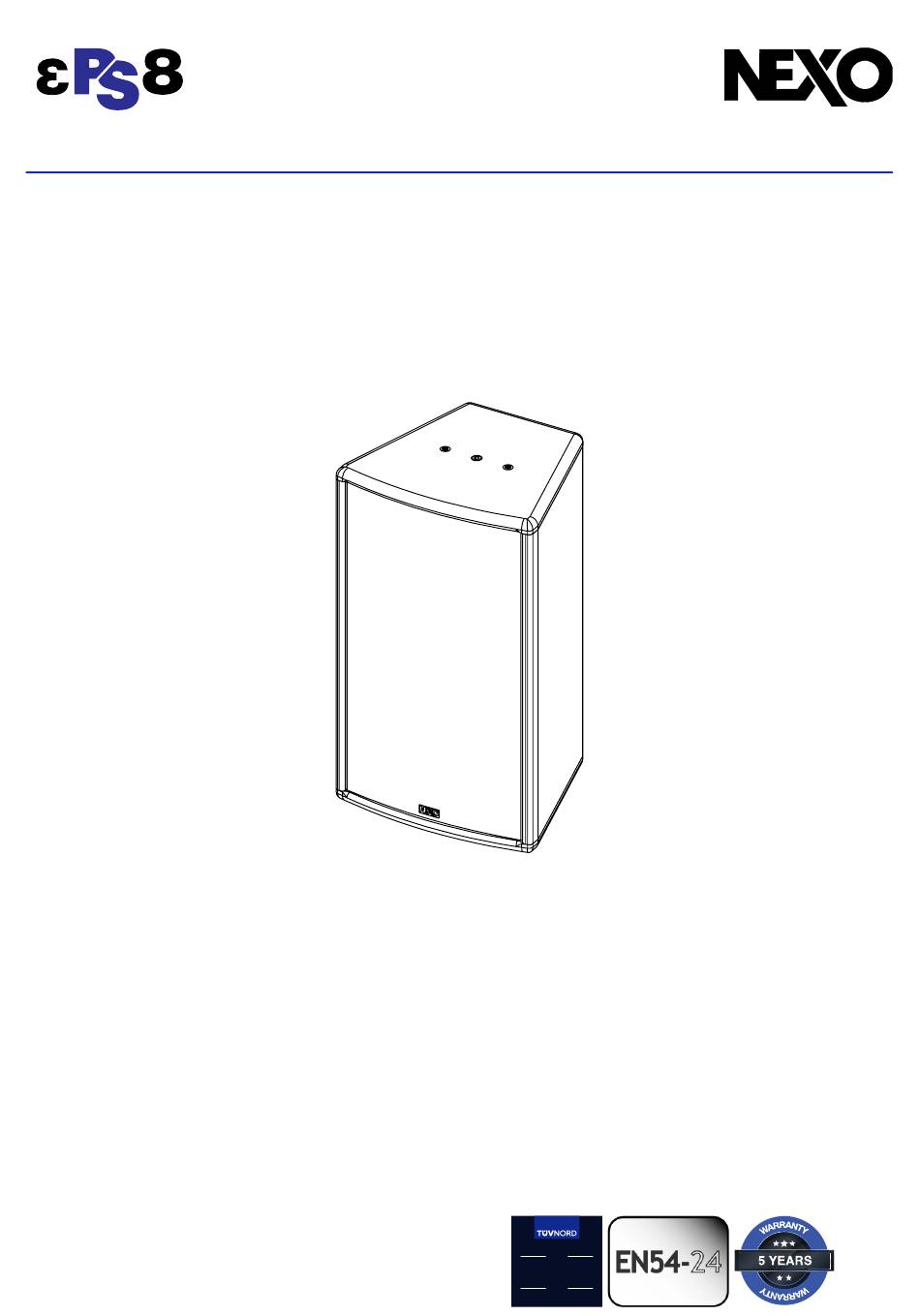

- Page 1 DP7302-01-DI ePS8-EN54 User manual IP55...
-
Page 2: Table Of Contents
EQUIPMENT ___________________________________________________________________________ 5 DESCRIPTION __________________________________________________________________________ 6 PRESET _______________________________________________________________________________ 7 HF DIRECTIVITY ________________________________________________________________________ 8 CROSSOVER FREQUENCY _______________________________________________________________ 8 ACCESSORIES _________________________________________________________________________ 9 ARRAY EQ ____________________________________________________________________________ 14 MAINTENANCE ________________________________________________________________________ 15 TECHNICAL SPECIFICATIONS ___________________________________________________________ 17 USER NOTES _________________________________________________________________________ 19 Page 2 / 20 ePS8-EN54... -
Page 3: Compliance
EN54-24 by AFNOR Certification Parc du Pré de la Dame Jeanne BP5 - FR 60128 PLAILLY – France Tel : +33 3 44 99 00 70 – Fax : +33 3 44 99 00 30 – email : info@nexo.fr – nexo-sa.com EN54-24 :2008... -
Page 4: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 5: Equipment
EQUIPMENT EQUIPMENT On each side of the cabinet, two M6 with 80 mm pitch plus one M10 fittings will connect the ePS8-EN54 to accessories (VNI-HCPL425, VNI-VCPL425, VNU-BUMP, VNU-HBRK425, or eye-bolts). The back of the speaker is fitted with 3x M6 (70mm pitch) to connect wallmount in both vertical and horizontal positions (VNI-WM01, VNI-WM02). -
Page 6: Description
3.31 mm (12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm. → To wire ePS8-EN54, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw terminals. Place the IPCOV. -
Page 7: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the ePS8-EN54, the following setups are available: • ePS8 MAIN PA, 70-20kHz. • ePS8 MAIN PA, 85-20kHz. • ePS8 MAIN PA, 120-20kHz. ePS8-EN54 ePS8-EN54 + eLS400 ePS8-EN54 + eLS600... -
Page 8: Hf Directivity
HF DIRECTIVITY HF DIRECTIVITY → The ePS8-EN54 speaker can be used in horizontal or vertical position. → I ’ l wi h Remove the 4 screws that hold the horn. Remove it. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille. -
Page 9: Accessories
WARNINGS All ePS accessories are specifically rated in agreement with structural computations. Never use other accessories when assembling ePS8-EN54 cabinets than the ones provided by NEXO: NEXO will decline responsibility if any component is purchased from different supplier. PROHIBITED: ePS8-EN54 below ePS8-EN54 or ePS8-EN54 below eLS400 or eLS600 without dedicated accessory VNU-BUMP LiftBar, can be used with VNI-WMADAPT. - Page 10 VNU-HBRK425 Horizontal Cradle, usable with: VNI-CLADAPT. VNI-WM280. VNU-PLADAPT. Remove the M10 inserts from each side. Place HBRK425 on ePS8-EN54, use only fasteners provided. Tight properly. Refer to the Product Data Sheet VNI-WMADAPT Wall mount adapter Place VNI-WMADAPT on VNU-BUMP, use only fasteners provided.
- Page 11 Refer to the Product Data Sheet VNI-WM280 Wallmount, usable with: VNI-WMADAPT / VNU-BUMP VNU-HBRK425 ePS8-EN54 / BUMP / WMADAPT Place the assembly on VNI-WM280. Tight with the fasteners provided with VNI-WM280. Refer to the Product Data Sheet ePS8-EN54 / HBRK425 Place the assembly on VNI-WM280.
- Page 12 ACCESSORIES VNI-HCPL425 Coupler ePS8 under horizontal eLS400 Refer to the Product Data Sheet VNI-VCPL425 Coupler ePS8 under vertical eLS600 Refer to the Product Data Sheet Page 12 / 20 ePS8-EN54...
- Page 13 ACCESSORIES VNI-WM01 Wall mount adapter 15kg max Remove 2 of the 3 screws on the back. Screw speaker plate to ePS8-EN54 (use only screws provided with ePS8-EN54). Place the speaker holder with ePS8-EN54 into wall bracket. Fix by tightening bolted assembly.
-
Page 14: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 14 / 20 ePS8-EN54... -
Page 15: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Remove the 4 screws to access the LF driver. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille. - Page 16 MAINTENANCE Spare parts MARK QUANTITY REFERENCE DESIGNATION 05EPS8EN54-UA ePS8-EN54 Complete grille Black 05EPS8EN54-UAPW ePS8-EN54 Complete grille White 05EBEPS8 ePS8 Cabinet Black 05EBEPS8-PW ePS8 Cabinet White 05NH14-16R/K HF diaphragm ” c 05HPB-8ND ” 05N8ND1.0R/K 05LOGNEXO3 Logo NEXO 05VXTSTHC1012N HEADLESS Screw M10x12 Black (x10)
-
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS WITH NEXO ELECTRONICS Model ePS8-EN54 80 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 128 dB Peak Operating voltage 29 Vrms Vertical Dispersion +25°/-30° Horizontal Dispersion: 50° to 100° asymmetrical Crossover Frequency 80 HZ, 85 Hz, 120 Hz... - Page 18 Reference axis is the line orthogonal to the grill, intersecting the grill in the middle. Reference plane is aligned on cabinet front grill. Horizontal plan is perpendicular to the reference plane in the width direction. Page 18 / 20 ePS8-EN54...
-
Page 19: User Notes
USER NOTES USER NOTES Page 19 / 20 ePS8-EN54... - Page 20 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr c ’ c i i é nexo-sa.com F-60128 PLAILLY Page 20 / 20 ePS8-EN54...
